Lavoce SAF184.05

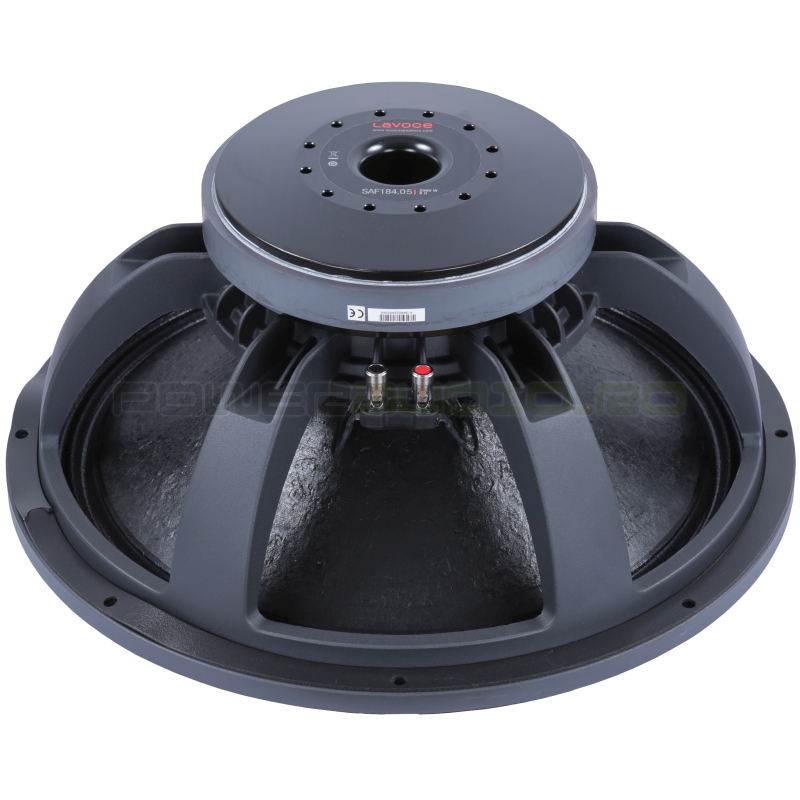

Lavoce SAF184.05 - 18" 1000W 8 Ohm Loudspeaker

Key features

- 4 INCH COPPER VOICE COIL- 96 dB/SPL SENSITIVITY- 2000 WATT PROGRAM POWER HANDLING- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- OPTIMIZED COOLING SYSTEM- DOUBLE SILICON SPIDER

Technical specifications

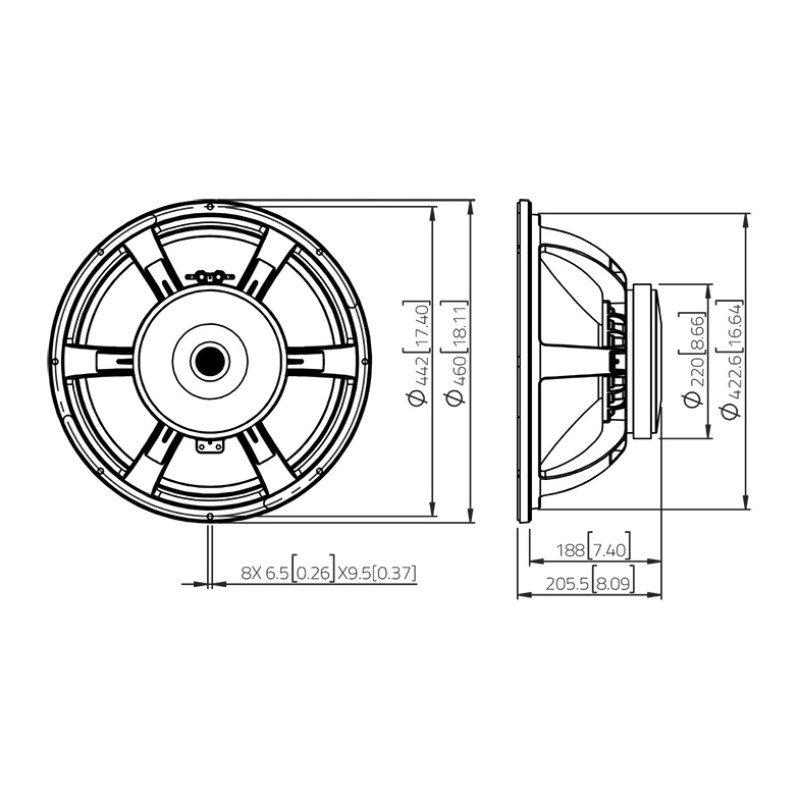

    Nominal Diameter: 460 mm (18in)
    Impedance: 8 Ohm
    Minimum Impedance: 6.4 Ohm
    AES Power: 1000 W
    Program Power: 2000 W

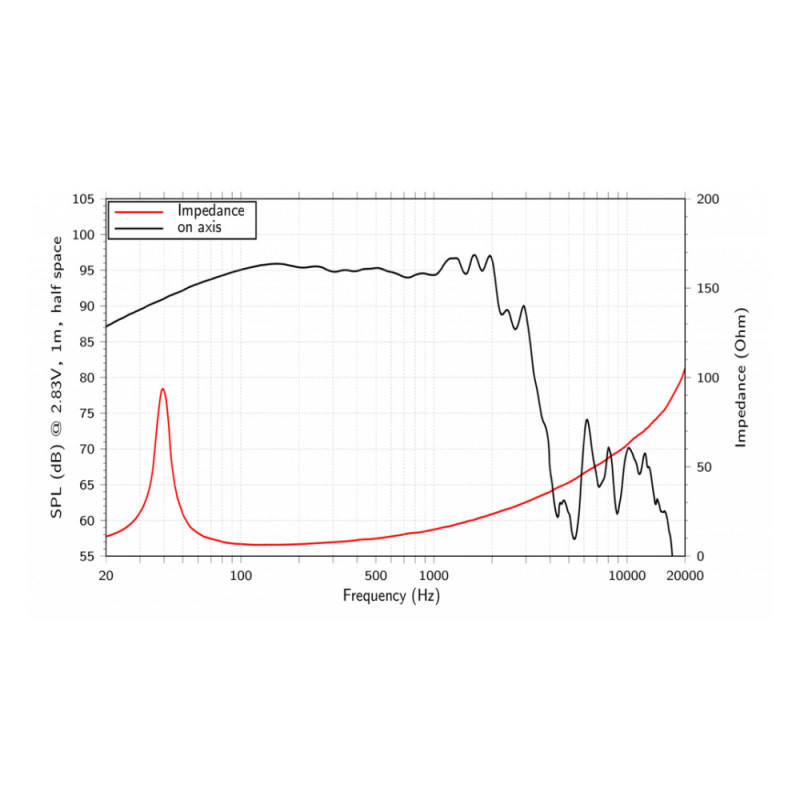

    Sensitivity: 96 dB
    Frequency Range: 30 - 2500 Hz
    Voice Coil Material: Copper
    Voice Coil Former: Glass Fiber
    Voice Coil Depth: 20.3 mm (0.8in)
    Magnetic Gap Depth: 10 mm (0.39in)
    Cone Material: Water Resistant Treated Paper + Water Proof Both Sides Treatment
    Surround Material: Polycotton
    Chassis Material: Aluminium
    Magnet Material: Ferrite
    Magnet Dims: 220 x 110 x 25 mm
    Driver Displacement Volume: 7.42 l (0.262ft3)
    Recommended Enclosure: 178.2 l (7.0ft3)
    Recommended Tuning: 45 Hz

Thiele and Small parameters:

    DC Resistance (Re) - 5.4 Ohm
    Resonance (Fs) - 39 Hz
    Moving Mass - System (Mms) - 217 g
    Compliance (Cms) - 0.078 mm/N
    Force Factor (BL) - 25.4 Tm
    Mechanical Q (Qms) - 5.9
    Electrical Q (Qes) - 0.45
    Total Q (Qts) - 0.41
    Compliance Equivalent Volume (Vas) - 141.2 L
    Voice Coil Inductance (Le) - 1.66 mH
    Diaphragm Area (Sd) - 1134 cm2
    Reference Efficiency (Eta Zero) - 1.78 %
    Efficiency Bandwidth Product (EBP) - 87
    Maximum Linear Excursion (Xmax) - 7.7 mm
    Maximum Mechanical Excursion (Xmech) - 13.2 mm

Shipping Information

    Net weight: 12.3 kg (27.1lb)
    Multipack size (WxDxH): 520 x 520 x 253 mm (20.5 x 20.5 x 9.9in)
    Multipack weight: 14 kg (30.9lb)
