Fane CD.131

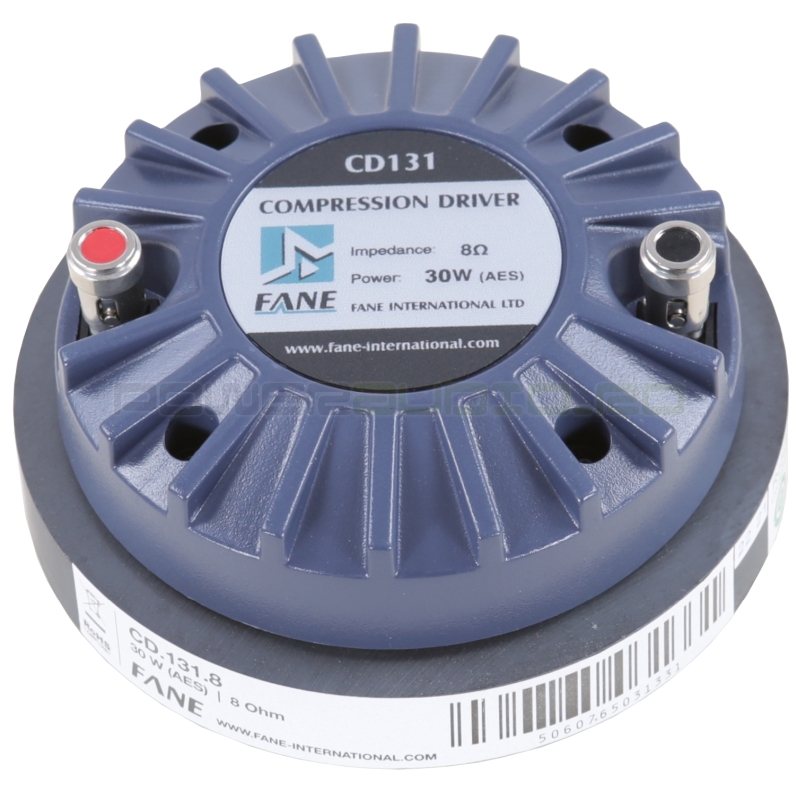

Fane CD.131 (CD131) 1" 30W Bolt-On Compression Driver

The CD131 is a 1 inch (25.4mm) small format diaphragm compression driver. The 1 inch (25.4mm) exit is an industry standard. The CD-131 combines high BL and a very lightweight diaphragm assembly, producing high output that offers extended bandwidth and a well defined frequency response to 18 kHz. The driver has a rated low frequency response limit of 2 kHz and has a smooth response throughout its bandwidth. The CD131 features an industry standard bolt on mounting system that is ideally matched to commercially available bolt on horns.

    1" Industry standard exit.
    1.375" / 34.4 mm Aluminium voice Coil.
    Titanium diaphragm.
    30 W (AES).

ELECTRO ACOUSTIC SPECIFICATIONS

• Sound Channel / Throat Size 1" / 25.4 mm
• Rated Impedance 8 Ohms
• DC Resistance 6.43 Ohms
• Minimum Impedence 7.5 @ 3 kHz
• Le (@ 1kHz) 0.01 mH
• A.E.S Power handling 30W
• Continuous Pink Noise 40 w (above 2 kHz)
• Continuous Program 80 w (above 2 kHz)
• Sensitivity (1 W / 1 m) 106 dB
• Frequency Range 2 kHz - 18 kHz
• Recommended Crossover Frequency above 2 kHz
• Voice Coil Diameter 1.375' / 34.4 mm
• Flux Density 1.25 Tesla
• BL Factor 3.39 Tesla


MOUNTING / SHIPPING INFORMATION


• Overall Diameter 3.54" / 90 mm
• Depth 1.73" / 44 mm
• Weight 2 lb / 0.91 kg
• Shipping Weight 2.16 lb / 0.98 kg
• Packing Carton Dimensions 95 x 95 x 71 mm

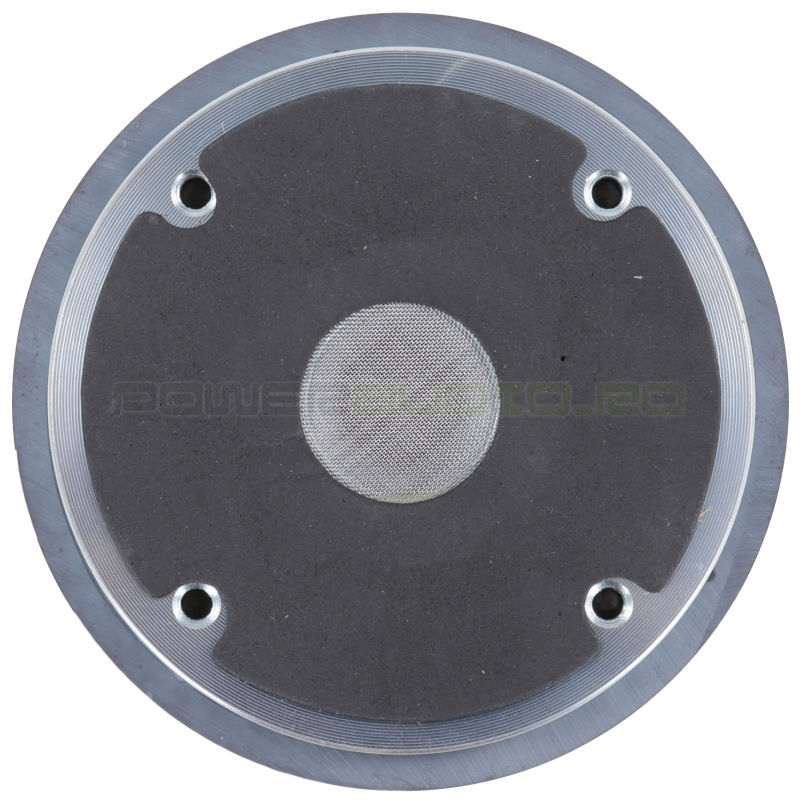

• Screw Fit
