Eminence APT150

Eminence APT150 V2 Supertweeter with Horn (APT-150 Mk2)

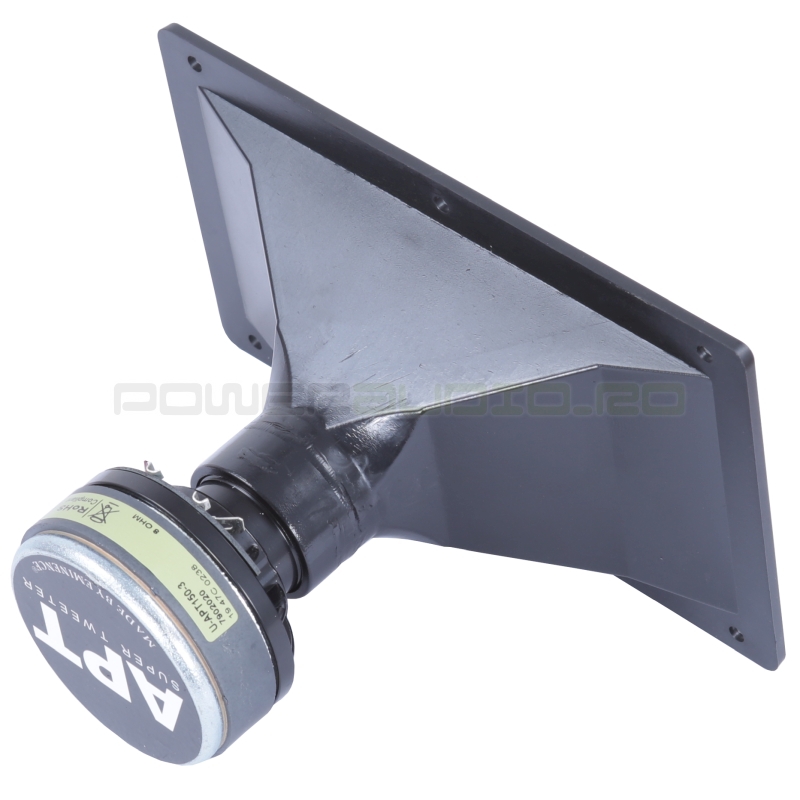

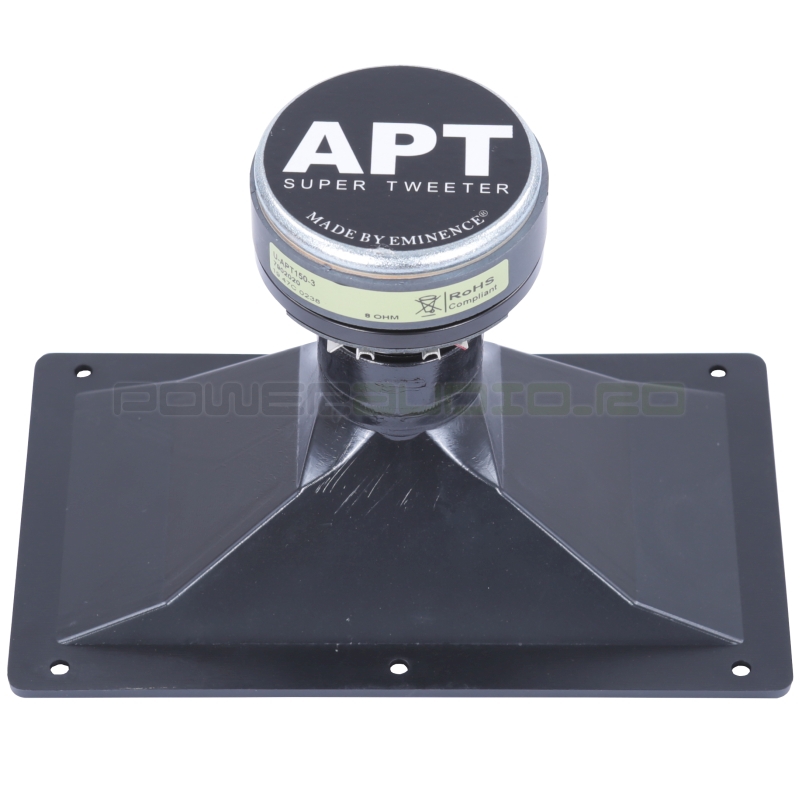

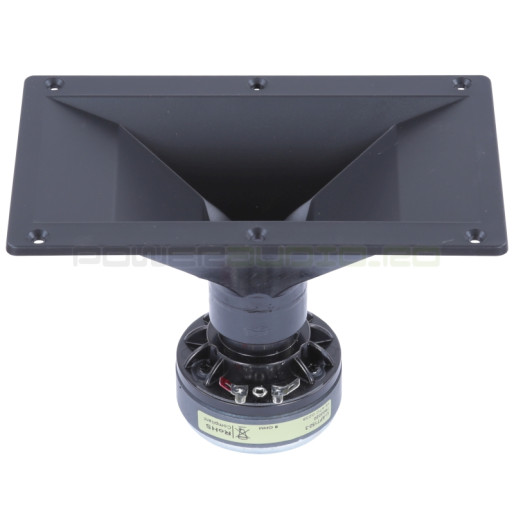

Eminence's APT50 Mk3 compression driver pre-mounted on a 100 x 50 degree dispersion horn. The compression driver is fitted with an external 1 3/8" male thread, mating with the internal female thread of the horn.

Specification:

    Type: Constant Directivity
    Throat Size 1", 25.4mm
    Dispersion 100 x 50
    Power Rating 35W (AES)
    Nominal impedance 8 Ohms
    Minimum impedance 7.7 Ohms @ 6 kHz
    Sensitivity 102.4 dB
    Resonance 2.7 kHz
    Usable Frequency Range 3500 Hz - 20 kHz
    Low Rec. Crossover 3.5 kH
    H x W x D (in) 4.5" x 7.6" x 5.1"
    H x W x D (mm) 114.3 x 193 x 129.5mm
    Cut Out 6.7 x 3.4 , 170 x 86 mm
    Weight 1.9lbs, 0.86kg Material ABS
