Oberton D72CT
  • Oberton D72CT
  • Oberton D72CT

Cere mai multe informatii despre Oberton D72CT la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 860,00 Lei
Fără TVA: 722,69 Lei
Dep. Ext. - livrare 10-14 zile
Producător: Oberton
Cod produs: Oberton D72CT
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: oberton oberton d72ct driver oberton driver 1.5

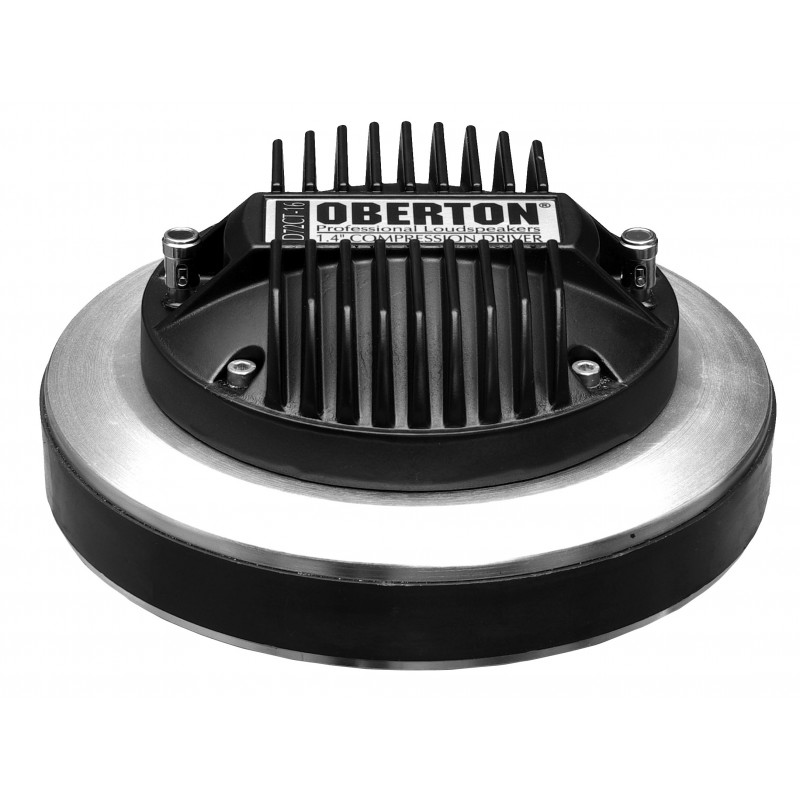

The D72CT is 1.4” high frequency compression driver which features a cotton composite dome and high damped vented suspension, providing high output with very low distortion and very good response from 700 to 18000 Hz. This new dome material provides excellent vocal reproduction with very warm and clean sounding. The voice coil assembly is easily fielded replaceable without soldering. The driver is designed for application in high level professional sound equipment.



SPECIFICATIONS

Throat diameter
Nominal impedance
Minimum impedance
D.C. resistance
Power capacity (1-20 kHz)
Program Power Capacity (1-20 kHz)
Sensitivity (1-10 kHz)
Frequency range
Recommended crossover
Voice coil diameter
Flux density

36 mm (1.4 in.)
16 Ohms
11.7 Ohms
10 Ohms
100 W
200 W
109.5 dB
0,5 - 18 kHz
1 kHz or higher 12 dB/oct.min
72 mm (2,85 in.)
1,85 T

MATERIALS OF CONSTRUCTON

Diaphragm
Voice coil material
Voice coil former

Cotton composite
CCAW
Kapton™


Positive voltage on red terminal moves diaphragm toward the phasing plug

MOUNTING INFORMATION

Overall diameter
Depth
Mounting
Net weight

180 mm
81.5 mm
4 x M6 on 101,6 mm (4 in.)diameter
6.9 kg
