Oberton D3644
  • Oberton D3644
  • Oberton D3644
  • Oberton D3644
  • Oberton D3644

Cere mai multe informatii despre Oberton D3644 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 430,00 Lei
Fără TVA: 361,34 Lei
la comanda - 6 Saptamani
Producător: Oberton
Cod produs: Oberton D3644
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: Oberton D3644 driver profesional driver oberton driver driver 1.4 inch driver 1.4" driver ferita driver prindere suruburi driver oberton professional

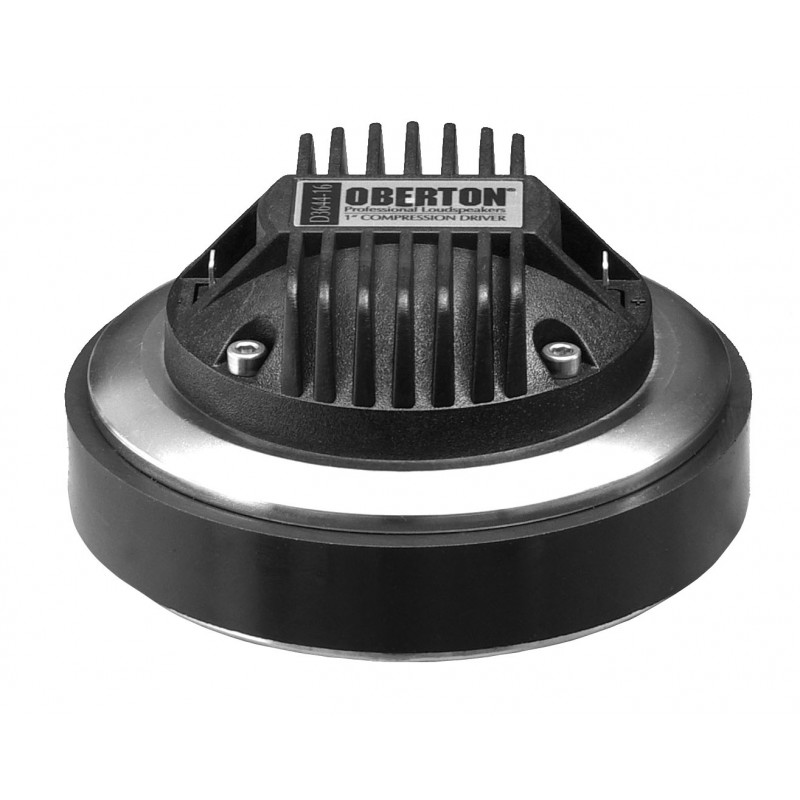

The D3644 is 1.4” high frequency compression driver, improved version of D3645, with reduced weight. It is designed for a wide variety of applications including budged projects requiring 1.4" driver of high quality. The new phasing plug design, copper inductance ring and new dome ensure low distortion at the high sound levels. The D3644 offers all the benefits of the comperssion driver in a 1.4" format, but at much reduced cost.



SPECIFICATION

MATERIALS OF CONSTRUCTON

Throat diameter

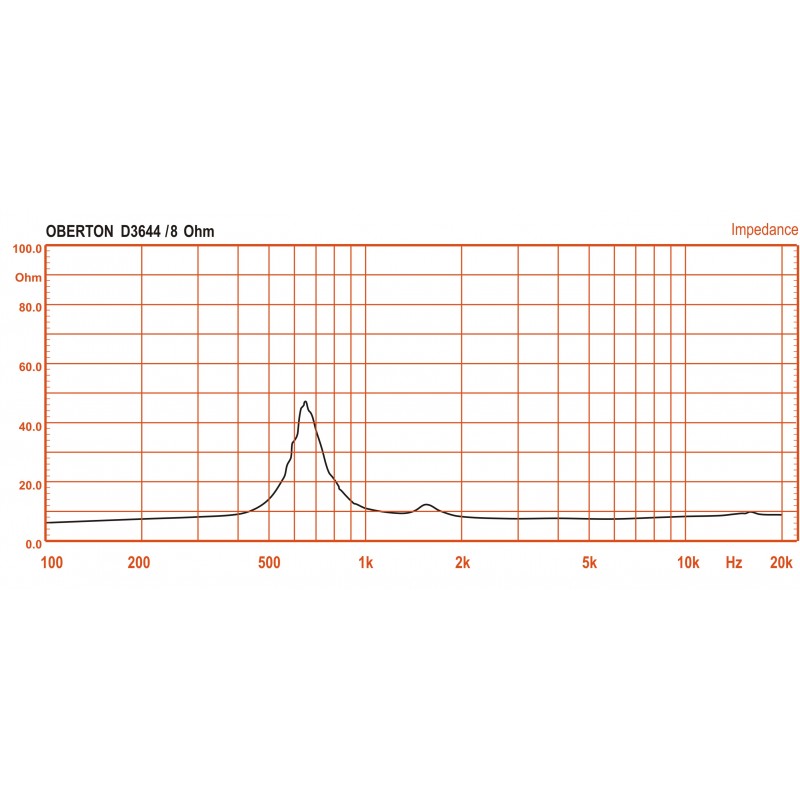

Nominal impedance
Minimum impedance
D.C. resistance
Power capacity (2-20 kHz)
Program Power Capacity  (2-20 kHz)

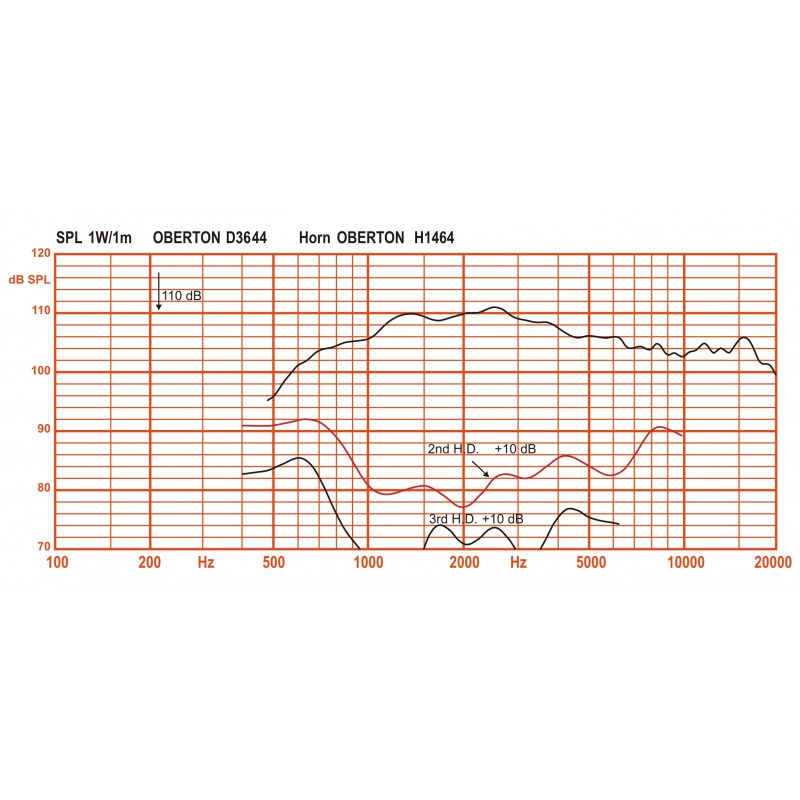

Sensitivity (1-5 kHz)
Frequency range
Recommended crossover
Voice coil diameter
Flux density

36 mm (1.4 in.)
8/16 Ohms
7.46/12.45 Ohms
5.75/10.48 Ohms
40 W
80 W
109 dB
0.8 - 20 kHz
1.2 kHz or higher 12 dB/oct.min
44 mm (1.75 in.)
1.75 T

Diaphragm
Voice coil material
Voice coil former

sandwich polyester
Aluminium
Kapton™

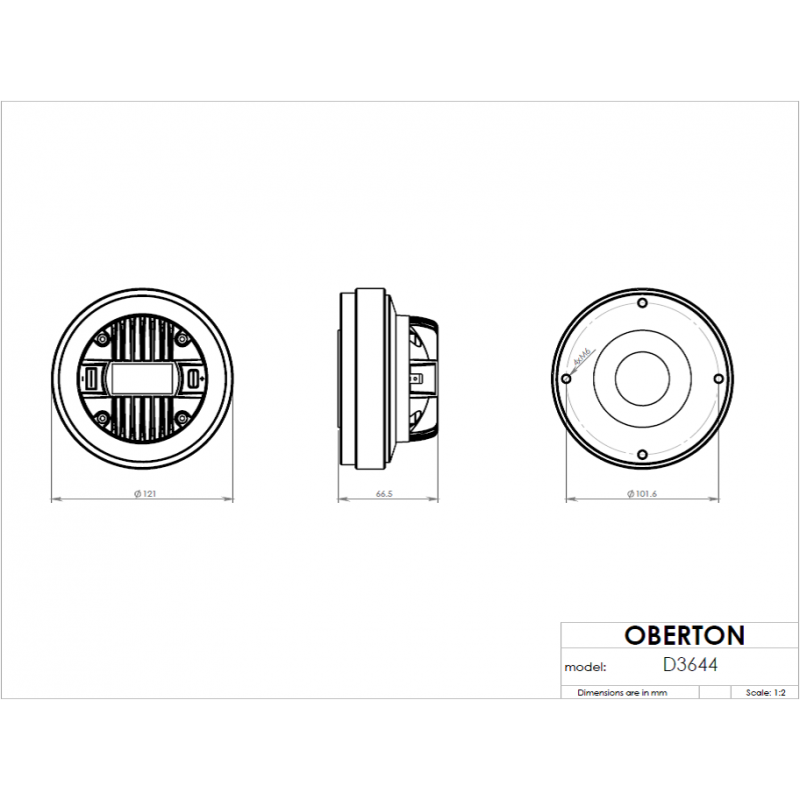

MOUNTING INFORMATION

Overall diameter
Depth
Mounting
Net weight

121 mm
66 mm
4 x M6 on 101,6 mm (4 in.) diameter
2.3 kg




Positive voltage on red terminal moves diaphragm toward the phasing plug
