Cere mai multe informatii despre Oberton 15XB1200 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.
Preţ:
1.200,00 Lei
Fără TVA: 1.008,40 Lei
la comanda - 6 Saptamani
-
+
Application : Extended low frequency woofer

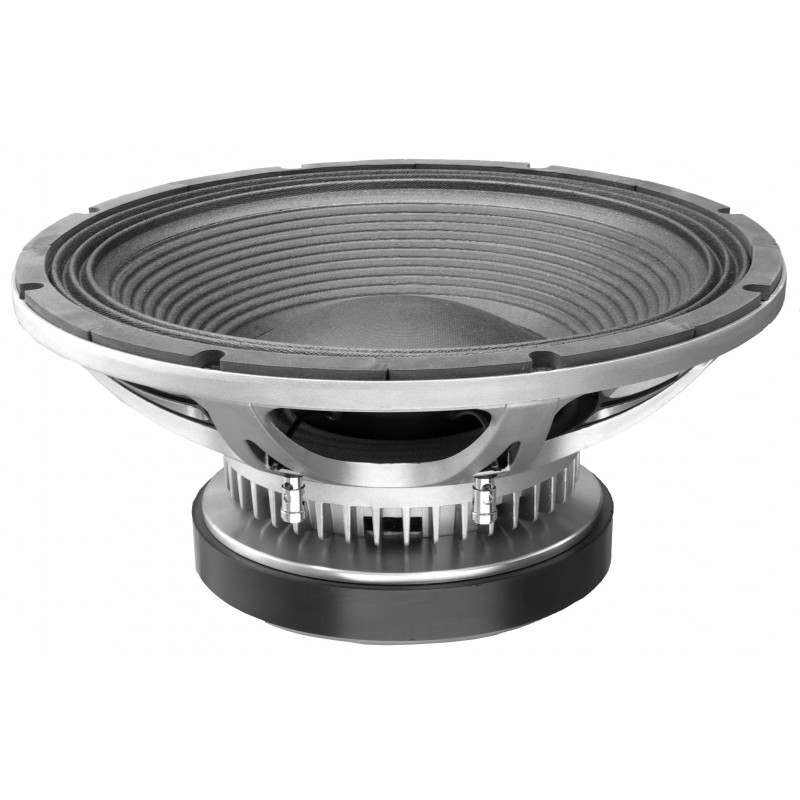

15XB1200 is a high power long coil 15 inch bass loudspeaker design to reinforce low frequency range at very high sound power levels. It features a 4” split sandwich voice coil, vented aluminium frame, 220 mm magnet structure and double silicone spider assembly. It is suitable for high level subwoofer applications in bassreflex boxes.
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
39.81 Hz
7.84
0.321
0.308
108.5 Litres
141.53 grams
5.20 Ohms
829.6 cm2
±12 mm
0.1129
23.95 T.m
1.36 mH
1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 120 L box enclosure tuned 56 Hz using a 40-400 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.
* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.
