Cere mai multe informatii despre Oberton 15NSW600 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.
Preţ:
1.899,00 Lei
Fără TVA: 1.595,80 Lei
la comanda - 6 Saptamani

-
+
Application: Power bass

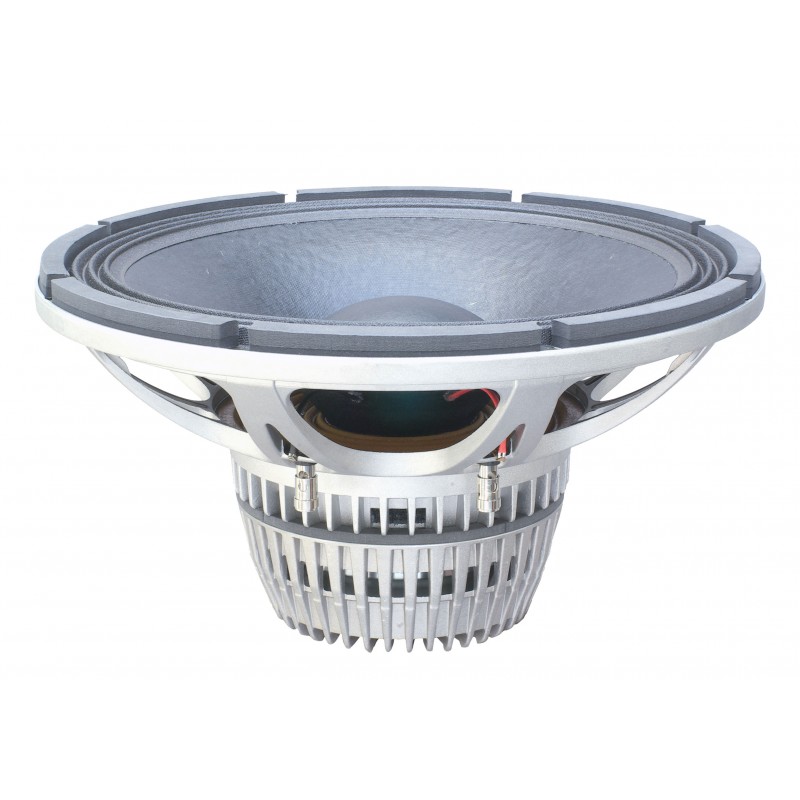

The 15NSW600 is neodymium bass loudspeaker, designed to deliver high impact bass response, with exceptional high excursion. It features 34 mm high sandwich voice coil, double silicon spider, vented neodymium magnet structure and aluminium die cast frame. The special designed components for low Mms ensure very high definition bass reproduction. The massive heatsink improve the cooling of the magnet structure, which reduce power compression. The double aluminium demodulating rings on the magnet structure reduce distortion and inductance and improve transient response. This results in an incredible high efficient transducer for subwoofer applications, with the ability to handle high excursion with low distortion and reduced thermal power compression. It is suitable for tuned reflex enclosures for high level subwoofer applications.
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
36.51 Hz
8.44
0.304
0.293
148.39 litres
123.05 grams
5.90 Ohms
829.6 cm2
±14.25 mm
0.1544 mm/N
23.41 T.m
0.80 mH
1. AES standard. Power is calculated on rated minimum impedance.
2. Program power is defined as 3db greater than AES Power Capacity.

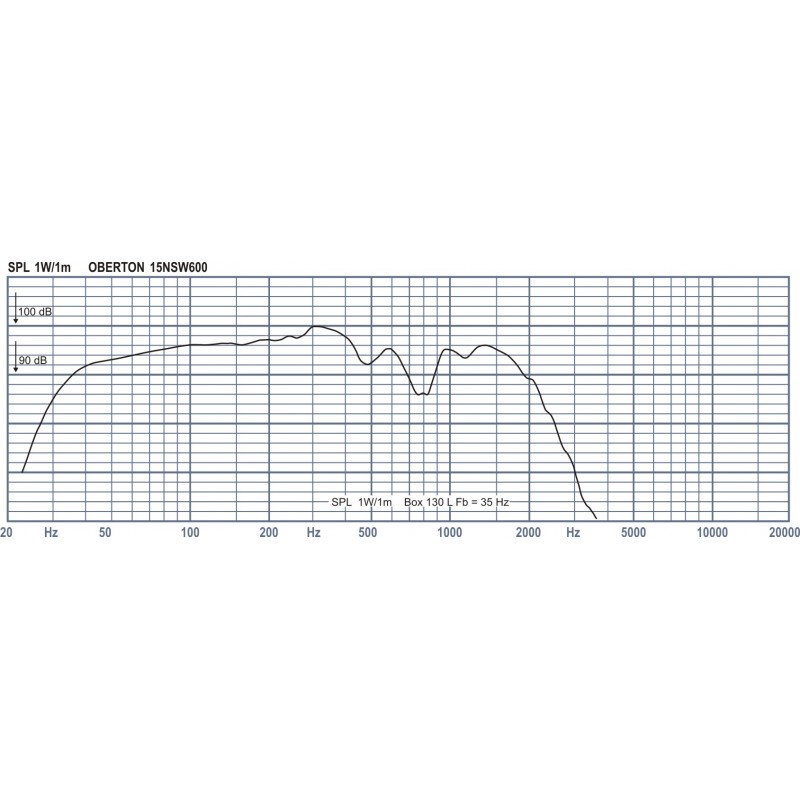

3. Measurement is in 130 L box enclosure tuned 35 Hz using a 40-400 Hz band limited pink noise test signal with crest factor 9 dB applied continuously for 2 hours.
* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.
