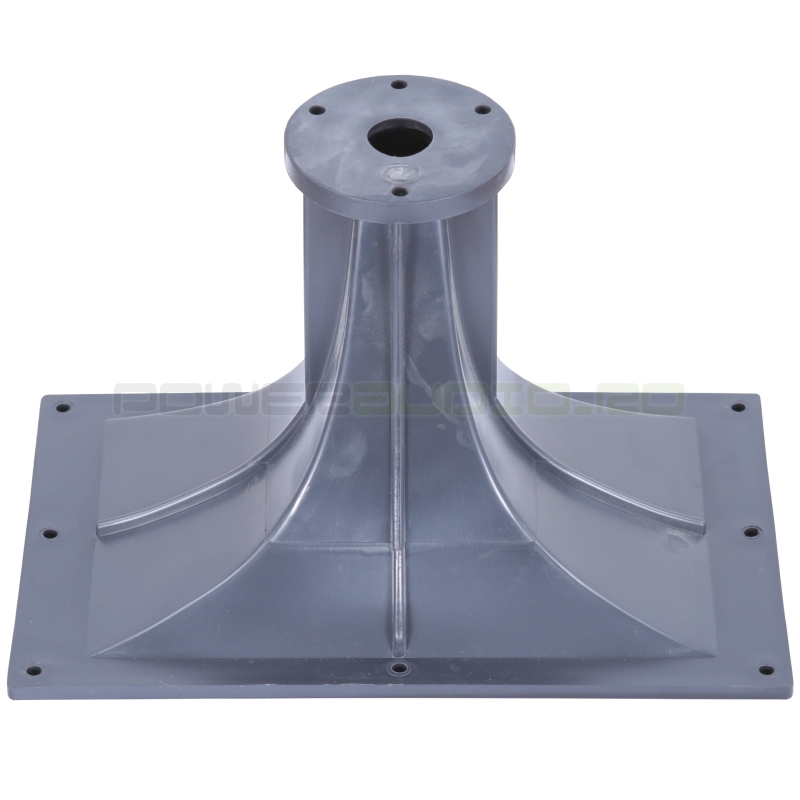

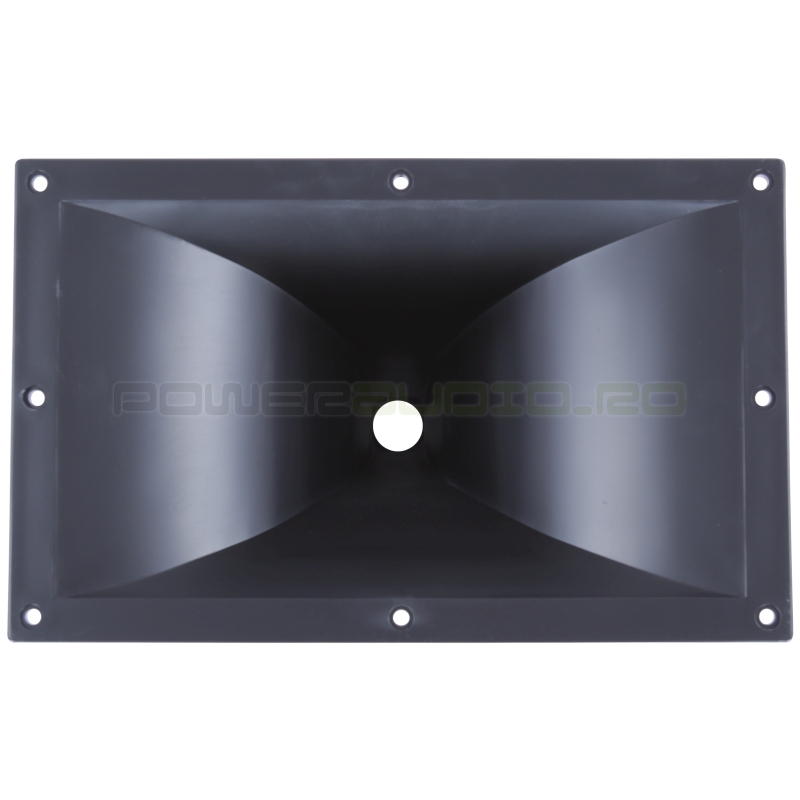

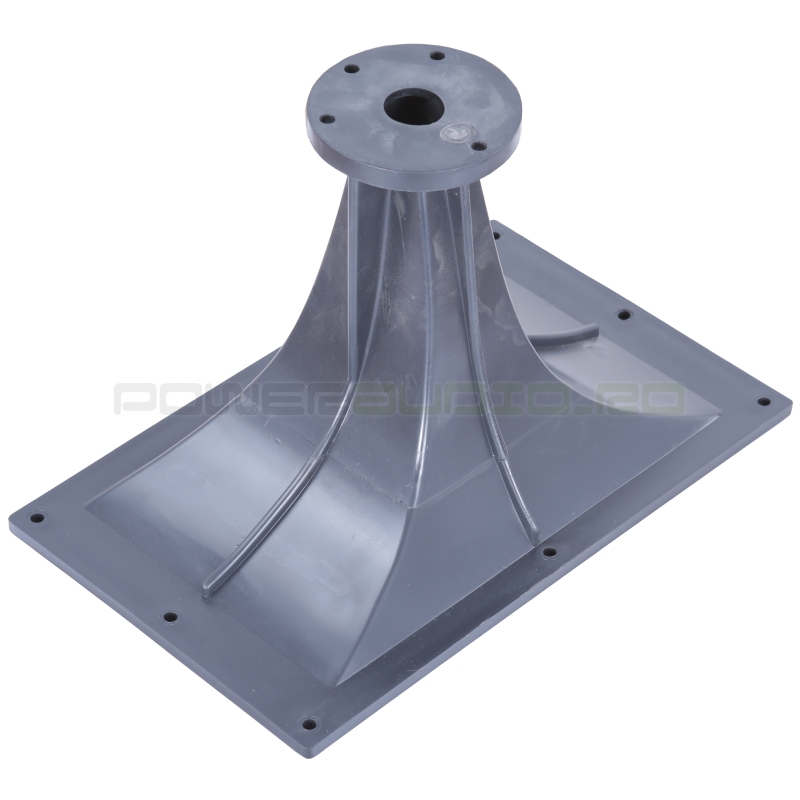

Celestion H1-9040P

Celestion H1-9040P
Compression driver horn

Compatible for use with bolt (flange) fitted
compression drivers
Hard-wearing reinforced polymer

General Specifications

Horn type: Exponential
Horn material: ABS
Radiation pattern: 90° x 40°
Cut off frequency: 1.5kHz

Mounting Information

Height: 199mm
Width: 318mm
Depth: 208mm
Baffle cut-out: 165x260mm
Fitting Bolt: (2xM6 holes on
76mm/3in PCD)
Throat exit: 25.1mm /1 Inch
Unit weight: 0.66kg

Descarca fisa tehnica
