Beyma TD-1124P

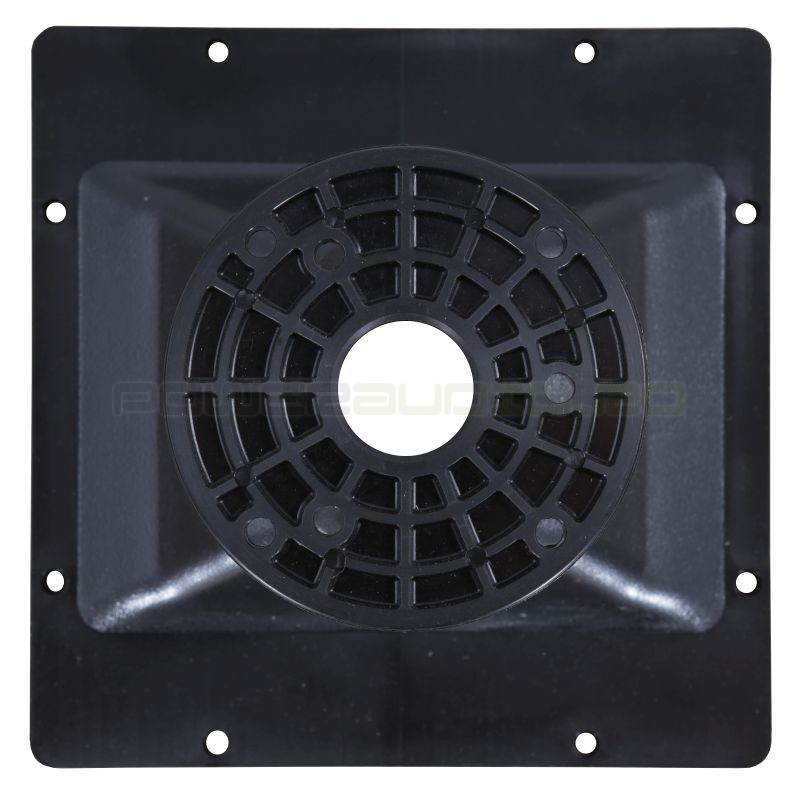

Beyma TD1124P 1" Bolt On Horn Flare 120 x 40 Dispersion

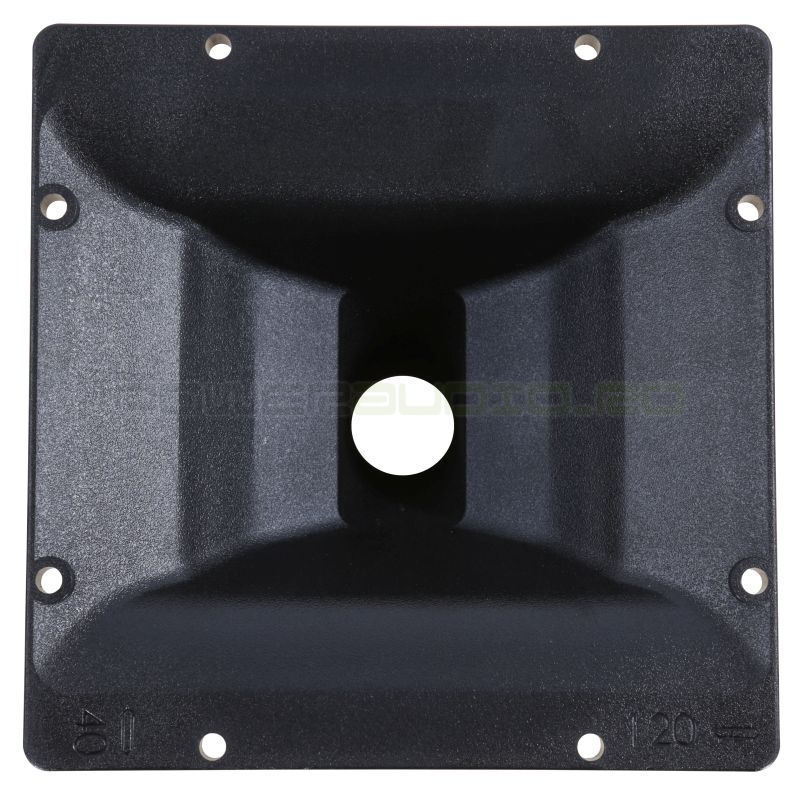

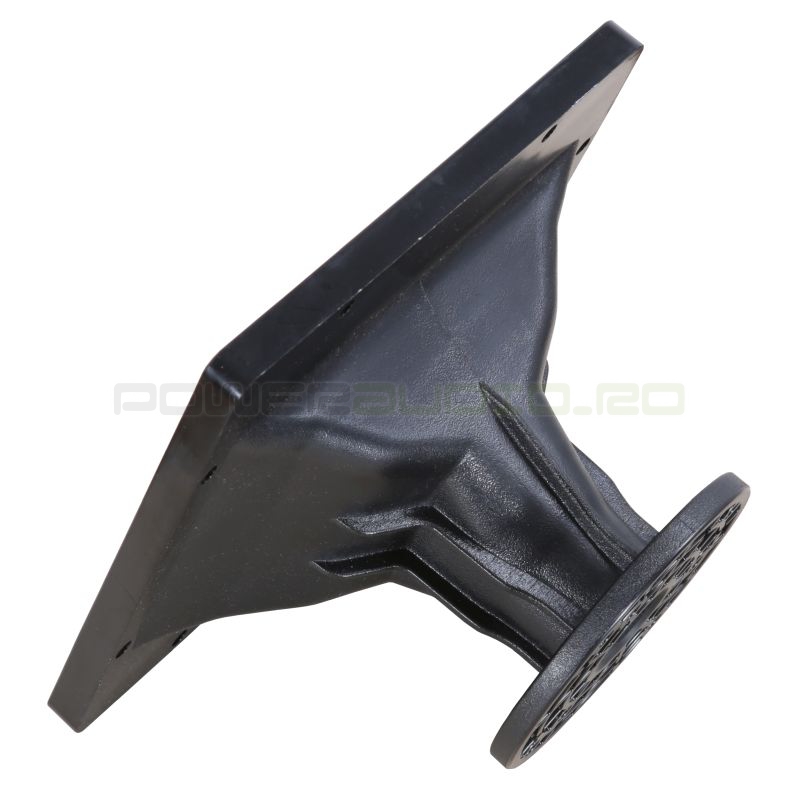

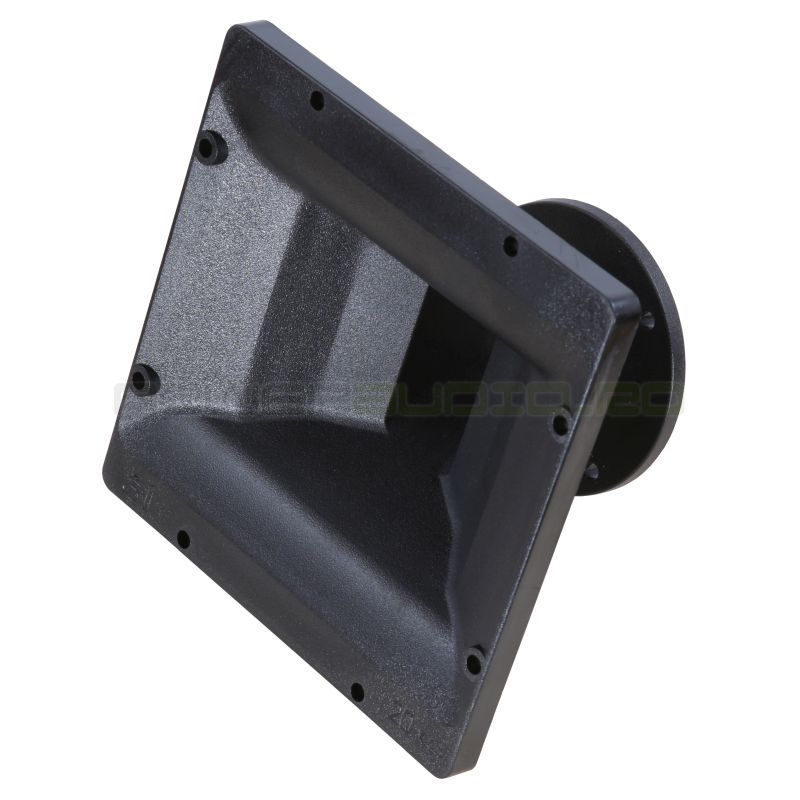

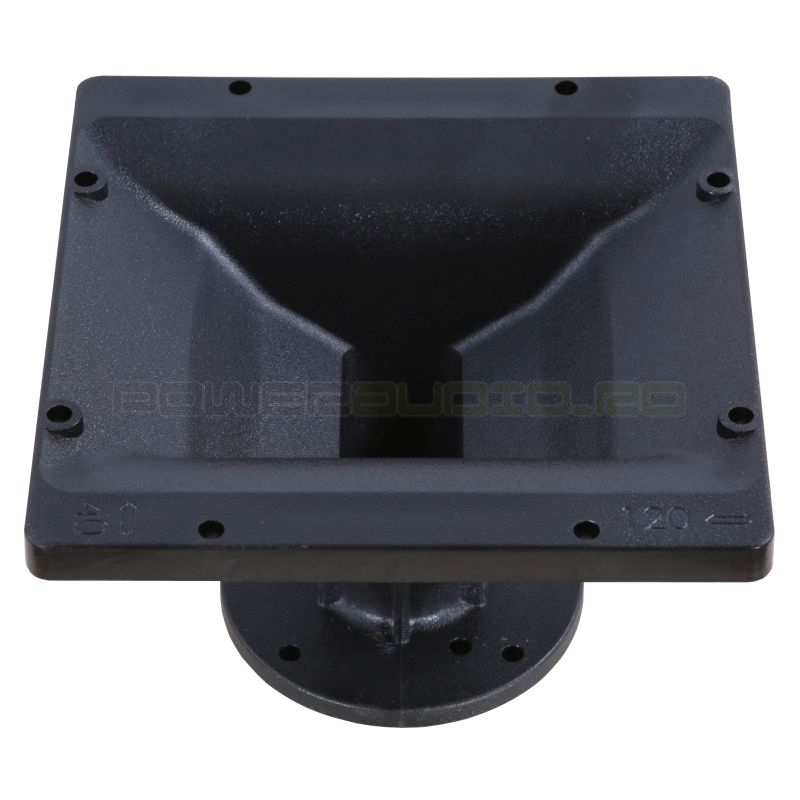

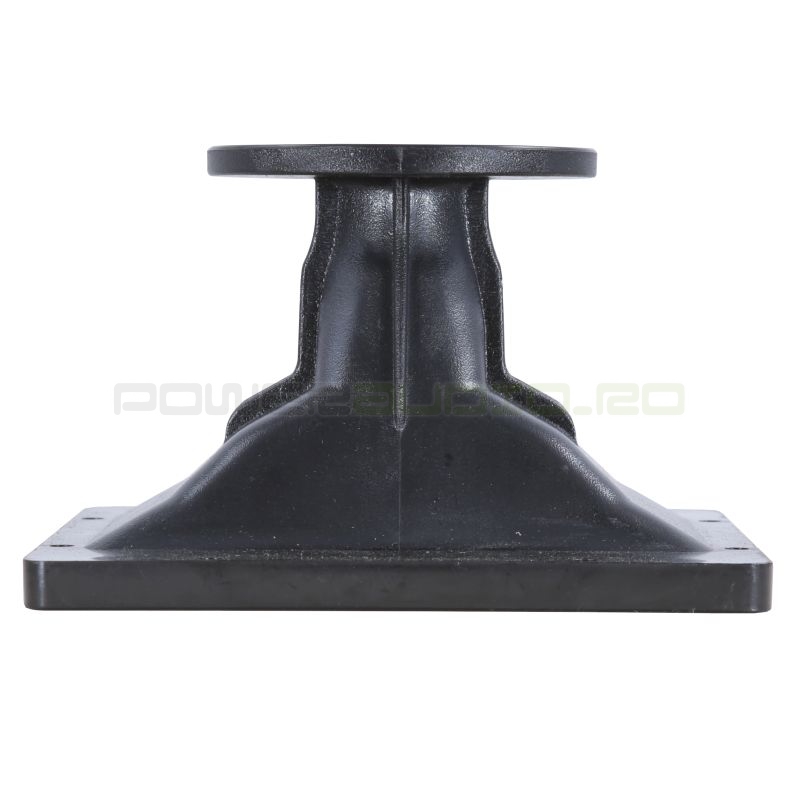

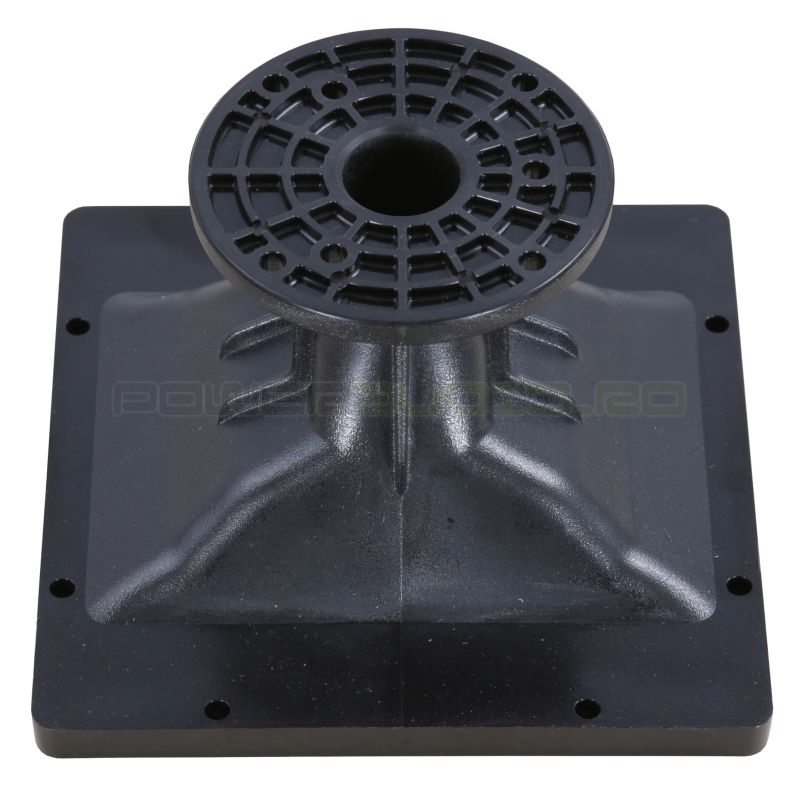

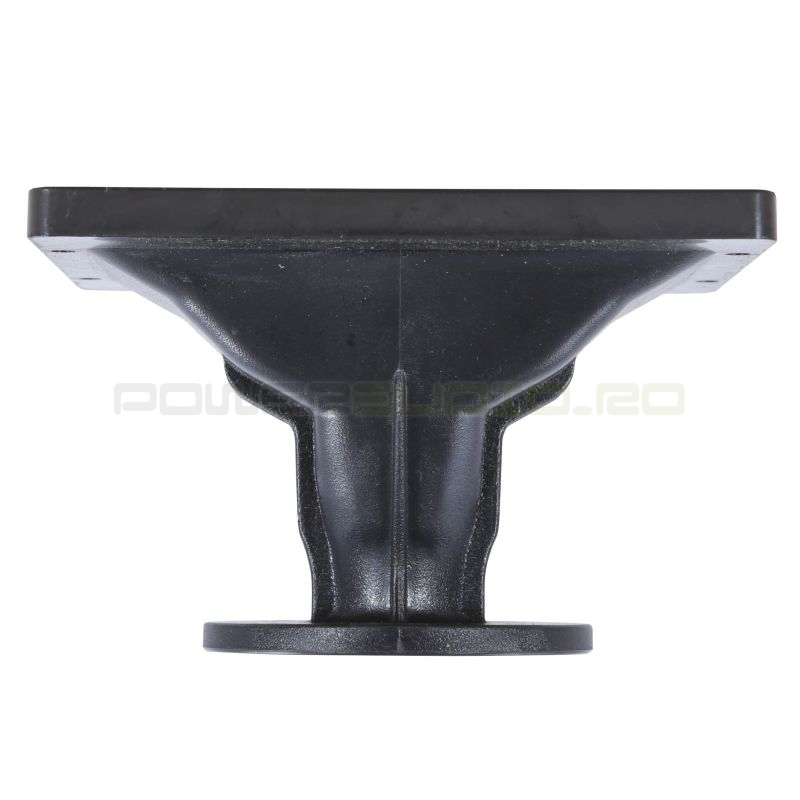

This horn has been designed to work with 1 inch compression drivers, providing uniform on and off-axis response. The constant directivity characteristics of this model ensure the ability to cover 120 degrees coverage horizontally and 40 degrees coverage vertically, at virtually any frequency within its operational range. Its square shape allows to easily rotate the horn without any need for modification in the cabinet.

Specifications:

    Coverage angles of 120 degrees horizontal and 40 degrees vertical.
    Precise directivity control in the pass band
    Square, compact design provides versatile mounting options.
    Cast aluminium construction

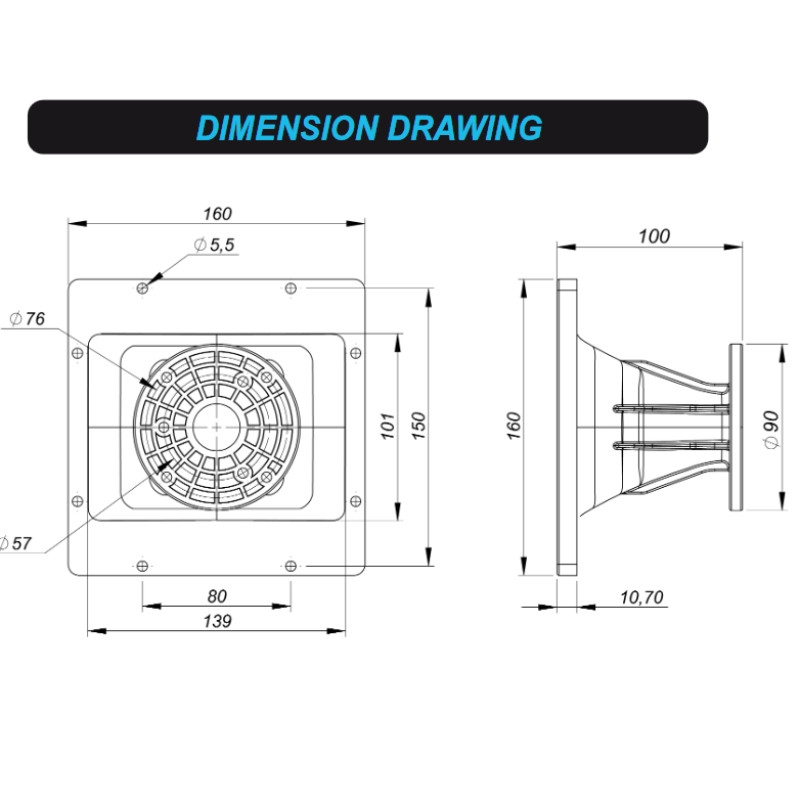

    Dimensions (WxHxD) 160x160x100mm
    Baffle cutout dimensions (WxH) 139x101.3mm
    Net weight 0.28 kg 2.2 lb
    Total weight 0.4 kg 2.86 lb
    Material Reinforced Polycarbonate
