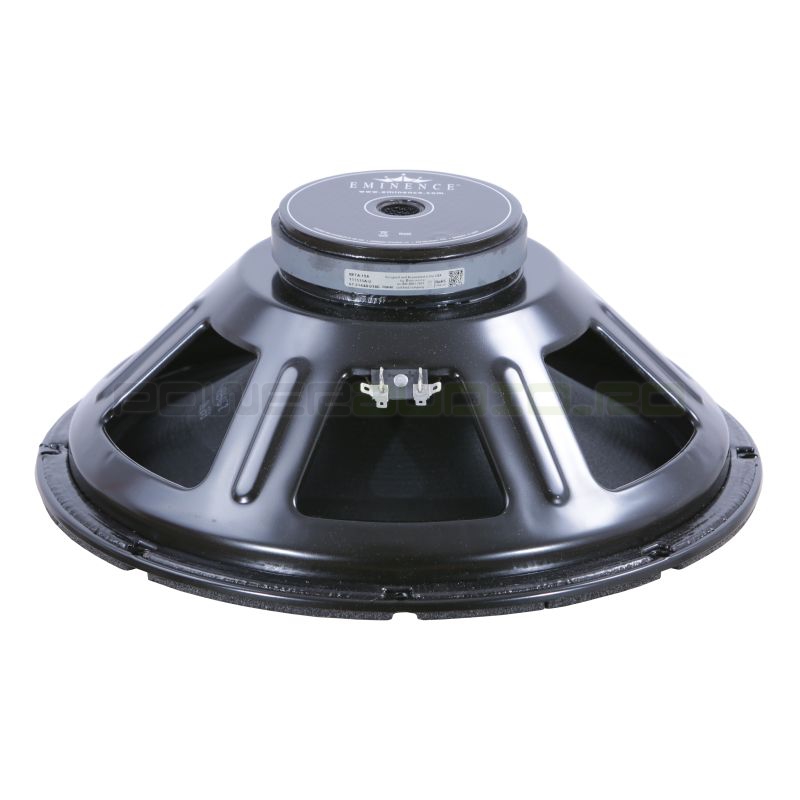

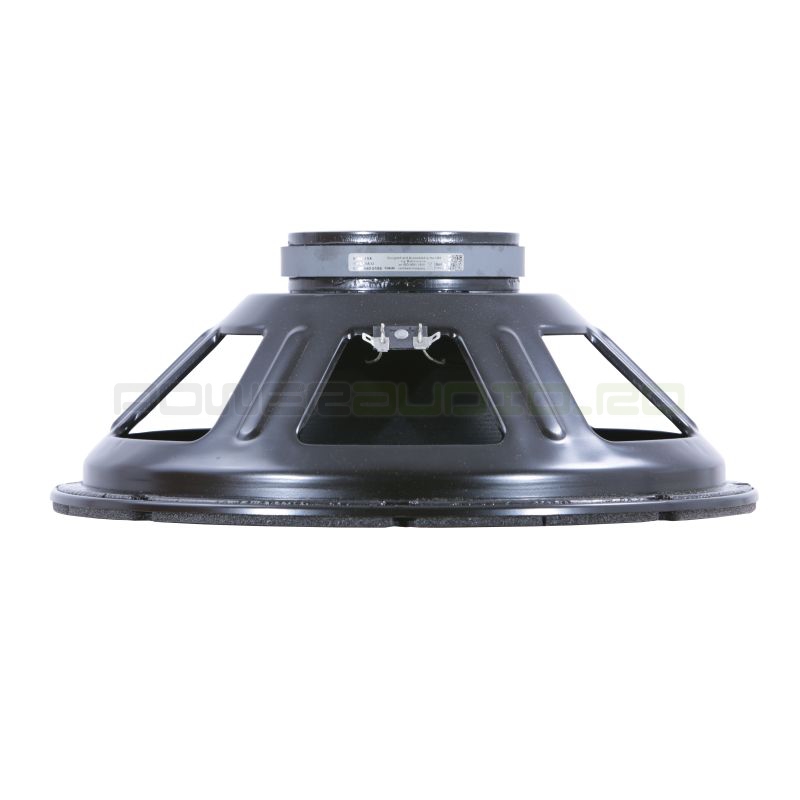

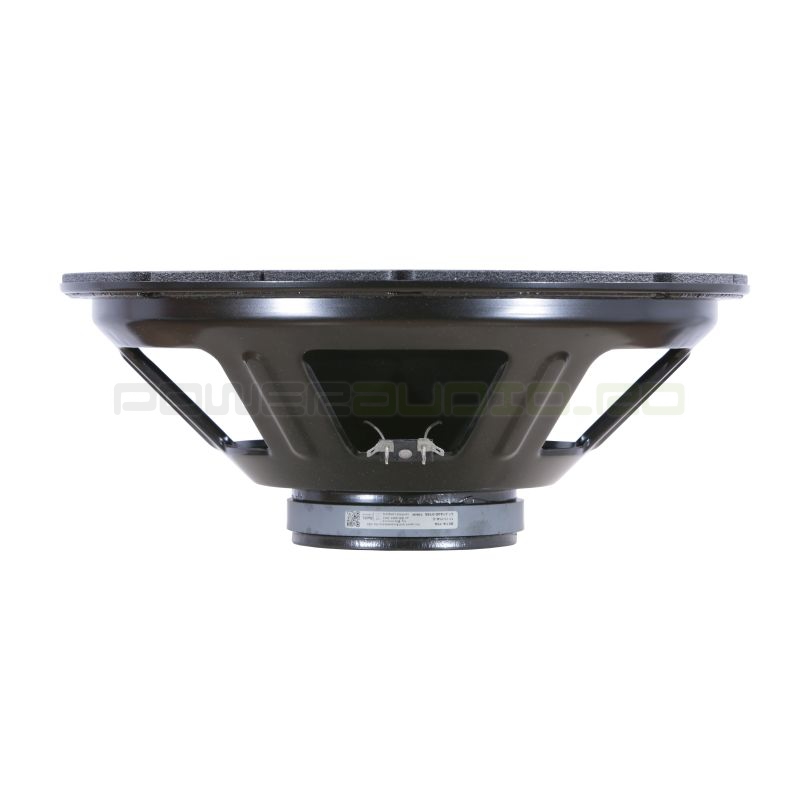

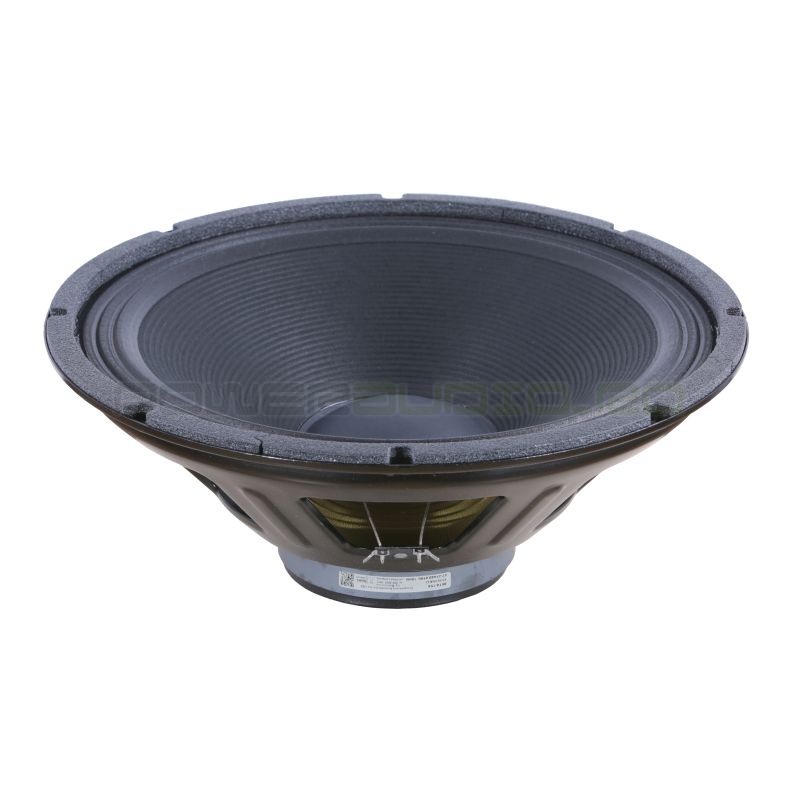

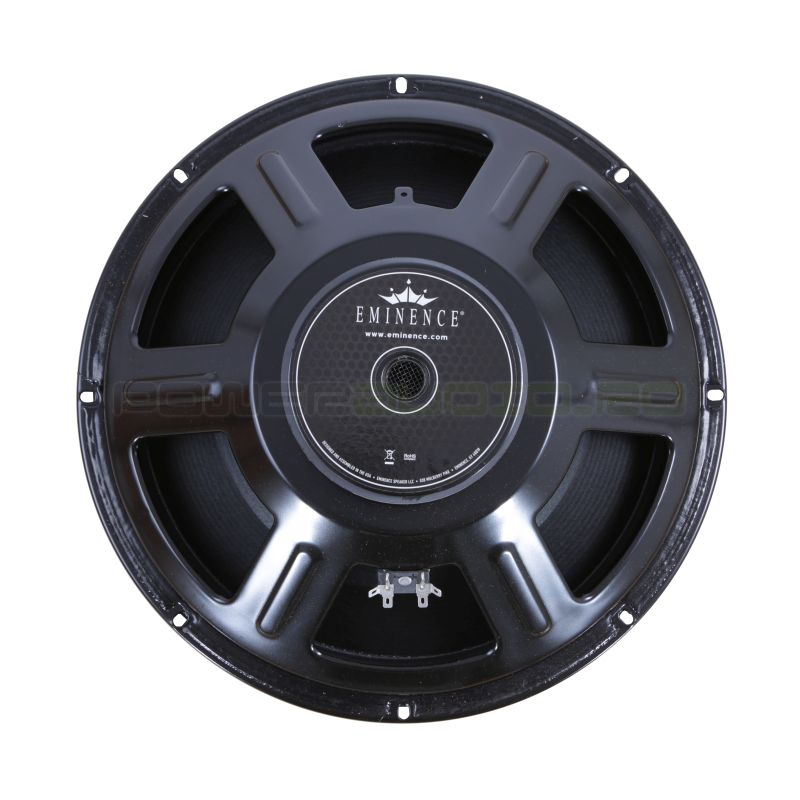

Eminence Beta 15 8 ohm - 300W 15" Driver 8 ohm
Application Notes: Recommended for professional audio as a woofer in sealed and vented enclosures.
Specifications:
Thiele & Small Parameters:
Mounting Information:
Materials of Construction:
Specifications:
- Nominal Basket Diameter 15", 381mm
- Nominal Impedance 8 ohms
- Power Rating - Watts: 300W, Music Program: 600W
- Resonance 35Hz
- Usable Frequency Range 45Hz - 3kHz
- Sensitivity*** 98.2dB
- Magnet Weight 34 oz.
- Gap Height 0.31", 7.92mm
- Voice Coil Diameter 2", 50.8mm
Thiele & Small Parameters:
- Resonant Frequency (fs) 35Hz
- DC Resistance (Re) 6.32
- Coil Inductance (Le) 1.1mH
- Mechanical Q (Qms) 8.1
- Electromagnetic Q (Qes) 0.63
- Total Q (Qts) 0.58
- Compliance Equivalent Volume (Vas) 334.6 liters / 11.8 cu.ft.
- Peak Diaphragm Displacement Volume (Vd) 330cc
- Mechanical Compliance of Suspension (Cms) 0.35mm/N
- BL Product (BL) 11.5 T-M
- Diaphragm Mass Inc. Airload (MMs) 60 grams
- Efficiency Bandwidth Product (EBP) 56
- Maximum Linear Excursion (Xmax) 4mm
- Surface Area of Cone (Sd) 823.7 cm2
- Maximum Mechanical Limit (Xlim) 11.6mm
Mounting Information:
- Recommended Enclosure Volume: Sealed 45-62 liters / 1.6-2.2 cu.ft., Vented 99-175.6 liters / 3.5-6.2 cu.ft.
- Driver Volume Displaced 203.3 cu.in. / 3.33 liters
- Overall Diameter 15.15", 384.8mm
- Baffle Hole Diameter 13.87", 352.3mm
- Magnet diameter 142mm
- Front Sealing Gasket Fitted as standard
- Rear Sealing Gasket Fitted as standard
- Mounting Holes Diameter 0.25", 6.4mm
- Mounting Holes B.C.D. 14.56", 369.9mm
- Depth 154mm, 6.05"
- Net Weight 8.8 lbs, 4 kg
- Shipping Weight 10.8 lbs, 4.9 kgs
Materials of Construction:
- Coil Construction Copper voice coil
- Coil Former Polyimide former
- Magnet Composition Ferrite magnet
- Core Details Vented and extended core
- Basket Materials Pressed steel basket
- Cone Composition Paper Cone
- Cone Edge Composition Cloth cone edge
- Dust Cap Composition Solid composition paper dust cap
