Oberton WS2544

Cere mai multe informatii despre Oberton WS2544 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 588,00 Lei

Fără TVA: 494,12 Lei

la comanda - 6 Saptamani

Producător: Oberton
Cod produs: Oberton WS2544
Puncte de recompensă: 9

Adaugă in Wishlist Compară produs

0 opinii Spune-ţi opinia

Descriere Opinii (0)

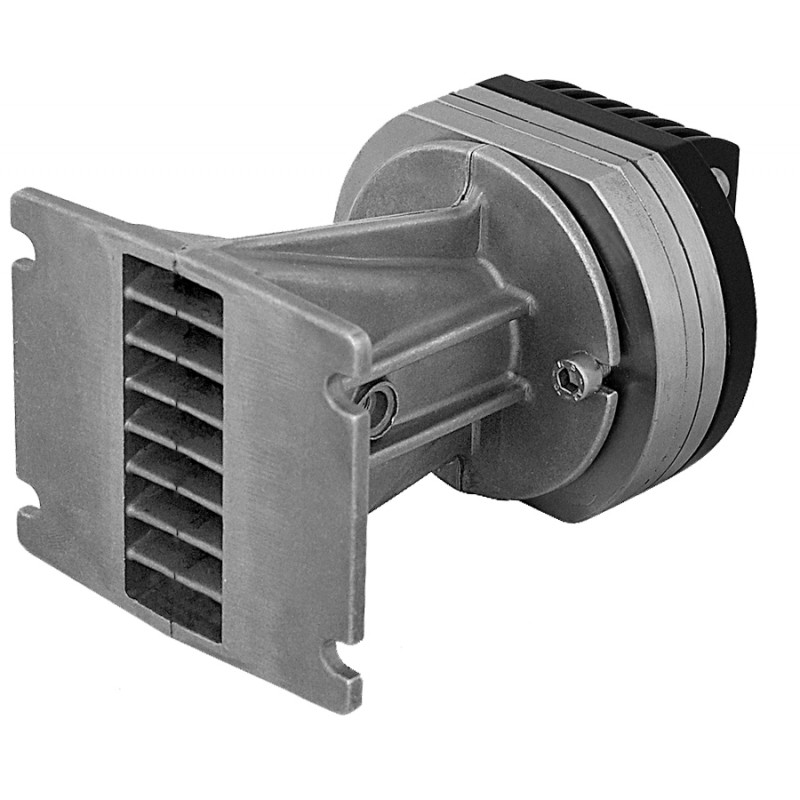

The WS2544 is high frequency line array wave source with exit 2,75” x 1”. It is based on cuted ( 71 mm high ) version of neodymium compression driver ND2545. This design allow distance between the drivers axis 74 mm. It has excellent sound pressure over 10 kHz, which is very important for Line Array application.

SPECIFICATION		MATERIALS OF CONSTRUCTON

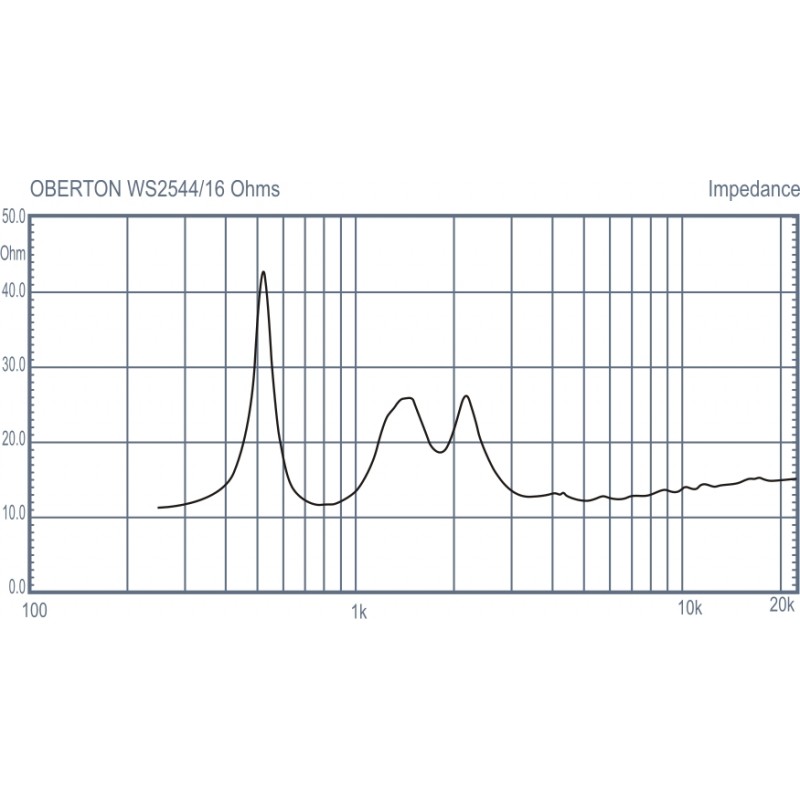

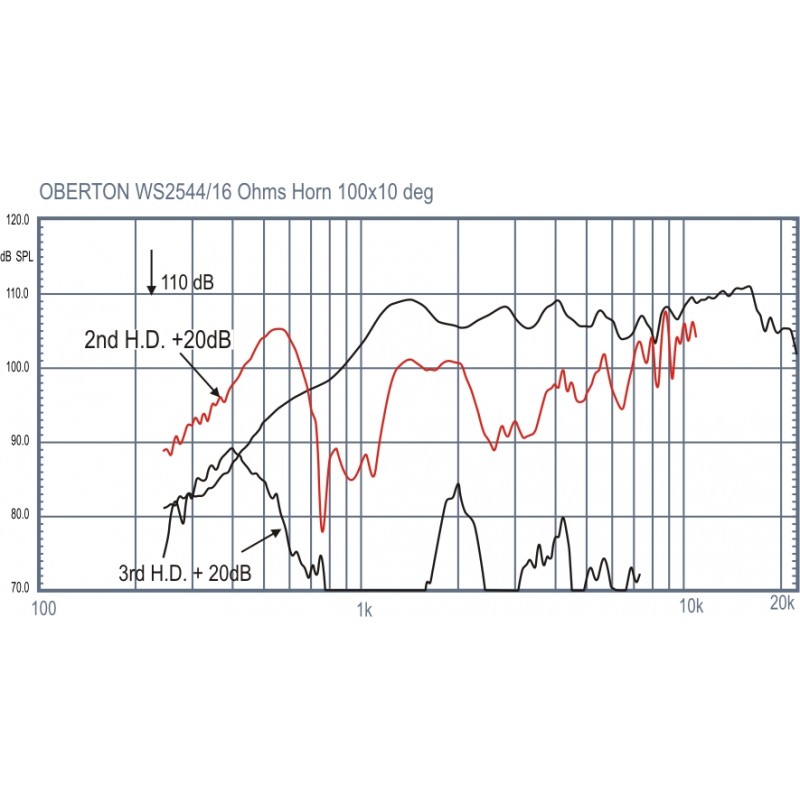

Nominal exit Nominal impedance Minimum impedance D.C. resistance Power capacity (1-20 kHz) Program Power Capacity (1-20 kHz) Sensitivity (2-15 kHz) Frequency range Recommended crossover Voice coil diameter Flux density	70 x 25,4 mm (2,75 x 1 in) 8/16 Ohms 6,35/12,62 Ohms 5,15/10,8 Ohms 40W 80W 107.5 dB 1 - 20 kHz 1,5 kHz or higher 12 dB/oct.min 44 mm (1,75 in.) 1,9 T	Diaphragm Voice coil material Voice coil former	sandwich polyester Aluminium Kapton™

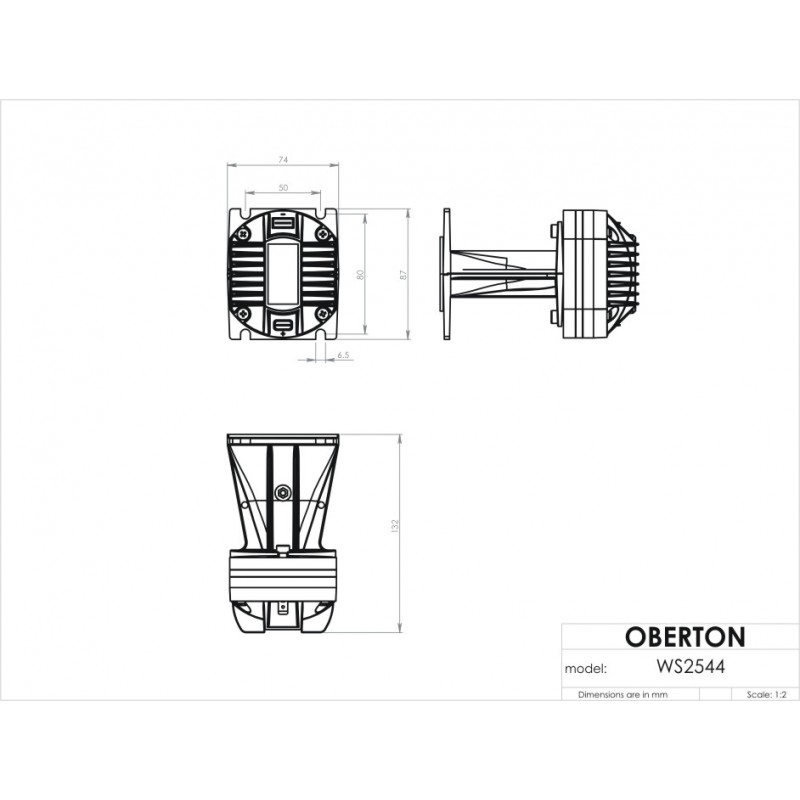

		MOUNTING INFORMATION
		Overall dimensions Depth Mounting Net weight	87 x 74 mm 130 mm 4 x M5 on 80 x 50 mm 1,05 kg
Positive voltage on red terminal moves diaphragm toward the phasing plug

Descarca fisa tehnica click to download pdf
