Oberton D2545
  • Oberton D2545
  • Oberton D2545

Cere mai multe informatii despre Oberton D2545 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 365,00 Lei
Fără TVA: 306,72 Lei
la comanda - 6 Saptamani
Producător: Oberton
Cod produs: Oberton D2545
Puncte de recompensă: 6
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: Oberton D2545 driver profesional driver oberton driver driver 1 inch driver 1" driver ferita driver prindere suruburi driver oberton professional

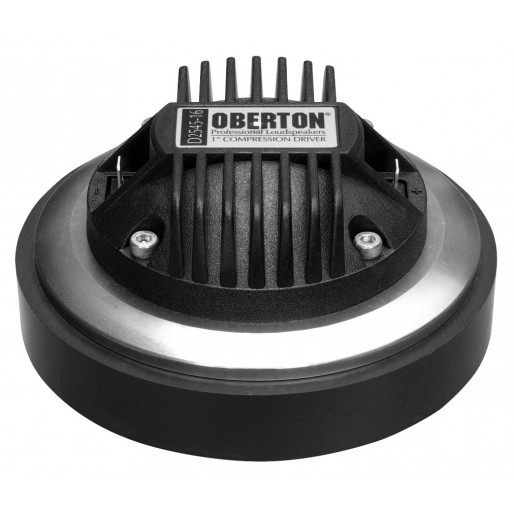

The D2545 high frequency compression drivers features an integral dome and suspension made of special polyester, providing exceptional high output with low distortion and frequency response up to 20 kHz.





SPECIFICATION

MATERIALS OF CONSTRUCTON

Throat diameter
Nominal impedance
Minimum impedance
D.C. resistance
Power capacity (2-20 kHz)
Program Power Capacity  (2-20 kHz)
Sensitivity (2-15 kHz)
Frequency range
Recommended crossover
Voice coil diameter
Flux density

25,4 mm (1 in.)
8/16 Ohms
6,4/12,7 Ohms
5,15/10,8 Ohms
40 W
80 W
109 dB
1 - 20 kHz
1,5 kHz or higher 12 dB/oct.min
44 mm (1,75 in.)
1,9 T

Diaphragm
Voice coil material
Voice coil former

sandwich polyester
Aluminium
  Kapton™

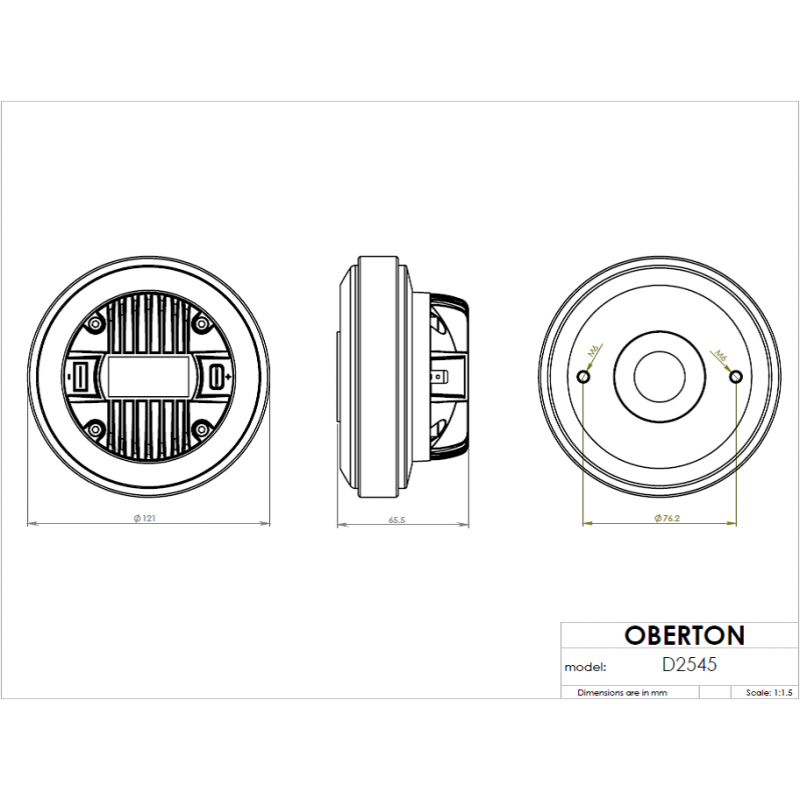

MOUNTING INFORMATION

Overall diameter
Depth
Mounting
Net weight

121 mm
70 mm
4 x M6 holes 90° on 76.2 mm (3 in.) diam
2,3 kg




Positive voltage on red terminal moves diaphragm toward the phasing plug

Descarca fisa tehnica click to download pdf
