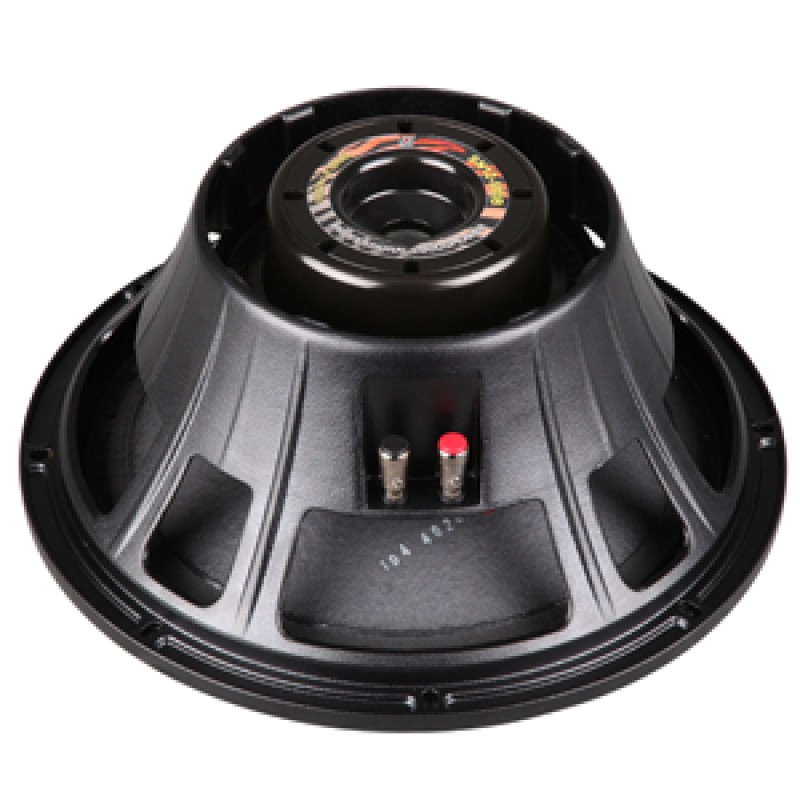

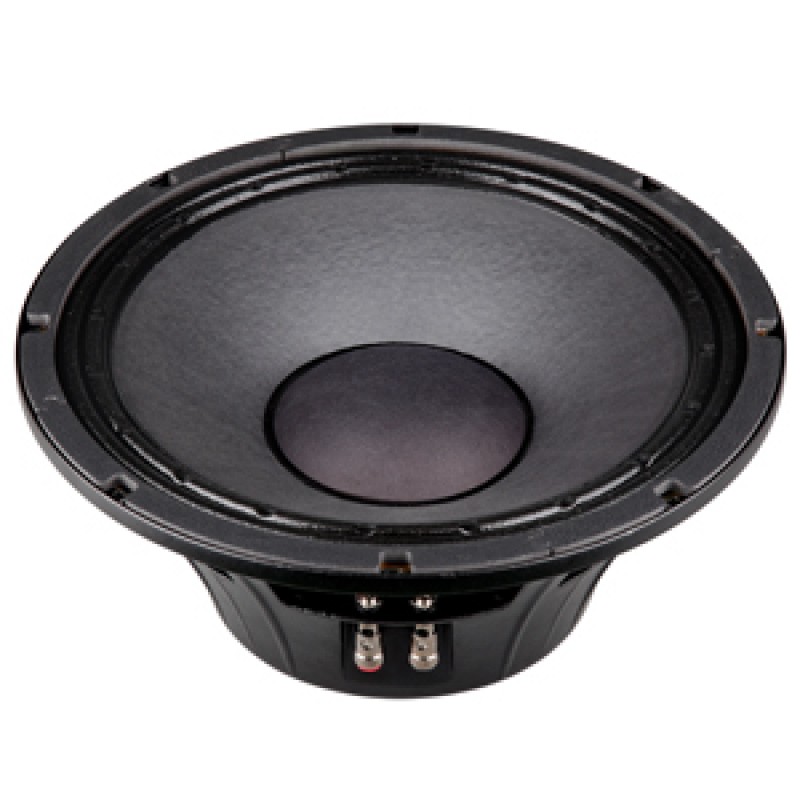

P-audio SN12-500B

Description:
The P Audio SN12-500B is a high performance wide bandwidth transducer.The SN12-500B is an upgraded design that features many of P Audios new technologies and performance upgrades. The 12 inch (305mm) diameter piston will produce extremely high sound pressure levels at both low and mid band frequencies and is ideal for high level response in both live sound and recorded music venues. The transducer uses very high energy neodymium magnetics to achieve a very high acoustic output to weight ratio. The SN12-500B has been optimized for use in two way or three way sound reinforcement systems and has an operating range of 60Hz to 3000Hz. The SN12-500B features a large 3.28 inch (83.3mm) diameter voice coil that provides an AES rated 500 watts of continuous power handling and a full 2000 watts of peak rated power handling when sufficient amplifier headroom is available. The SN12-500B utilizes P Audios Auto Balanced Cooling (ABC) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas. The voice coil design is a bobbin wound geometry with P Audios inside/outside wire technology to improve conversion efficiency and provide a large cross-sectional area for superior cooling. The transducer chassis is a die cast aluminum design that insures a very high degree of structural integrity.

Specificatii:

Diametru: 12"
Material Sasiu: Aluminiu
Putere AES: 500W
Putere Program: 1000W
Gama Frecvente: 60-3000Hz
Xmax: 4,8mm
Material Magnet: Neodymium
Sensitbilitate 1w/1m: 96.0 dB
Diametrul Bobinei: 3,25"

Descarca fisa tehnica
