P-audio 15BM-300B V3

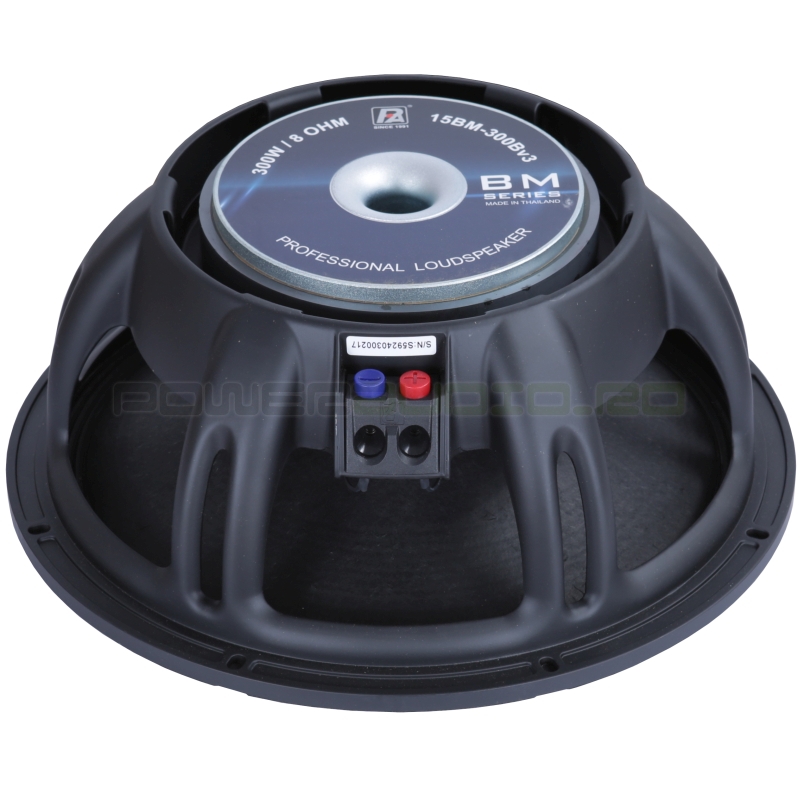

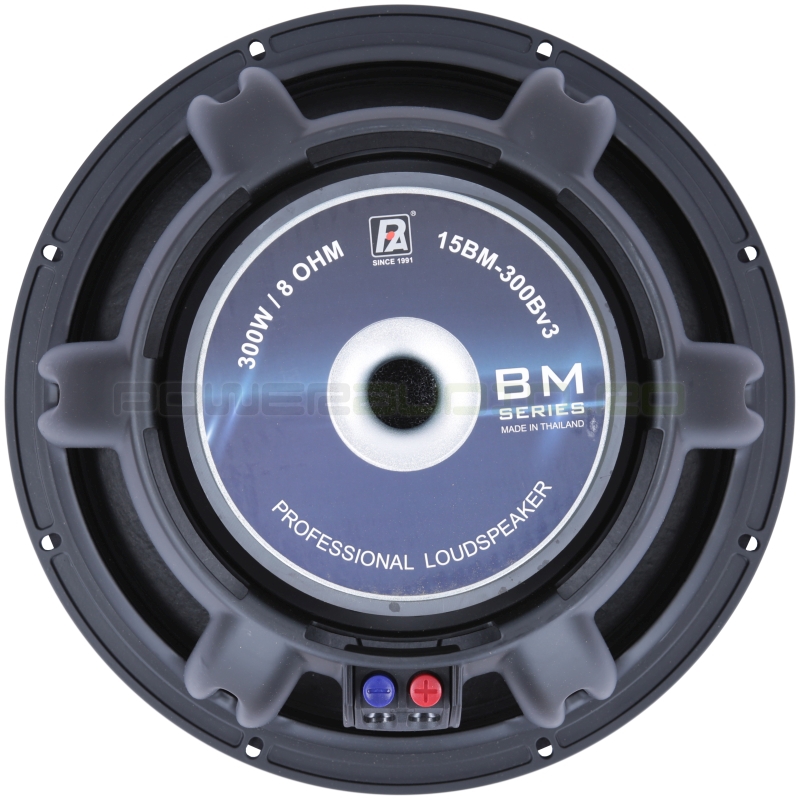

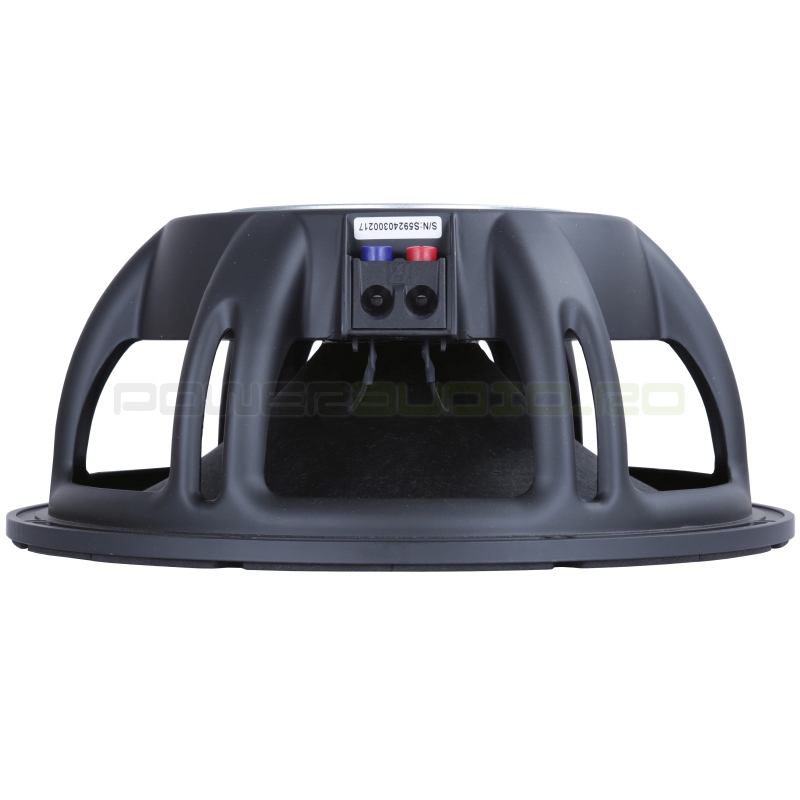

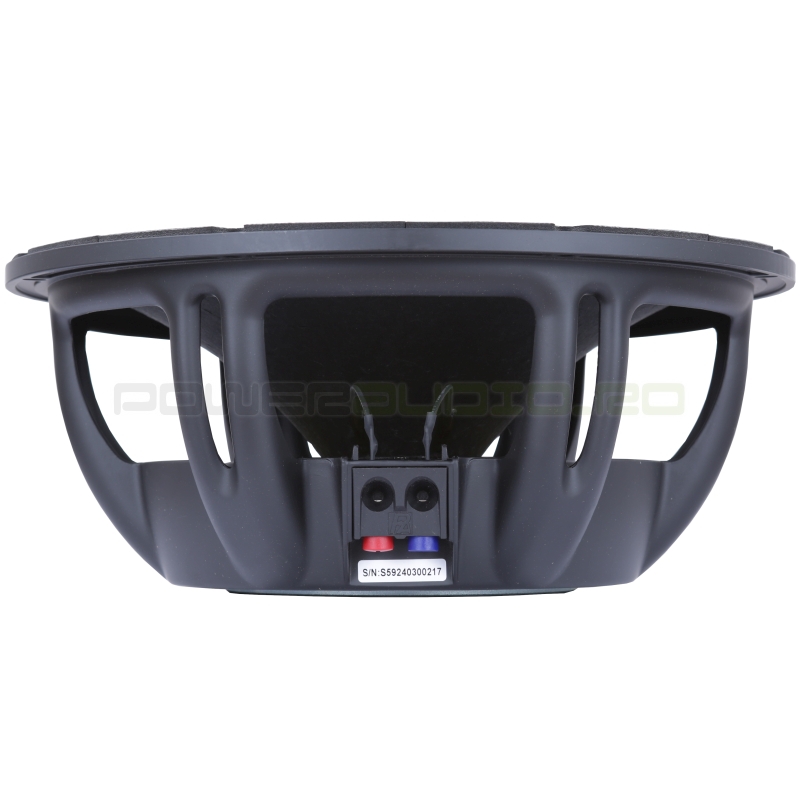

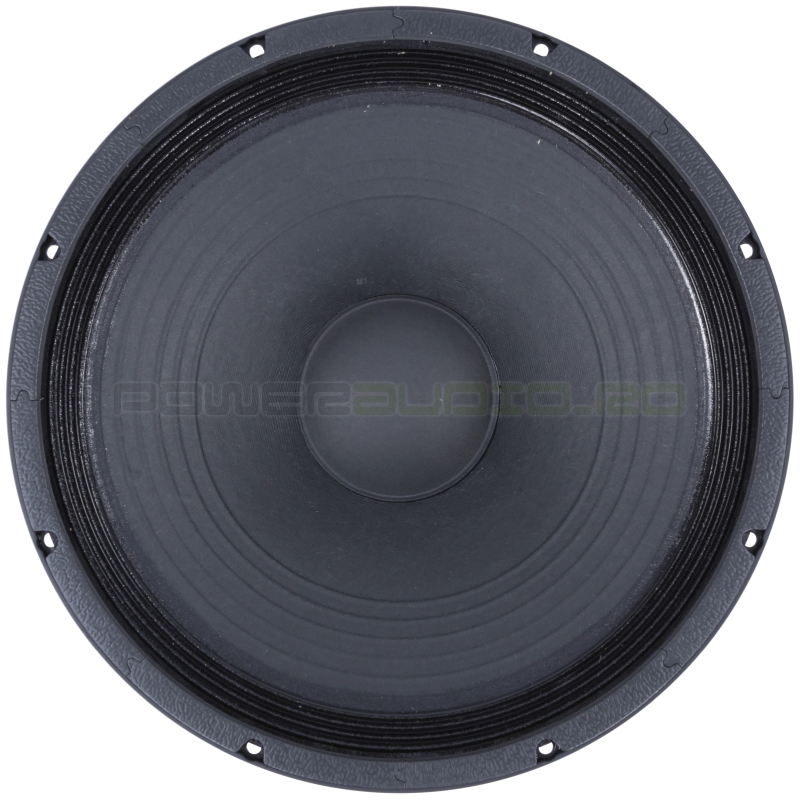

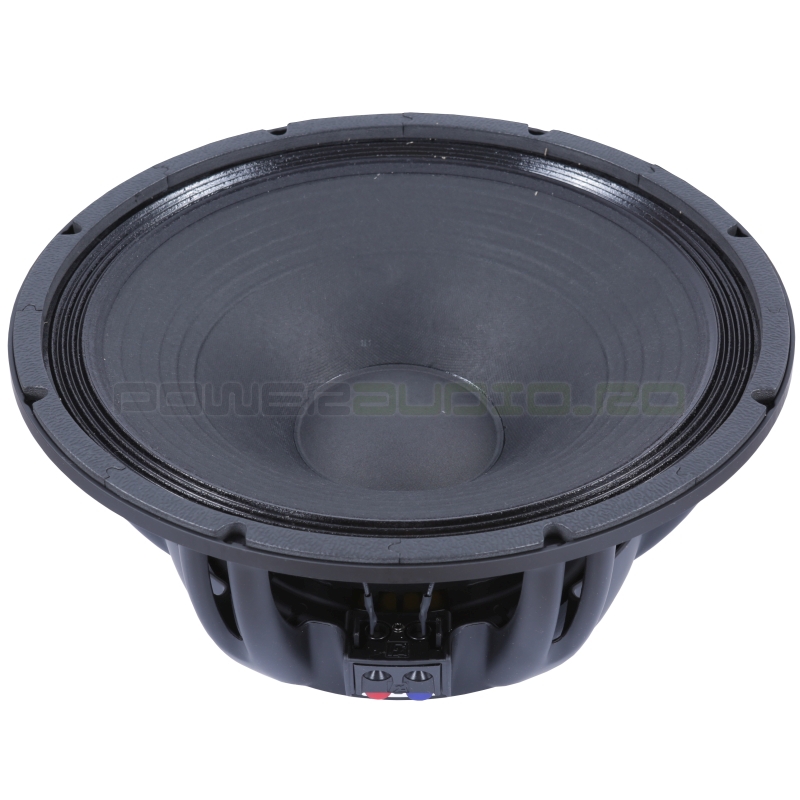

P-Audio 15BM-300B V3 15" Woofer

The P.Audio 15BM-300B V3 is a high output wide bandwidth transducer. The 15BM-300B V3 is an upgraded design that features many of P.Audio’s new technologies and performance upgrades. The 15 inch (381mm) diameter piston will produce extremely high sound pressure levels at both low and mid band frequencies and is ideal for high level response in both live sound and recorded music venues. The Transducer has a rated bandwidth of 45Hz to 3500Hz. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio. The 15BM-300B V3 has been optimized for use in two way or three way sound reinforcement systems.

The 15BM-300B V3 employs a medium format 3 inch (76.2mm) diameter voice coil that provides an AES rated 300 watts of continuous power handling and a full 1200 watt of peak rated power handling when sufficient amplifier headroom is available. The 15BM-300B V3 utilizes P.Audio’s Auto Balanced Cooling (ABC) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas.

The voice coil design is a bobbin would geometry with P.Audio’s precision circular wire technology to insure high conversion efficiency.

The system suspension has been designed specifically for high linear displacement and extended low frequency response. The 15BM-300B V3 also features a single spider configuration that provides system reliability and mechanical control. The transducer chassis is a die cast aluminum design that insures a very high degree of structural integrity.

General Specifications:

    Nominal Diameter 381 mm (15 in)
    Nominal Impedance 8 Ohms
    Nominal Power Handling 300 W(AES)
    Continuous Program Power Capacity 600 W
    Sensitivity 97 dB
    Frequency Range 45-3500 Hz
    Voice Coil Diameter 76.2 mm (3.0 in)
    Voice Coil Material CCA-W
    Former Material Glass fiber
    Effective Piston Diameter 331 mm (13.0 in)
    Flux Density 1.2T

Physical Information:

    Magnet Material Ferrite
    Basket Material Aluminium

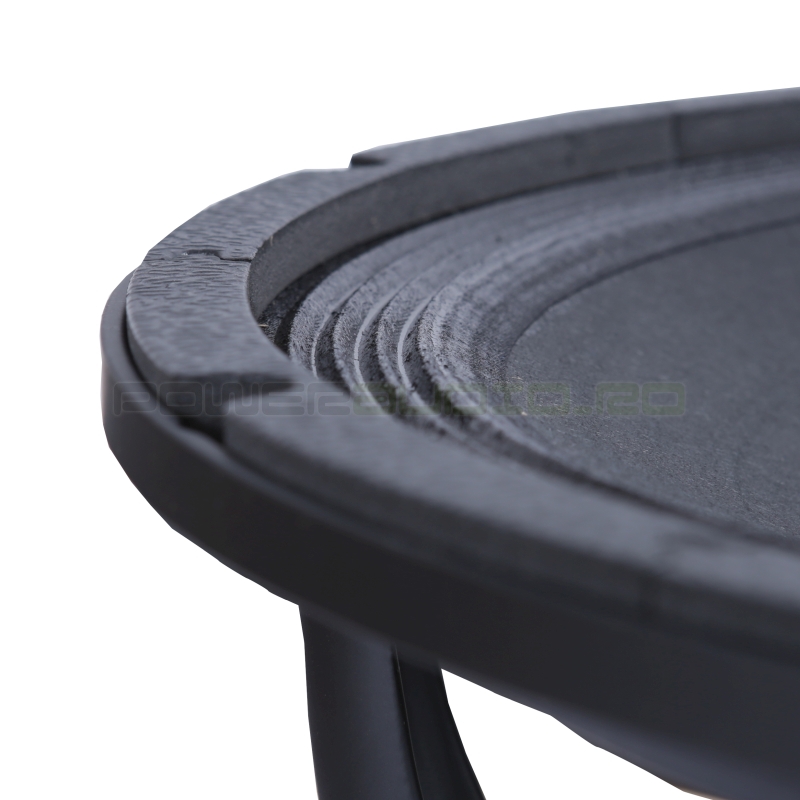

    Surround Material Cloth
    Cone Material Paper
    Dust Cap Material Paper
    Spider Material Cotton (Single)
    Gasket EVA
    Pole Design T-Pole
    Woofer Cone Treatment No Treatment

Parameters:

    Fs 48 Hz
    Re 5.7 ohms
    Qms 5.39
    Qes 0.43
    Qts 0.4
    BL 19.19 Tm
    Mms 92.19 g
    Mmd 77.81 g
    Vas 123.35 lt
    Sd 855 cm2
    Le 0.44 mH
    Eff (η₀) 3.09%
    Cms 1.2 e-04 m/N
    Xmax 3.9 mm
    Hag 9.0 mm
    Hvc 16.8 mm

Mounting And Shipping Information:

    Diameter 391.5 mm (15.4 in)
    Baffle Cutout Diameter 353.4 mm (13.9 in)
    Mounting Hole Diameter 372 mm (14.6 in)
    Bolt Circle Diameter 8 x Ø 6.5 mm
    Depth 150.8mm (5.9 in)
    Flange and Gasket Thickness 15.6 mm (0.61 in)
    Net Weight 8 kg
    Shipping Units 1
    Shipping Weight 9 kg
    Shipping Box 430 x 430 x 220 mm
