Oberton 6NCX
  • Oberton 6NCX
  • Oberton 6NCX
  • Oberton 6NCX

Cere mai multe informatii despre Oberton 6NCX la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 898,10 Lei
Fără TVA: 754,71 Lei
la comanda - 6 Saptamani
Producător: Oberton
Cod produs: Oberton 6NCX
Puncte de recompensă: 13
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: Oberton 6NCX difuzor coaxial profesional Oberton 6NCX150 difuzor profesional oberton midbass oberton 6.5 inch difuzor medii difuzor 6.5"

Application: Compact fullrange boxes.

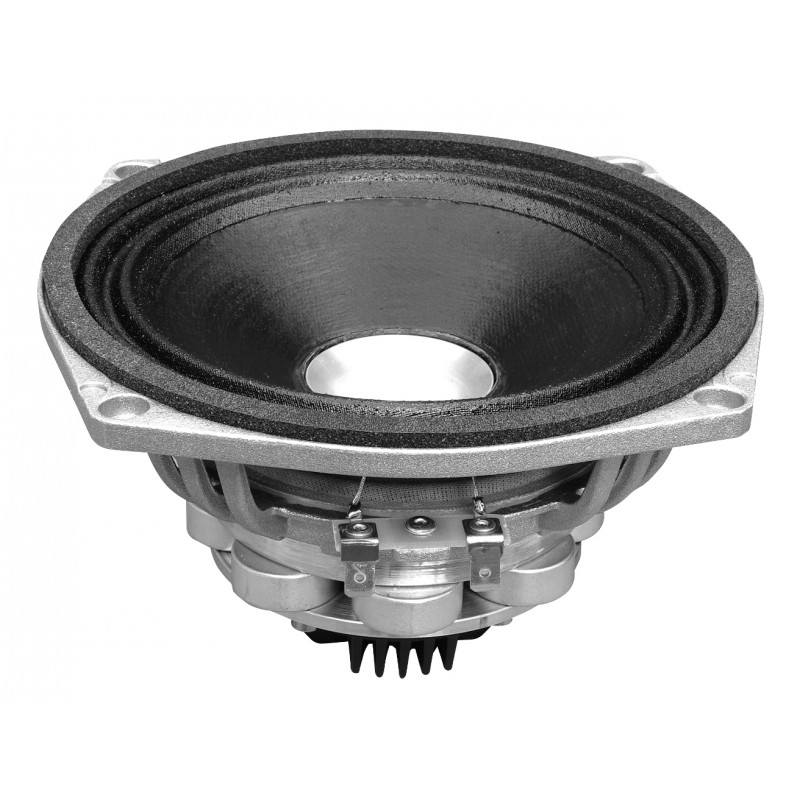

Description: The 6NCX is a 6.5" / 1" coaxial transducer designed for use in compact reflex enclosures with a nominal dispersion of 80 degrees.  The low profile, smooth curvilinear LF cone provides smooth response within its intended frequency range and water prove protective coating, allowing application in a wide range of environments. The state-of-the-art 44 mm (1.75 in) LF voice coil has Kapton former, which together with high temperature resistant resin ensure high reliability by high power. A double aluminium demodulating rings reduce distortion and inductance and improve transient response. The neodymium 1" exit compression driver adopted is our ND2539 model. The HF driver diaphragm assembly, using triple layer polyester dome this together with phasing plug improve linearity of frequency response in high end. Because of design with single magnet assembly the speaker has very light weight and compact size.

SPECIFICATIONS

THIELE-SMALL PARAMETERS

Nominal diameter
Impedance
Minimum impedance LF

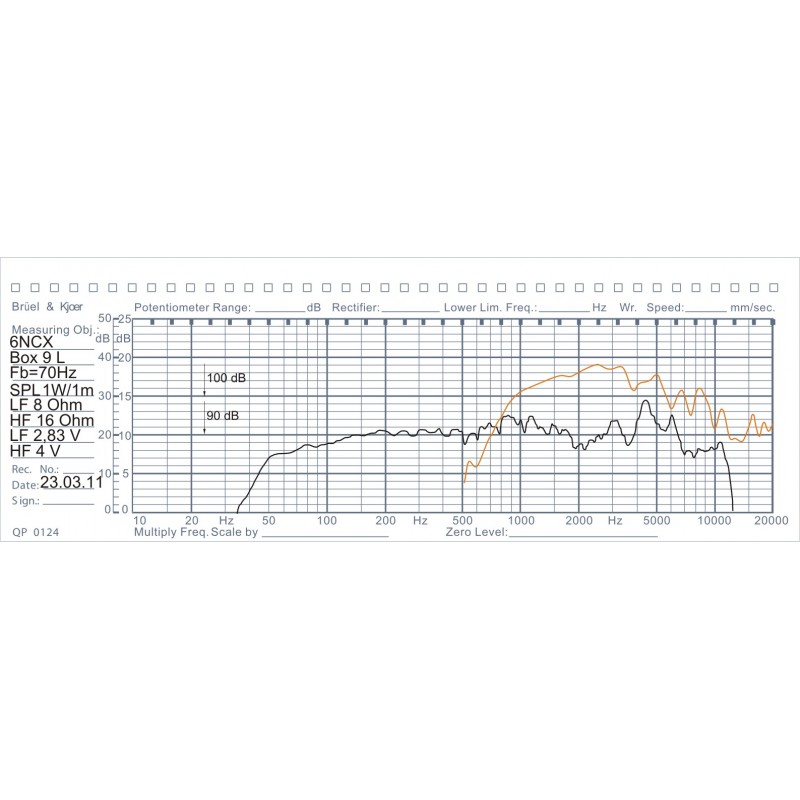

Frequency range
Dispersion angle

LF unit
Sensitivity (200-2000 Hz)
Power Capacity AES ¹
Program Power ²
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

HF unit
Minimum impedance HF
DC resistance
Sensitivity (1000-15000 Hz)
Power capacity (1000-20000 Hz)
Program power
Voice coil diameter
Winding material
Diaphragm material
Flux density

170 mm (6.5 in)
LF 8 Ohm /HF 16 Ohm
5.93 Ohm
80 - 18000 Hz
80 deg


92 dB
150 W
300 W
44 mm (1.75 in)
Copper
Kapton
15 mm
7 mm.
Paper with glassfiber
Die Cast Aluminium
Neodymium
0.97 T


10.13 Ohms
9.1 Ohms
104 dB
30 W
60 W
38 mm (1.5 in)
Aluminium
Sandwich polyester
1.84 T


Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

91.5 Hz
4.94
0.476
0.435
4.35 L
16.6 g
5.27 ohms
131 cm2
+ / - 5.75 mm
0.18 mm/N
10.27 T.m
0.52 mH

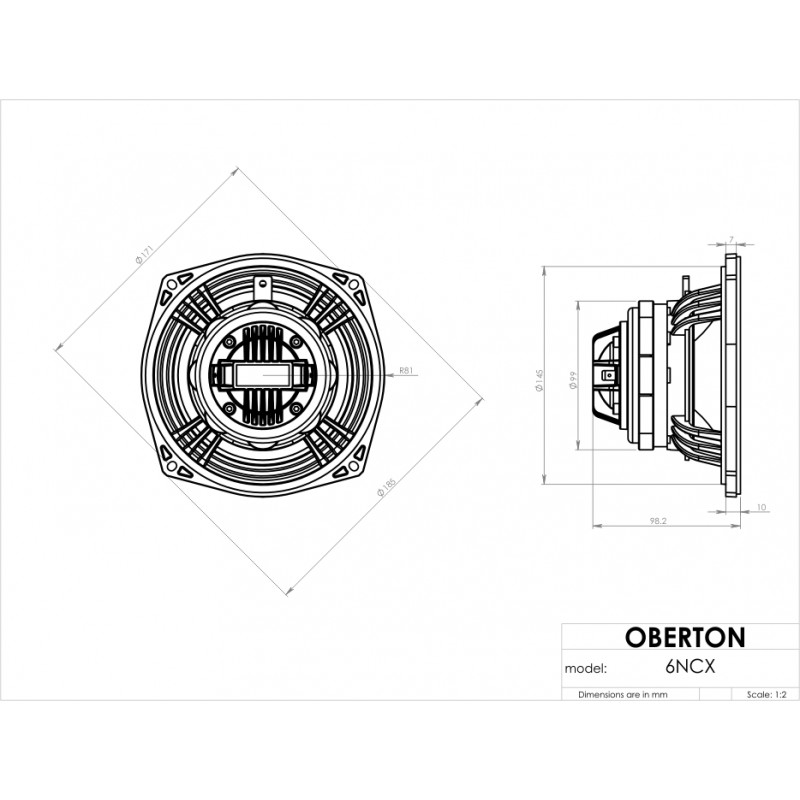

MOUNTING INFORMATION

Overall diameter
Depth
Baffle hole diameter
Bolt circle diameter
Number of mounting holes
Net weight

185 mm (7.28 in)
98.2 mm
145 mm
171 mm
4 eliptic 5.5 mm/6.5 mm
1.35 kg



1.  AES standard. Power is calculated on rated minimum impedance. Measurement is in 18 L box enclosure tuned 82 Hz using a 60-2000 Hz band limited pink noise test signal applied continuously for 2 hours.
2.  Program power is defined as 3db greater than AES Power Capacity.
*  Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

Descarca fisa tehnica click to download pdf
