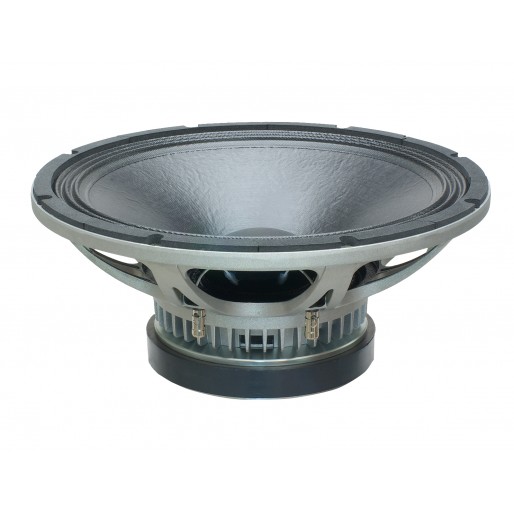

Oberton 15MB35

SPECIFICATIONS

THIELE-SMALL PARAMETERS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity

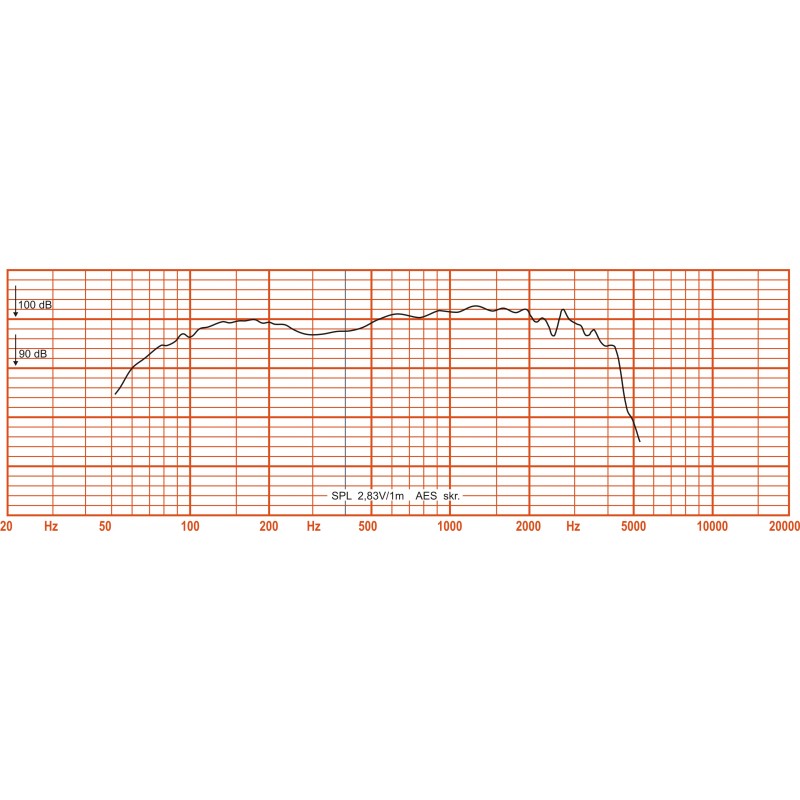

Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

15"/385 inch/mm
8 Ohm
5.97 Ohm
700 W
1400 W
(200-2000 Hz)100 dB/W/m
45 - 3500 Hz
88 mm
Aluminium
Glassfiber
19 mm
11 mm
Paper with Kevlar + glass fibers
Die cast aluminium
Ferrite
1.15 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

47.70 Hz
8.38
0.35
0.336
115.1  litres
92.95 grams
5.06 Ohms
829.6 cm²
±6.75 mm
0.12 mm/N
20.07 T.m
0.637 mH

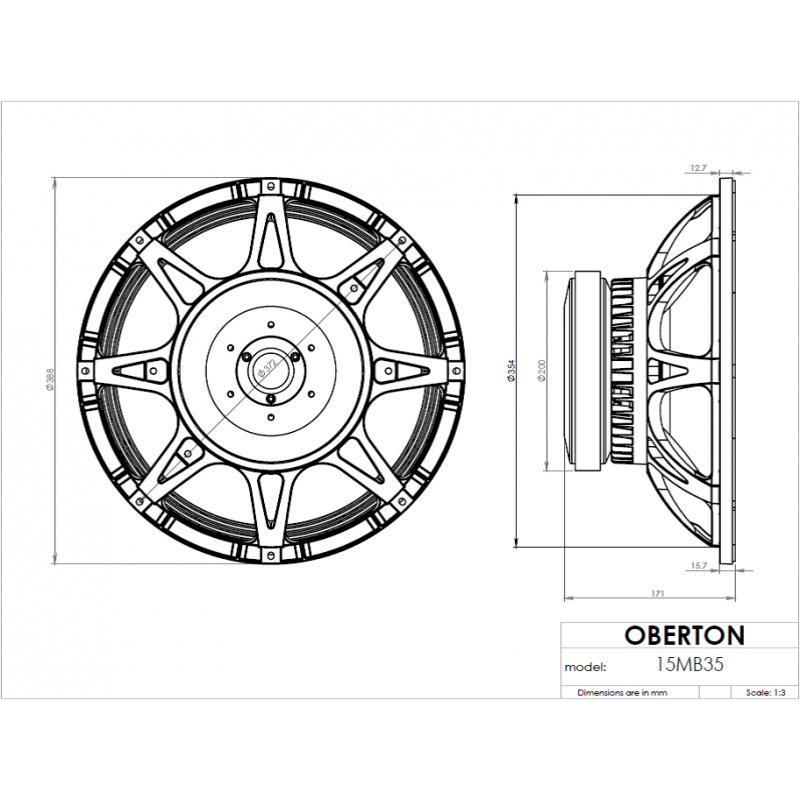

MOUNTING INFORMATION

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 120 L box enclosure tuned 56 Hz using a 40-400 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

388 mm
354 mm
8 with dia. 7mm
370/372 mm
171 mm
9.2 kg
