Lavoce WSF152.02

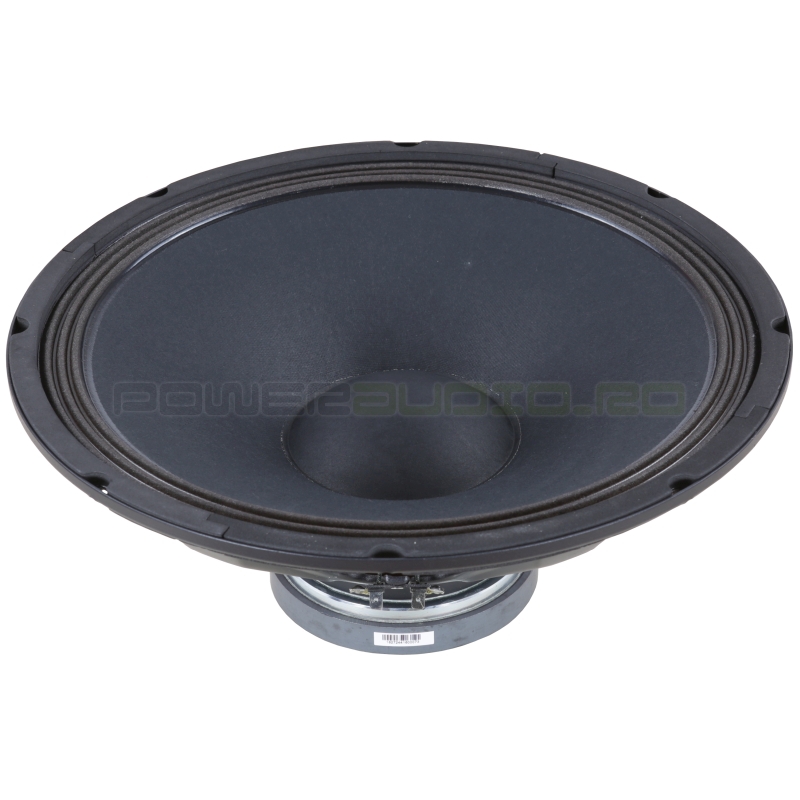

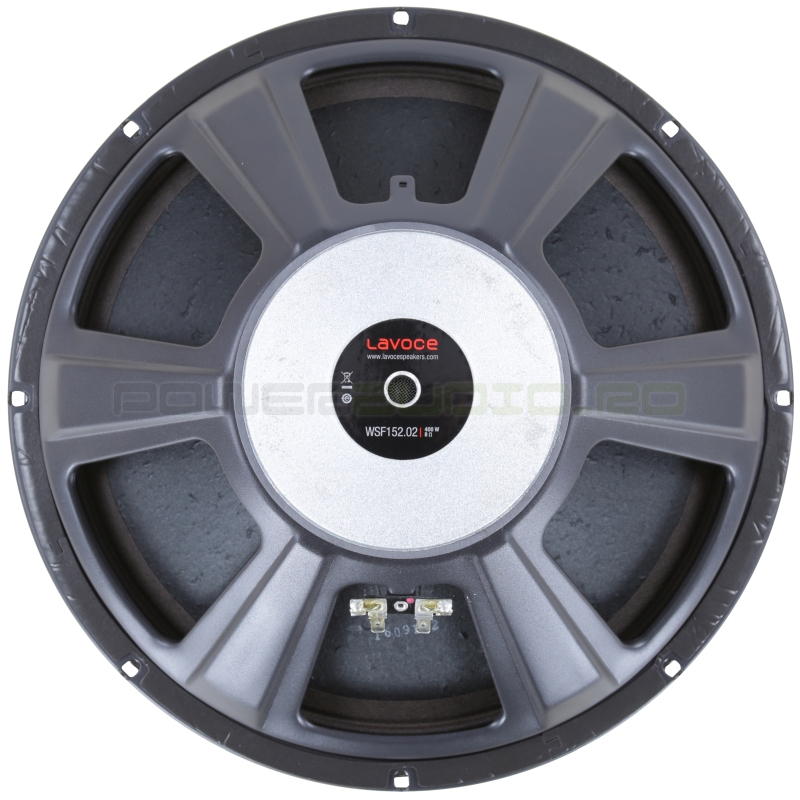

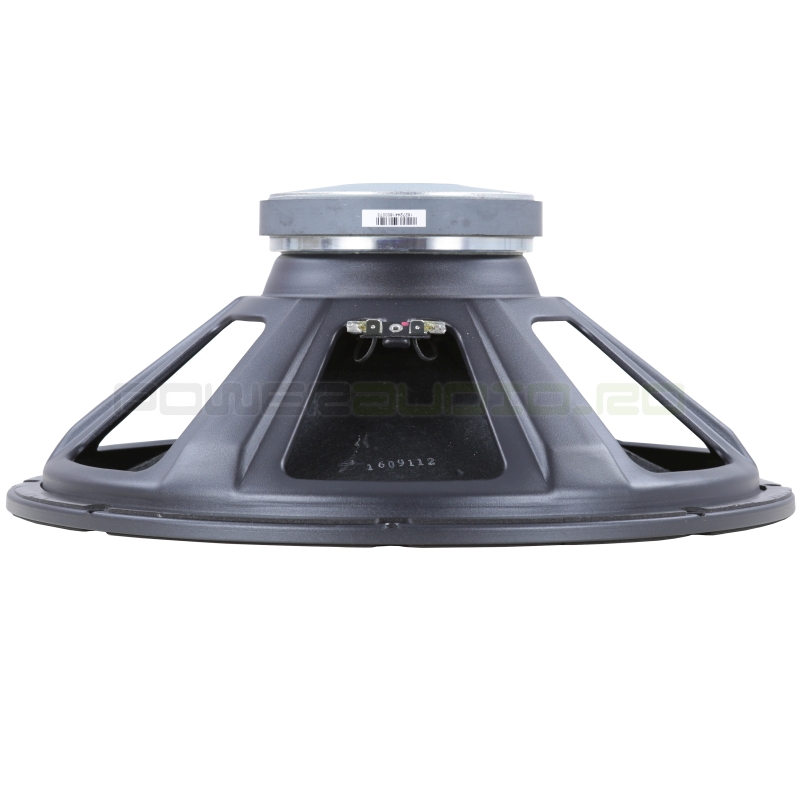

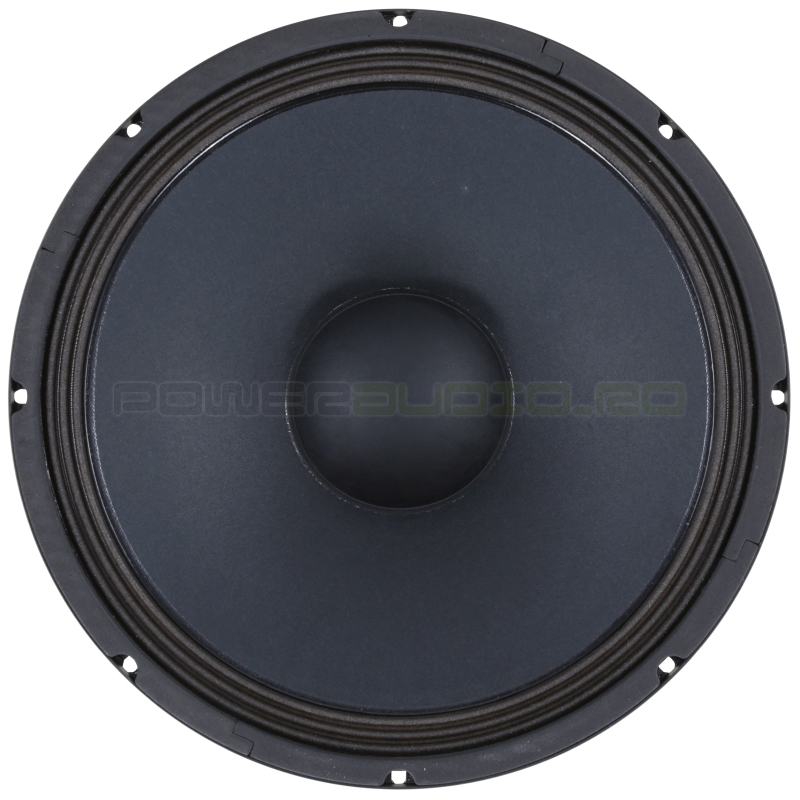

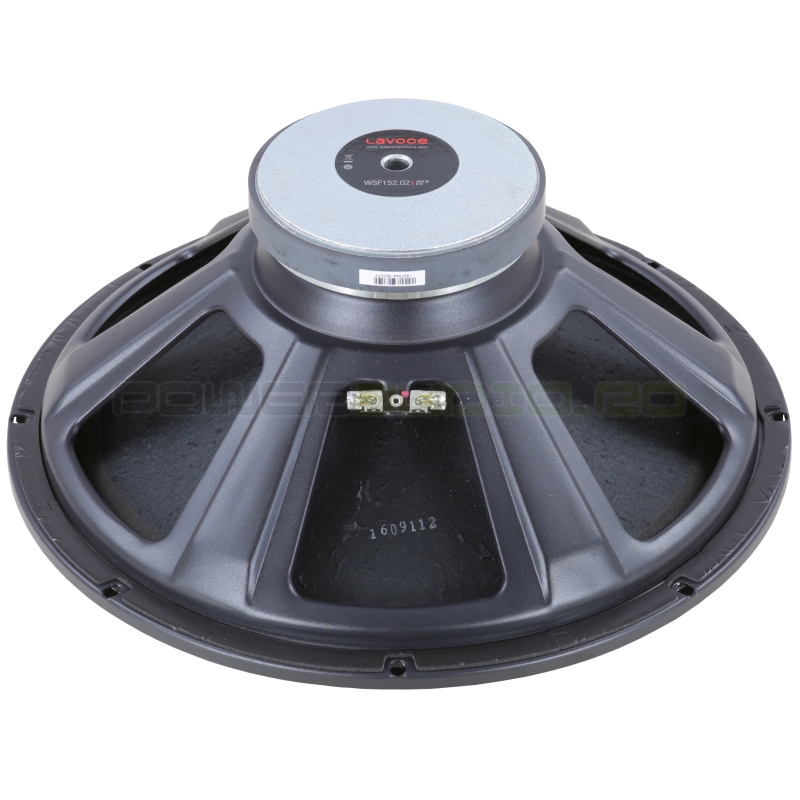

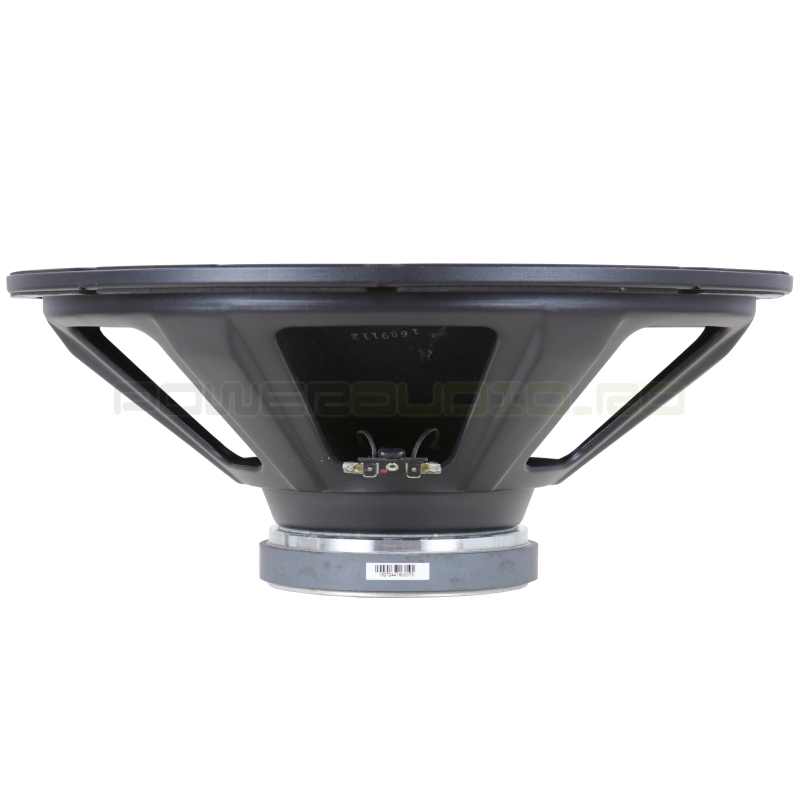

Lavoce WSF152.02 - 15" 200W 8 Ohm Loudspeaker

Key features

- 2 INCH COPPER VOICE COIL
- 98 dB/SPL SENSITIVITY
- 400 WATT PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

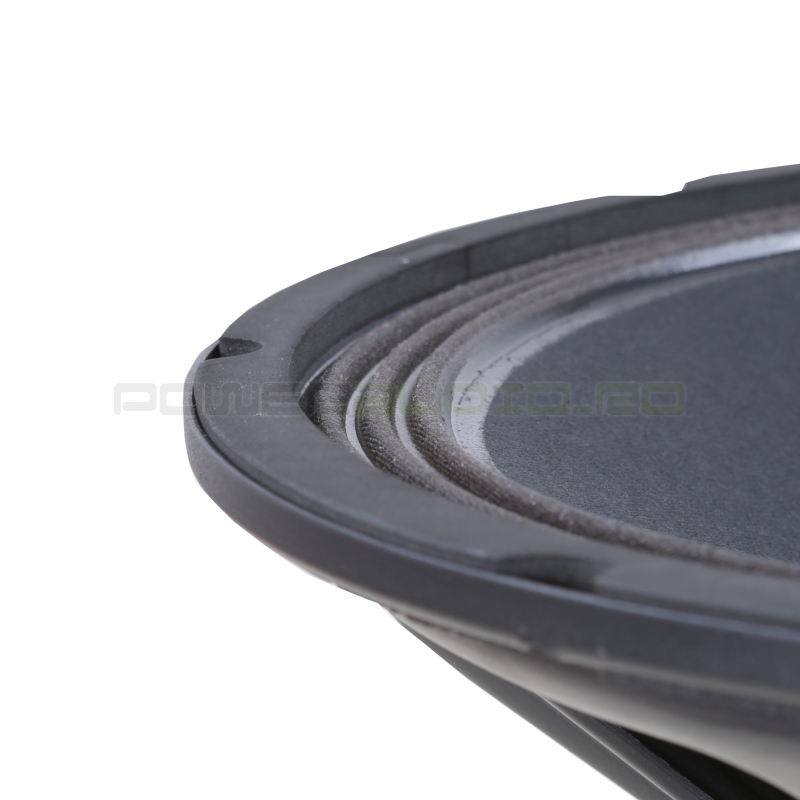

- TRIPLE ROLL SURROUND

Technical specifications

    Nominal Diameter: 380 mm (15in)
    Impedance: 8 Ohm
    Minimum Impedance: 5.9 Ohm
    AES Power: 200 W
    Program Power: 400 W
    Sensitivity: 98 dB
    Frequency Range: 40 - 3000 Hz
    Voice Coil Material: Copper
    Voice Coil Former: Glass Fiber
    Voice Coil Depth: 12.6 mm (0.5in)
    Magnetic Gap Depth: 8 mm (0.31in)
    Cone Material: Water Proof Treated Paper
    Surround Material: Polycotton
    Chassis Material: Steel
    Magnet Material: Ferrite
    Magnet Dims: 140 x 60 x 17 mm
    Driver Displacement Volume: 3.6 l (0.12ft3)

Thiele and small parameters

    DC Resistance (Re) - 5.3 Ohm
    Resonance (Fs) - 43 Hz
    Moving Mass - System (Mms) - 69.2 g
    Compliance (Cms) - 0.20 mm/N
    Force Factor (BL) - 12.8 Tm
    Mechanical Q (Qms) - 4.9
    Electrical Q (Qes) - 0.59
    Total Q (Qts) - 0.53
    Compliance Equivalent Volume (Vas) - 210 L
    Voice Coil Inductance (Le) - 0.63 mH
    Diaphragm Area (Sd) - 855 cm2
    Reference Efficiency (Eta Zero) - 2.60% %
    Maximum Linear Excursion (Xmax) - 4.3 mm
    Maximum Mechanical Excursion (Xmech) - 8.3 mm

Shipping Information

    Net weight: 4.1 kg (9lb)
    Multipack size (WxDxH): 438 x 438 x 204 mm (17.2 x 17.2 x 8in)
    Multipack weight: 6.3 kg (13.8lb)
