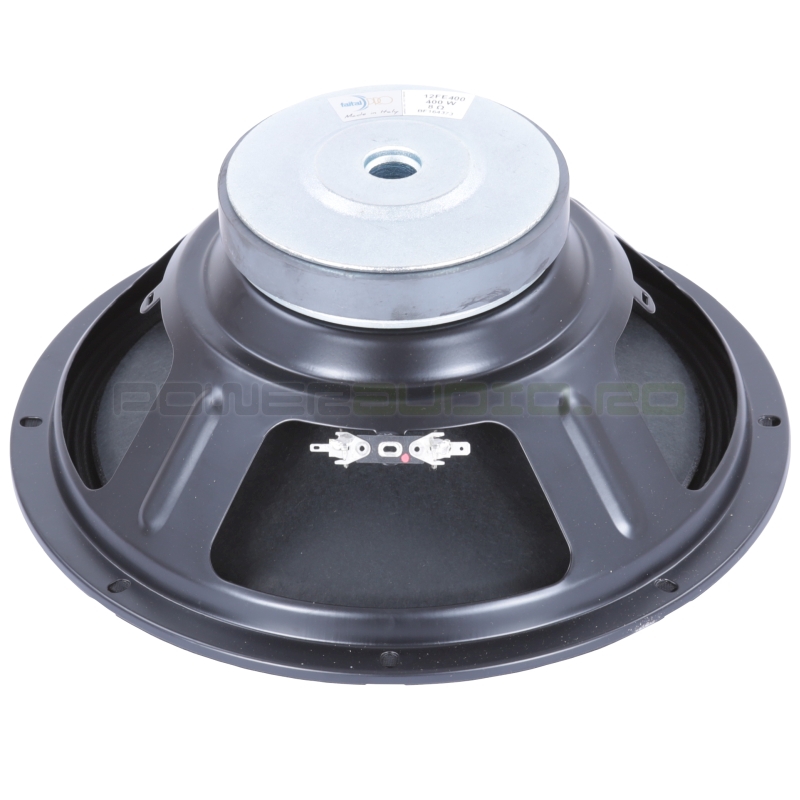

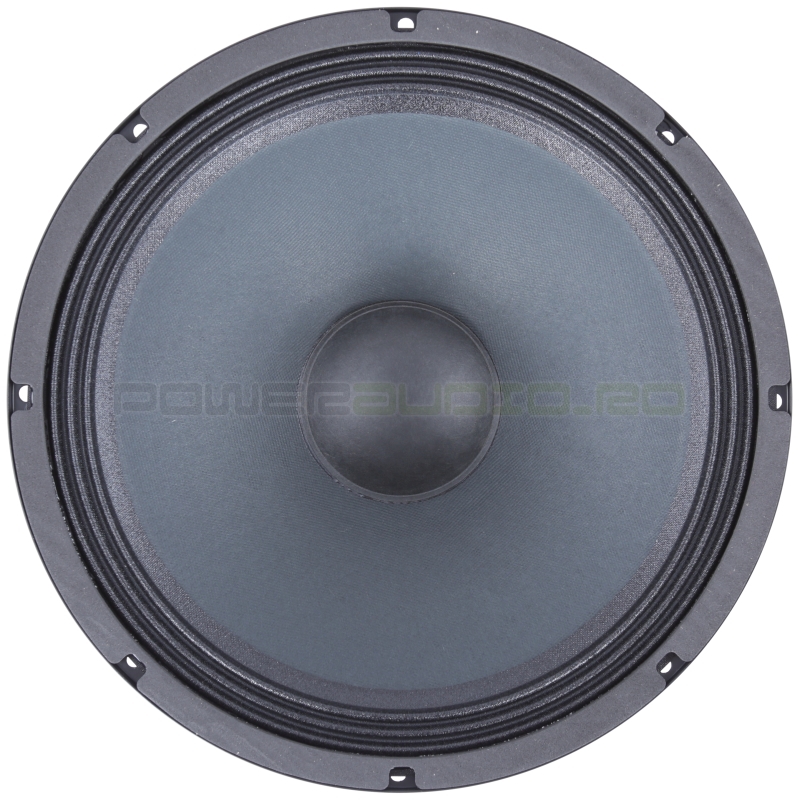

Faital Pro 12FE400 - 200W 8 Ohm Loudspeaker

Introducing the Faital Pro 12FE400, the perfect solution for your high-performance sound needs.
With its impressive 200-watt power handling capacity and 12-inch diameter, this speaker delivers powerful and accurate sound reproduction that will take your music to the next level.
Whether you're a professional musician or a sound enthusiast, the 12FE400 offers exceptional clarity and detail across the entire frequency range, making it ideal for live performances, studio recordings, and sound reinforcement systems.
With its rugged construction and advanced design, the Faital Pro 12FE400 is built to last and deliver reliable performance every time.
Upgrade your sound system today and experience the ultimate in sonic excellence with the Faital Pro 12FE400.

Technical specifications

    Nominal Diameter: 300 mm (12in)
    Overall Diameter: 311 mm (12.24in)
    Bolt Circle Diameter: 294.5 mm (11.59in)
    Baffle Cutout Diameter: 284 mm (11.18in)
    Overall Depth: 131 mm (5.16in)
    Flange/Gasket Thickness: 7.5 mm (0.30in)
    Impedance: 8 ohm
    Minimum Impedance: 6 ohm
    AES Power: 200 W
    Program Power: 400 W
    Sensitivity: 97 dB
    Frequency Range: 55:4000 Hz
    Voice Coil Diameter: 44 mm (1.73in)
    Voice Coil Material: Cu
    Voice Coil Former: Al
    Voice Coil Depth: 13.5 mm (0.53in)
    Magnetic Gap Depth: 8 mm (0.31in)
    Surround Type: Triple
    Spider Profile: 1x constant height waves
    Chassis Material: Steel
    Magnet Material: Ferrite Ring
    Demodulating Ring: No
    Flux Density: 1.10 T
    Driver Displacement Volume: 1.9 L (0.067ft^3)

Thiele and small parameters  Need some help? Read our quick guide to TS Params.

    Resonance (Fs) - 55 Hz
    DC Resistance (Re) - 5 Ohm
    Electrical Q (Qes) - 0.63
    Mechanical Q (Qms) - 6.6
    Total Q (Qts) - 0.57
    Compliance Equivalent Volume (Vas) - 73.6 L
    Diaphragm Area (Sd) - 549 cm2
    Maximum Linear Excursion (Xmax) - 5.42 mm
    Maximum Mechanical Excursion (Xdamage) - 14.9 mm
    Moving Mass - System (Mms) - 47.9 g
    Force Factor (BL) - 11.5 Tm
    Voice Coil Inductance (Le) - 0.75 mH
    Moving Mass - Diaphragm (Mmd) - 33.4 g
    Compliance (Cms) - 0.17 mm/N
    Mechanical Resistance (Rms) - 2.5 Kg/s
    Reference Efficiency (Eta Zero) - 1.90 %
    Efficiency Bandwidth Product (EBP) - 88

Shipping Information

    Net Weight: 3.1 kg (6.8lb)
    Shipping Weight: 3.9 kg (8.6lb)
    Shipping Box: 350 x 346 x 190 mm

Notes

1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
