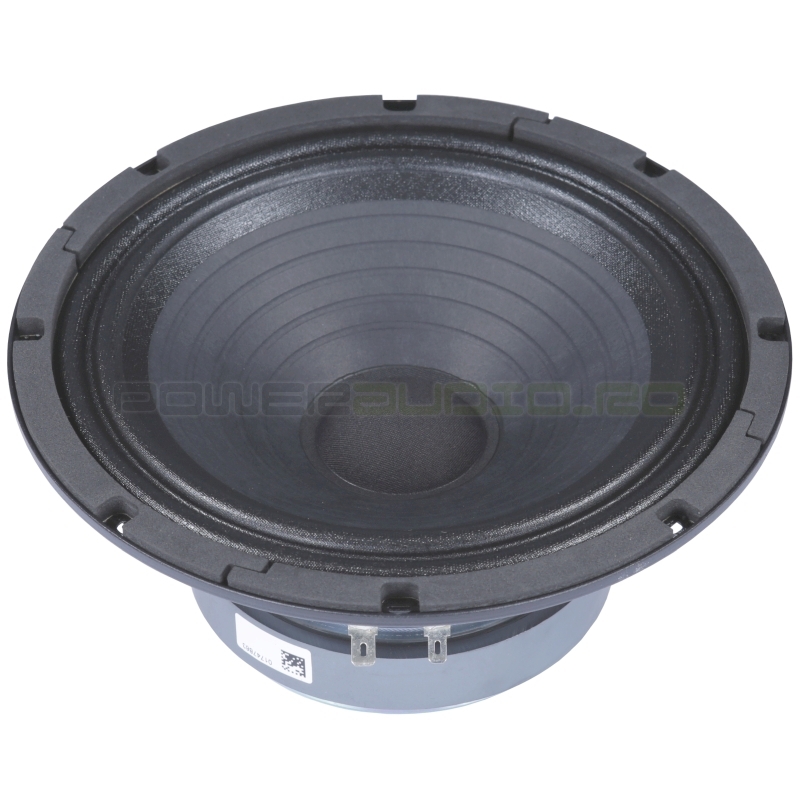

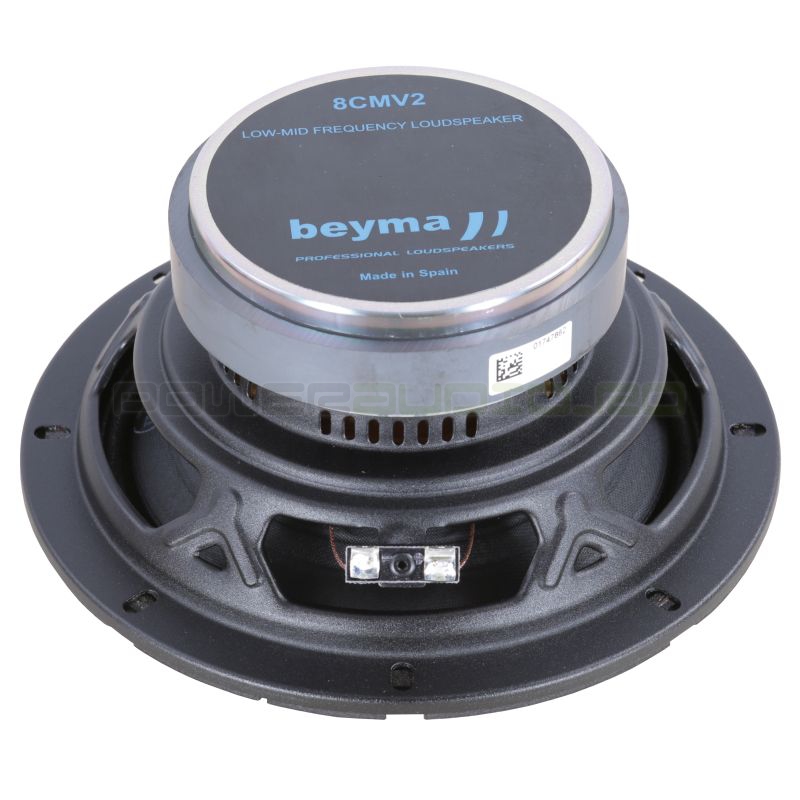

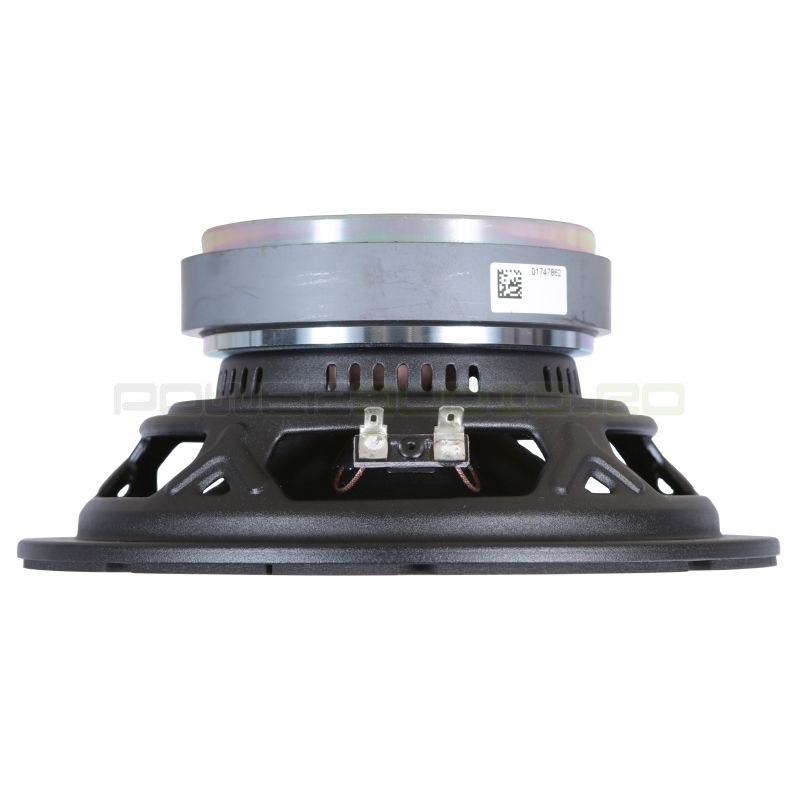

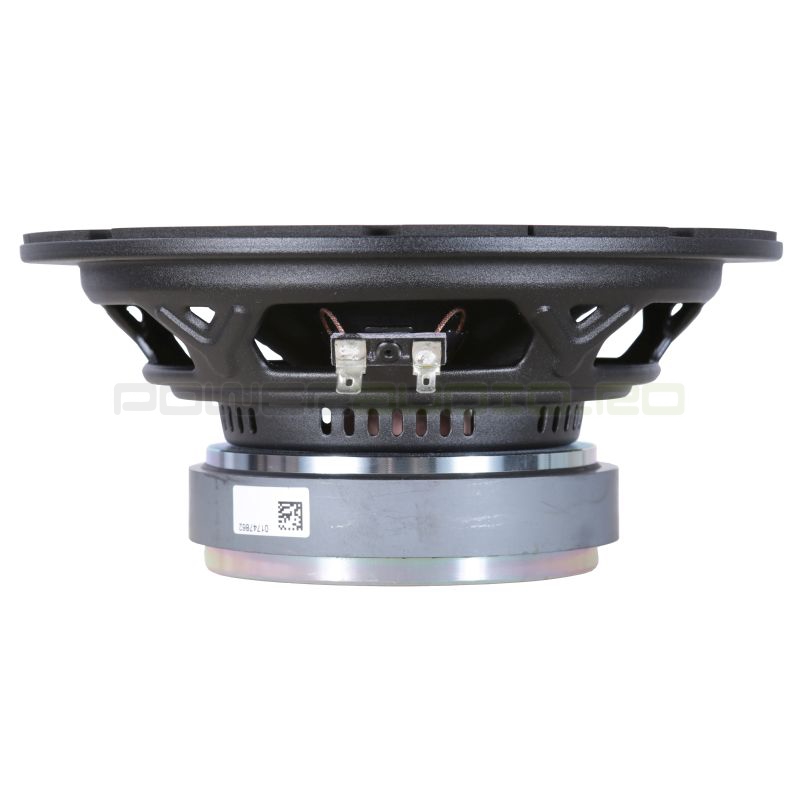

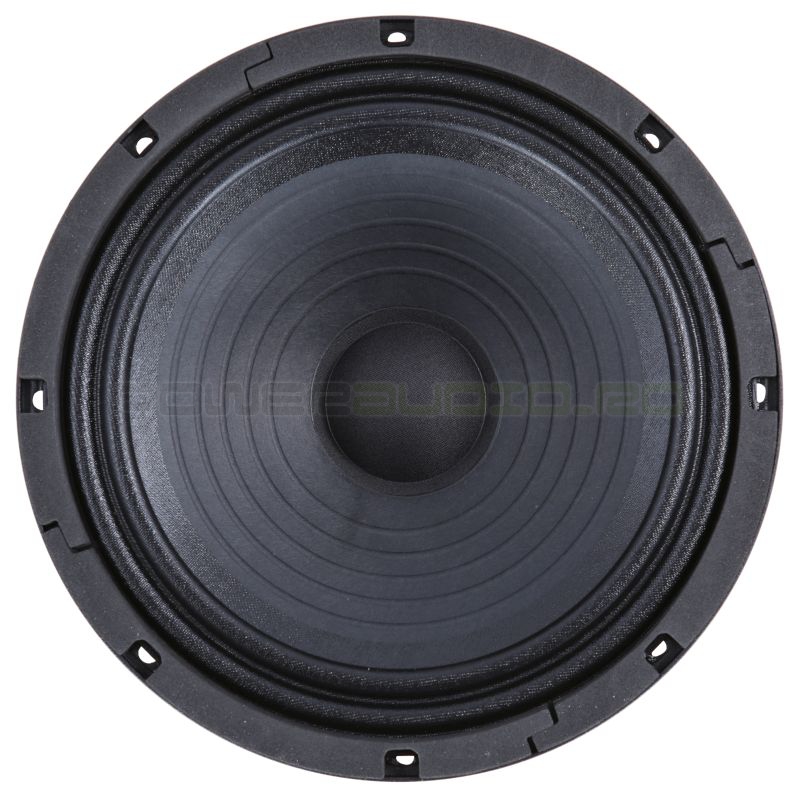

Beyma 8CMV2

The CMV2 series, composed of 5 models (6.5, 8, 10, 12 and 15"), is an extension of Beyma's current offer of pressed steel frame speakers. Designed using their exclusive basket and ceramic magnets, these 100% Made in Spain products present linear Frequency Response Curves, low distortion and a remarkable increase in power; Standing well above of similar products from their competitors.

• Key Features


• High power handling: 500 W program power
• 1.5" CCAW wire voice coil
• High sensitivity: 94 dB (1W / 1m)
• Very linear extended response and low distortion
• Treated double roll cloth surround
• Optimized pressed steel frame
• Ferrite magnet
• Designed for bass and midbass applications in compact vented cabinets

• Technical Specifications
•
• Nominal impedance 8 Ohm
• Power capacity 250 W AES
• Nominal diameter 200 mm 8 in
• Sensitivity 94 dB 1 W/1 m @ ZN
• Minimum impedance 6.4 ohm
• Frequency range 80-8000 Hz
• Program power 500 W
• Recommended enclosure volume 20 l
• Voice coil diameter 38.1 mm 1.5 in
• BL factor 9.6 N /A
• Moving mass 0.021 kg
• Winding length 14 mm
• Air gap height 6 mm
• Xdamage pp 29 mm

• Thiele-Small Parameters


• Fs 75 Hz
• Re 5.1 ohm
• Qms 7.7
• Qes 0.55
• Qts 0.52
• Vas 14.6 l
• Cms 213 mm / N
• Rms 1.3 kg / s
• Efficiency % 1.1
• Sd 0.022 m sq
• Xmax 5.7 mm
• Vd 125 cm cu
• Le @1 kHz 0.6 mH

• Constructive Details


• Depth 92 mm 3.6 in
• Net weight 2.4 kg 5.3 lb
• Total weight 2.6 kg 5.7 lb
• Magnet Ferrite
• Cut out diameter: 280mm
