Beyma 8MC500Nd

Puteti studia proiectele recomandate pentru acest difuzor, aici: https://forumpoweraudio.ro/viewtopic.php?f=137&t=28476&p=207984#p207984

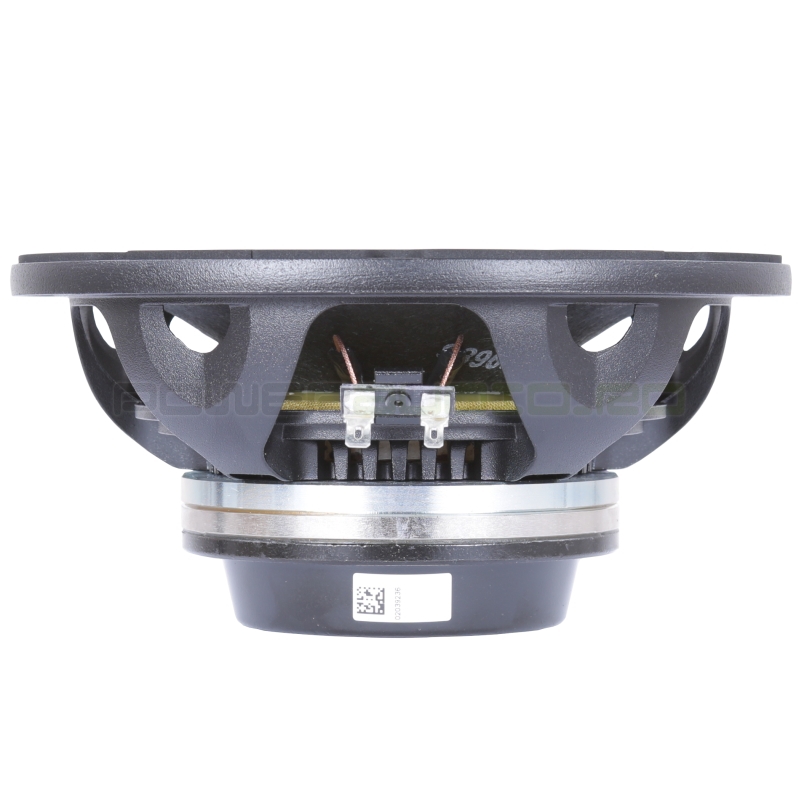

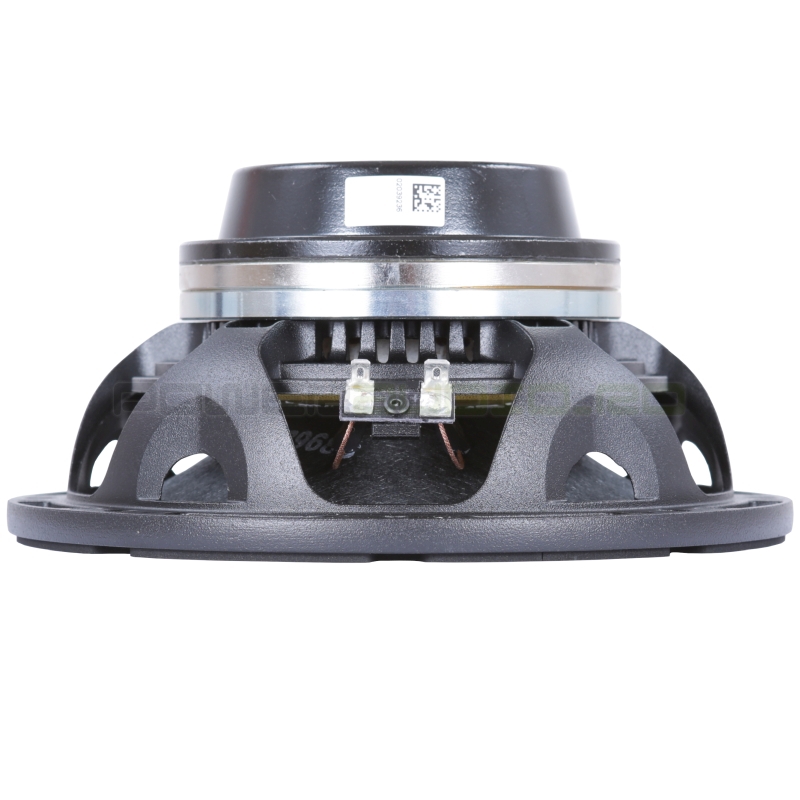

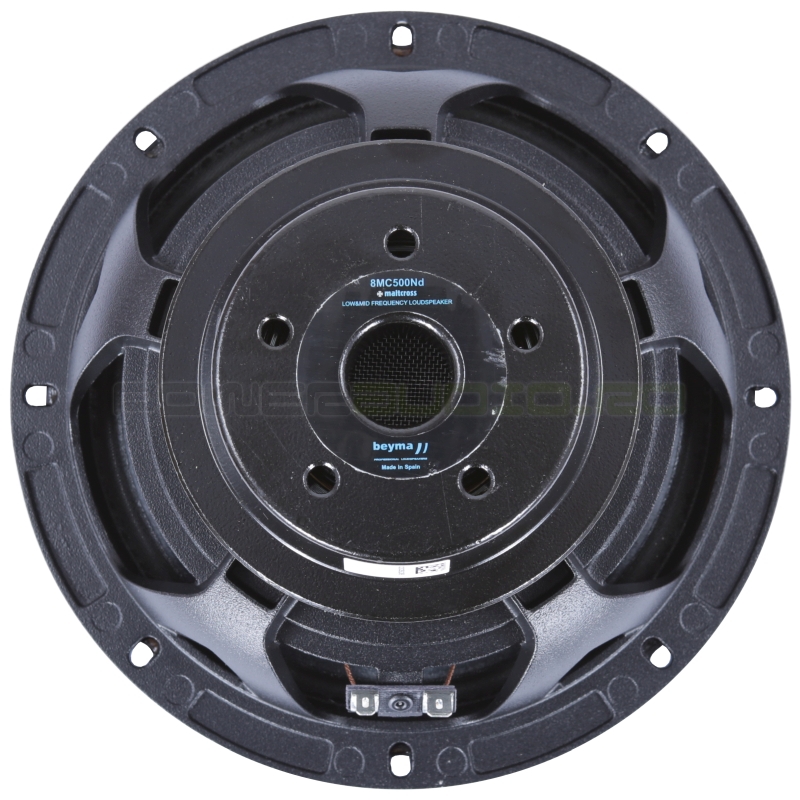

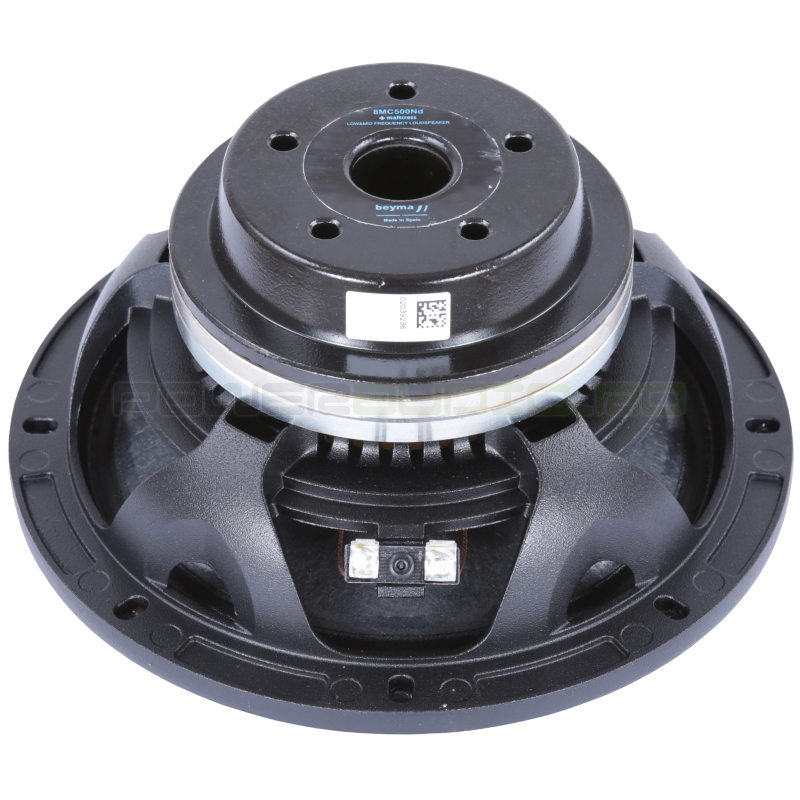

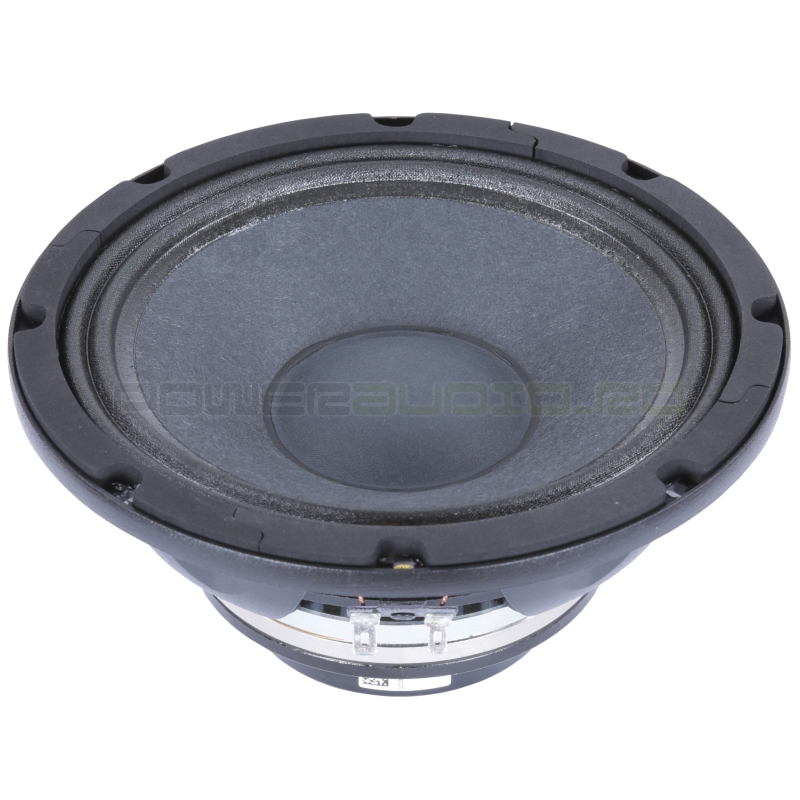

Beyma 8MC500Nd 500W 8" 8 Ohm Loudspeaker Driver

    High power handling: 1000 W program power
    Exclusive Malt Cross Technology Cooling System
    Low power compression losses
    High sensitivity: 98 dB (1W / 1m)
    FEA optimized neodymium magnetic circuit
    Optimized non-linear behaviour
    2.5\' DUO double layer in/out copper voice coil
    Aluminium demodulating ring
    Waterproof cone with treatment for both sides
    Extended controlled displacement: Xmax ± 5 mm
    42 mm peak-to-peak excursion before damage
    Weight 2,8 kg
    Optimized for bass or mid-bass high performance audio systems

TECHNICAL SPECIFICATIONS:

    Nominal diameter 200 mm 8 in
    Nominal impedance 8 Ohm
    Minimum impedance 7.1 ohm
    Power capacity 500 W AES
    Program power 1000 W
    Sensitivity 98 dB 1 W @ 1 m @ ZN
    Frequency range 80-6000 Hz
    Recommended enclosure volume 12 l
    Voice coil diameter 63.5 mm 2.5 in
    BL factor 16.7 N/A
    Moving mass 0.023 kg
    Winding length 14 mm
    Air gap height 8 mm
    Xdamage pp 42 mm

THIELE SMALL PARAMETERS:

    Fs 69 Hz
    Re 5.3 ohm
    Qms 2.6
    Qes 0.19
    Qts 0.18
    Vas 15.9 l
    Cms 231
    Rms 3.8 kg/s
    Efficiency % 2.6
    Sd 220 cm
    Xmax 5 mm

    Le @1 kHz 0.5 mH

CONSTRUCTIVE DETAILS:

    Depth 100 mm 3.9 in
    Net weight 2.8 kg 6.2 lb
    Total weight 3.1 kg 6.83 lb
    Magnet Neodymium

Descarca fisa tehnica
