Beyma 10CMV2

Beyma 10CMV2 - 8 Ohms 10" loudspeaker driver, 250 watts AES, 500 watts music program

The CMV2 series, composed of 5 models (6.5, 8, 10, 12 and 15"), is an extension of Beyma's current offer of pressed steel frame speakers. Designed using their exclusive basket and ceramic magnets, these 100% Made in Spain products present linear Frequency Response Curves, low distortion and a remarkable increase in power; Standing well above of similar products from their competitors.

    Key Features

    High power handling: 500 W program power
    1.5' copper wire voice coil
    High sensitivity: 95 dB (1W / 1m)
    Very linear extended response and low distortion
    Treated double roll cloth surround
    Optimized pressed steel frame
    Ferrite magnet
    Designed for bass and midbass applications in small vented cabinets
    Technical Specifications

    Nominal impedance 8 Ohm
    Power capacity 250 W AES
    Nominal diameter 250 mm 10 in
    Sensitivity 95 dB 1 W/1 m @ ZN
    Minimum impedance 7.2 ohm
    Frequency range 60-5000 Hz
    Program power 500 W
    Recommended enclosure volume 30 l
    Voice coil diameter 38.1 mm 1.5 in
    BL factor 13.4 N/A
    Moving mass 0.042 kg
    Winding length 16 mm
    Air gap height 7 mm
    Xdamage pp 30 mm

    Thiele-Small Parameters

    Fs 52 Hz
    Re 5.9 ohm
    Qms 3.8
    Qes 0.47
    Qts 0.42
    Vas 44 l
    Cms 216 µm / N
    Rms 3.7 kg / s
    Efficiency % 1.3
    Sd 0.038 m²
    Xmax 6.5 mm
    Vd 247 cm³
    Le @1 kHz 0.8 mH

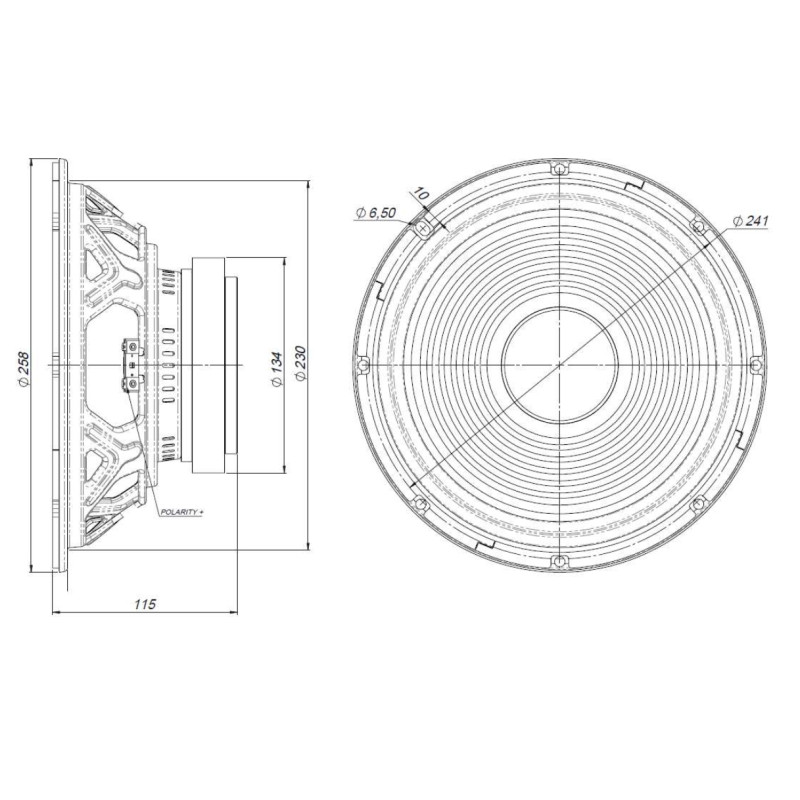

    Constructive Details

    Depth 115 mm 4.52 in
    Net weight 3.1 kg 6.82 lb
    Total weight 3.5 kg 7.77 lb
    Magnet Ferrite
