Nexus-Acoustics - MR8XTN Neo

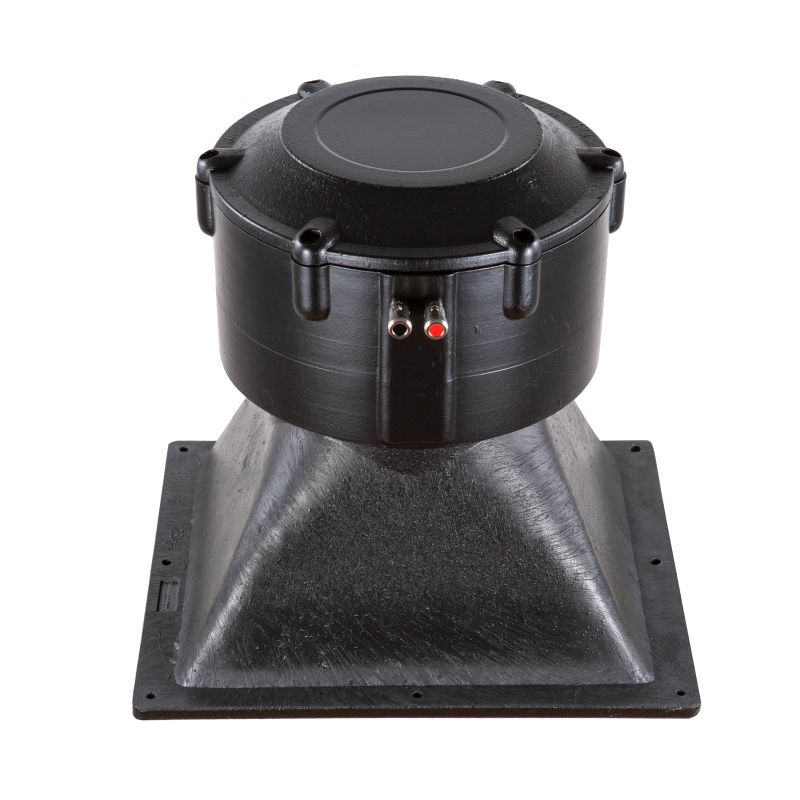

High efficiency, high output mid frequency transducer for horn and multi-way speakers.

Main features:

• High efficiency (99dB 1W/1m) custom 8" transducer optimised for horn loading
• Increased sensitivity (to approx 104-105dB 1W/1m) from horn loading
• Phase plug for extended High frequency response

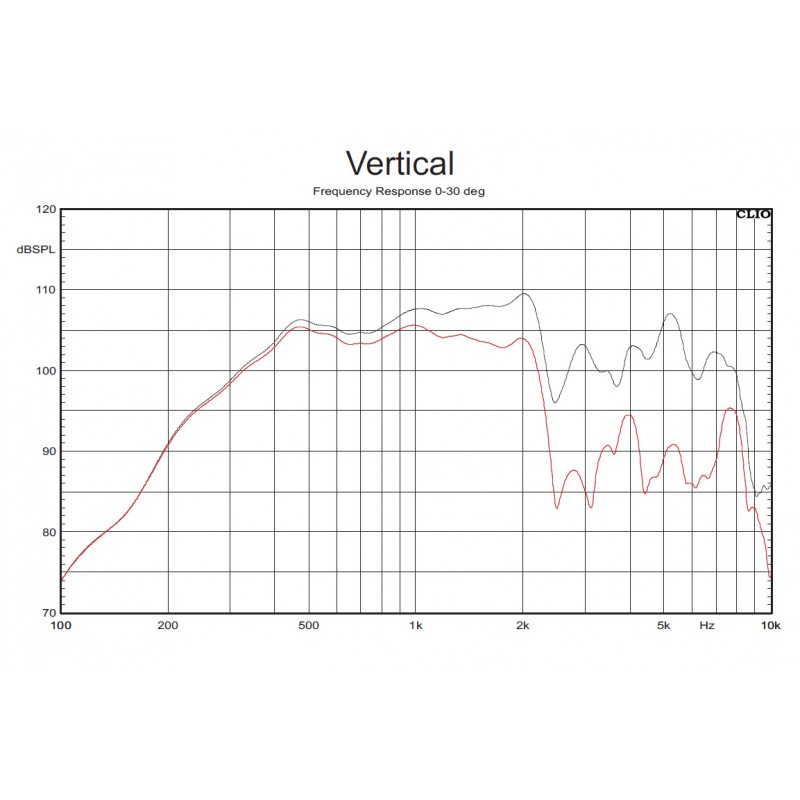

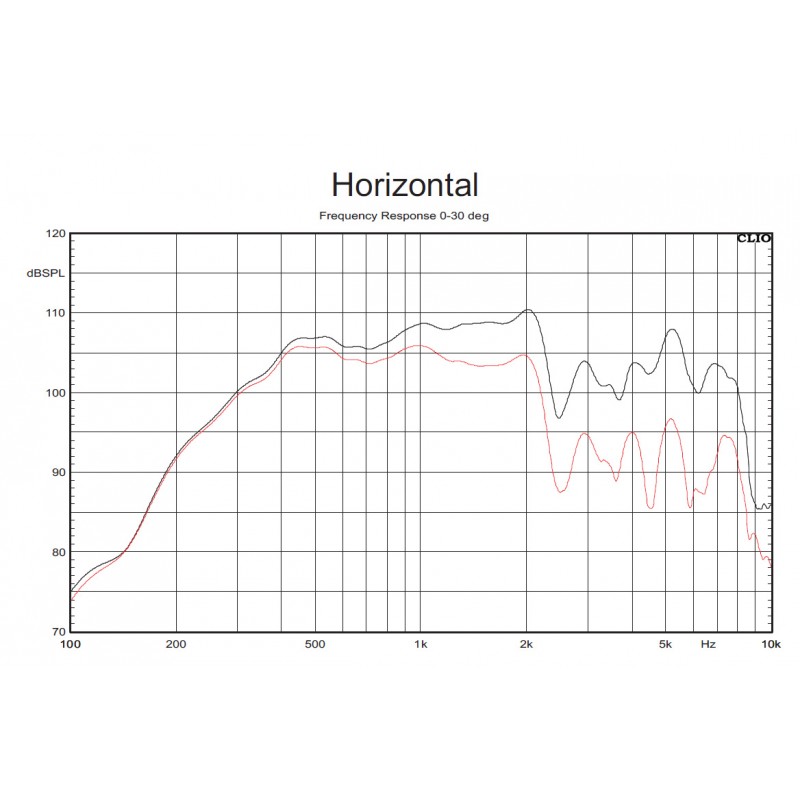

• 300Hz - 3Khz operating range

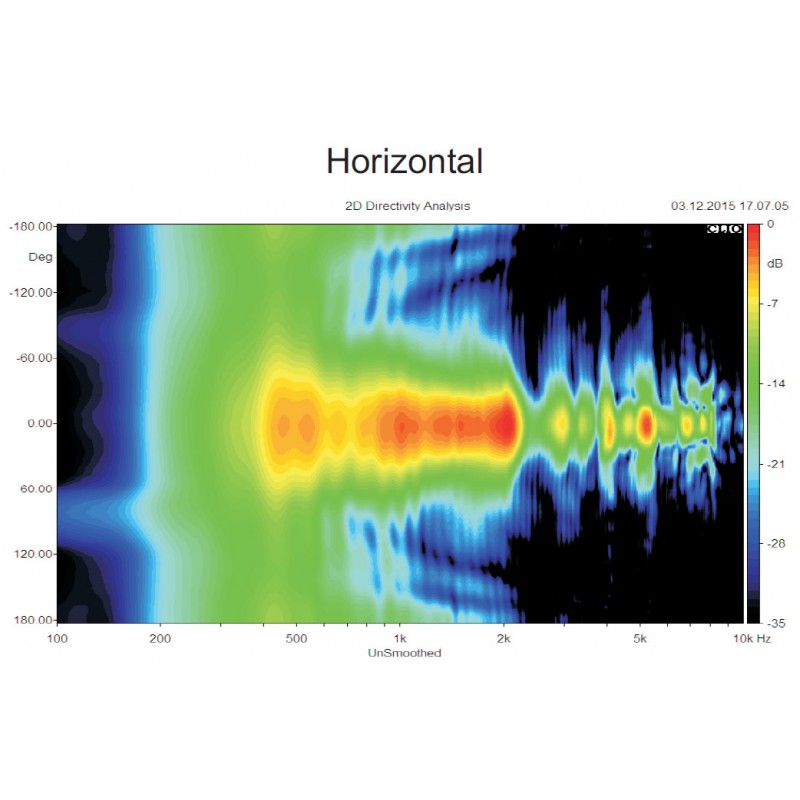

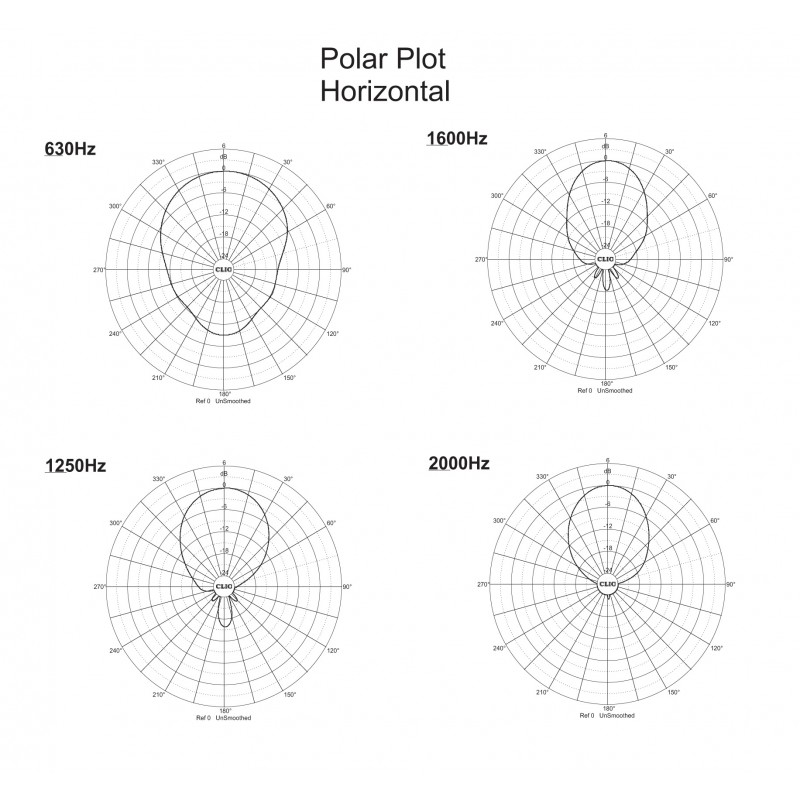

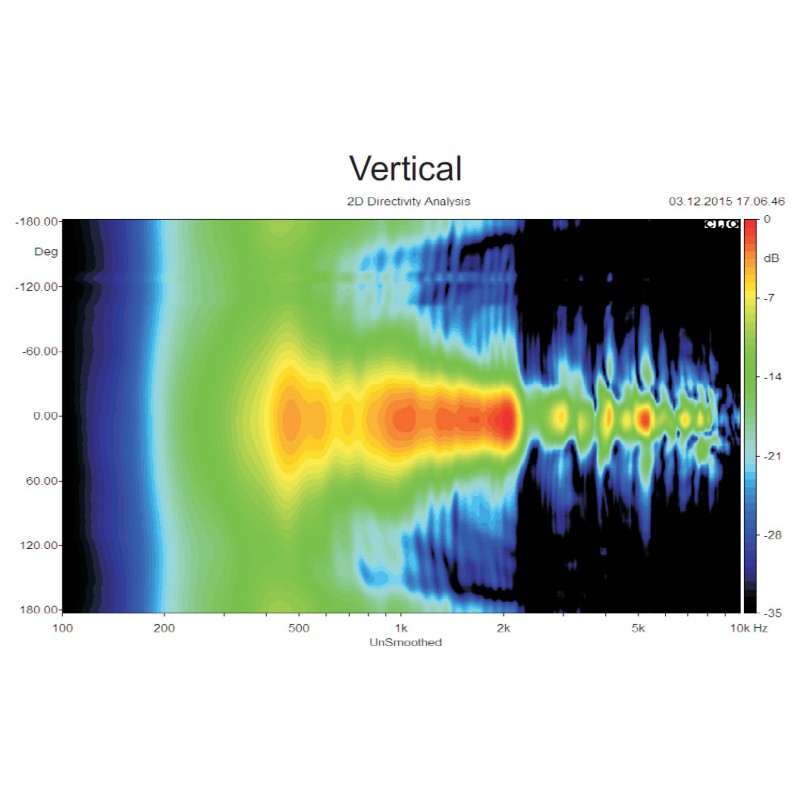

• Controlled dispersion for large format systems
• Net weight: 5.3kg

Specifications:


• Power rating 300W program 150W AES
• Aluminium cast frame
• Edgewound copper clad aluminum voice coil
• Dimensions HxWxD: 286 x 335 x 340mm
• Baffle cutout HxW: 247 x 285mm
•
