Oberton 6NM150
  • Oberton 6NM150
  • Oberton 6NM150
  • Oberton 6NM150
  • Oberton 6NM150
  • Oberton 6NM150
  • Oberton 6NM150
  • Oberton 6NM150
  • Oberton 6NM150

Cere mai multe informatii despre Oberton 6NM150 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 470,00 Lei
Fără TVA: 394,96 Lei
8 bucati in stoc
Producător: Oberton
Cod produs: 12817
-
+

Application : Power midrange speaker

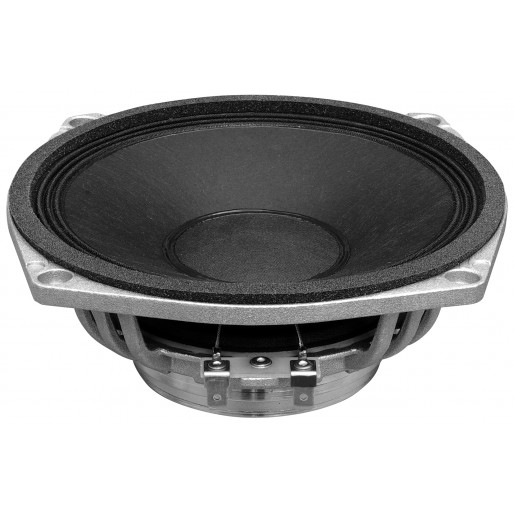

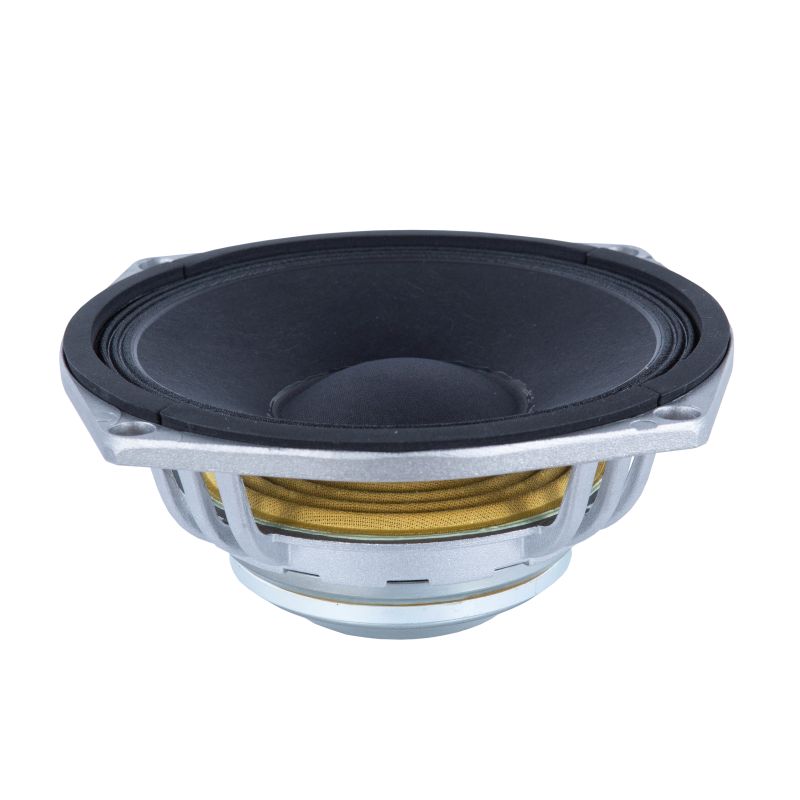

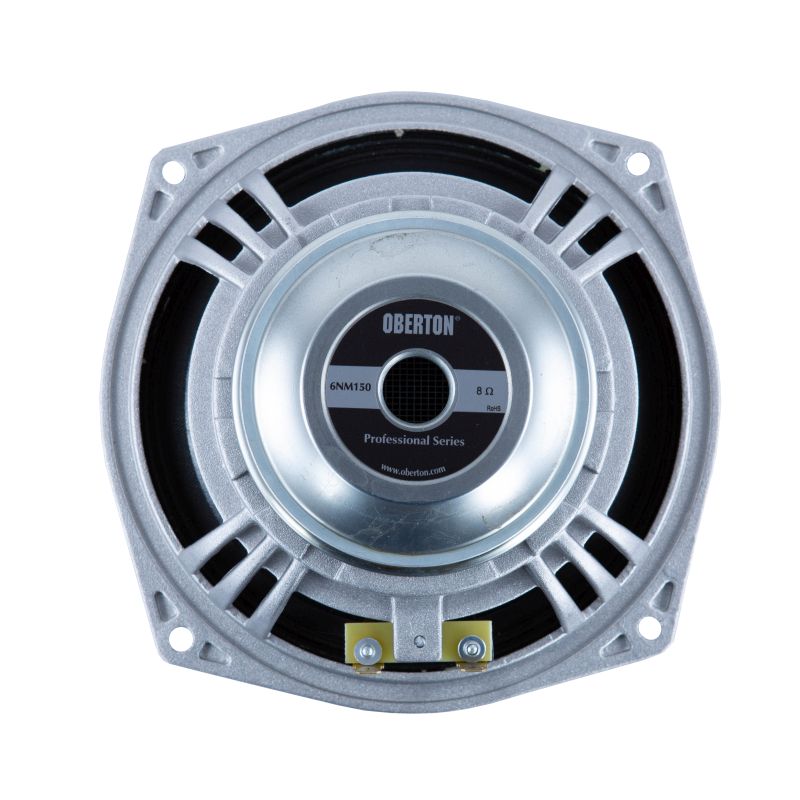

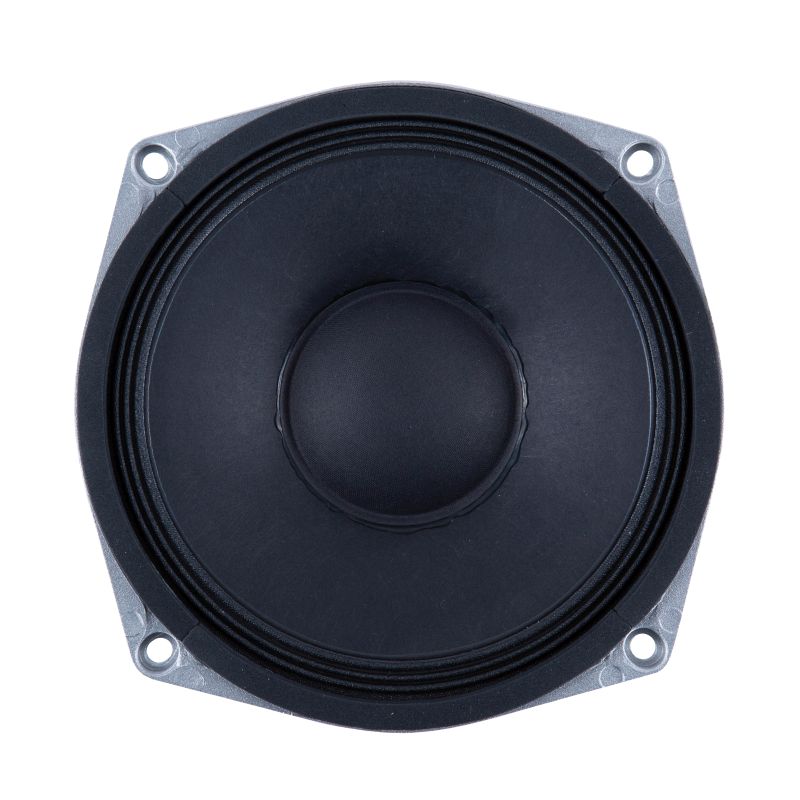

The 6NM150 is high efficiency, high power midrange neodymium loudspeaker , specially designed to use in 3 way boxes and line array systems. It features 44 mm aluminium voice coil, vented aluminium die cast frame with powerful neodymium magnet structure, which achieved very light weight of the speaker.

SPECIFICATIONS



THIELE-SMALL PARAMETERS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

6.5"/170 inch/mm
8 Ohm
7.22 Ohm
150 W
300 W
(500-5000 Hz) 97 dB/W/m
200 – 5000 Hz
44 mm
Aluminium
Kapton™
8 mm
7 mm
Paper
Die cast aluminium
Neodymium
1.42 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

124 Hz
5.96
0.403
0.377
4.00 Litres
11.08 grams
6.25 Ohms
139 cm2
± 2.25 mm
0.148 mm/N
11.58 T.m
0.30 mH

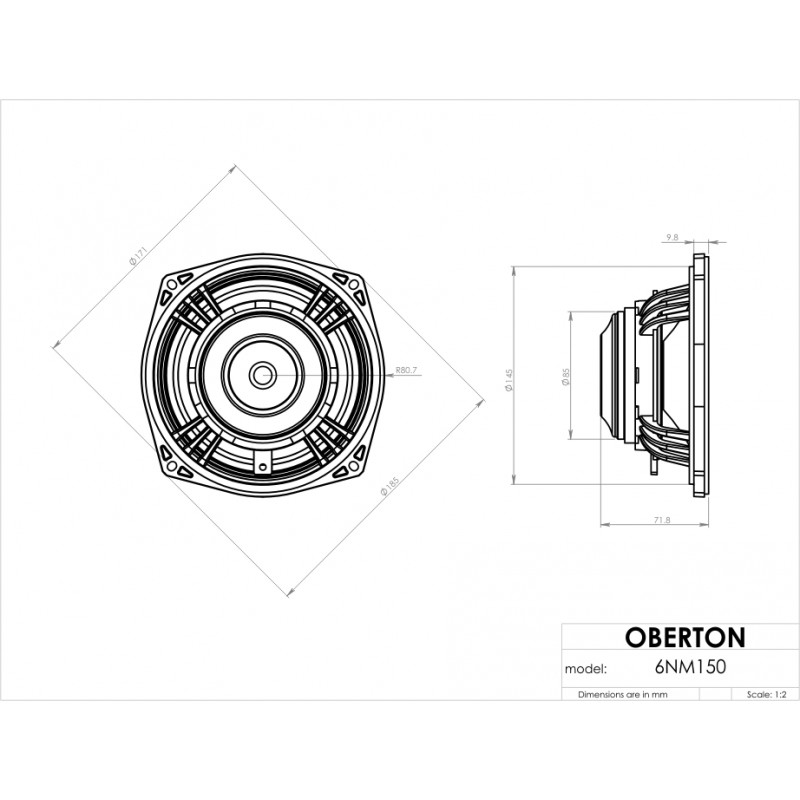

MOUNTING INFORMATION

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 9 L box enclosure tuned 70 Hz using a 100-2000 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

185 mm
145 mm
4 elliptic 5.5 / 6.5 mm
171 mm
72 mm
1.05 kg


Descarca fisa tehnica click to download pdf
