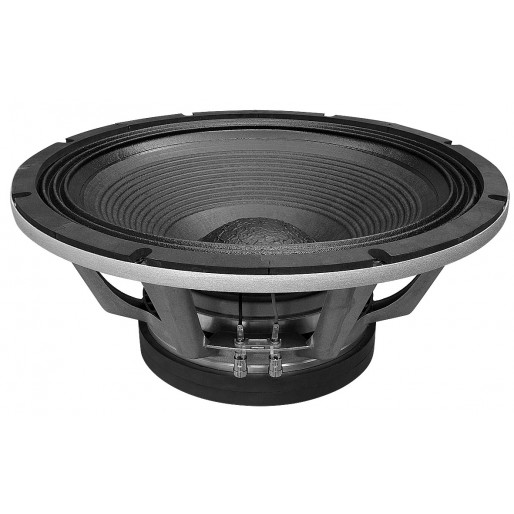

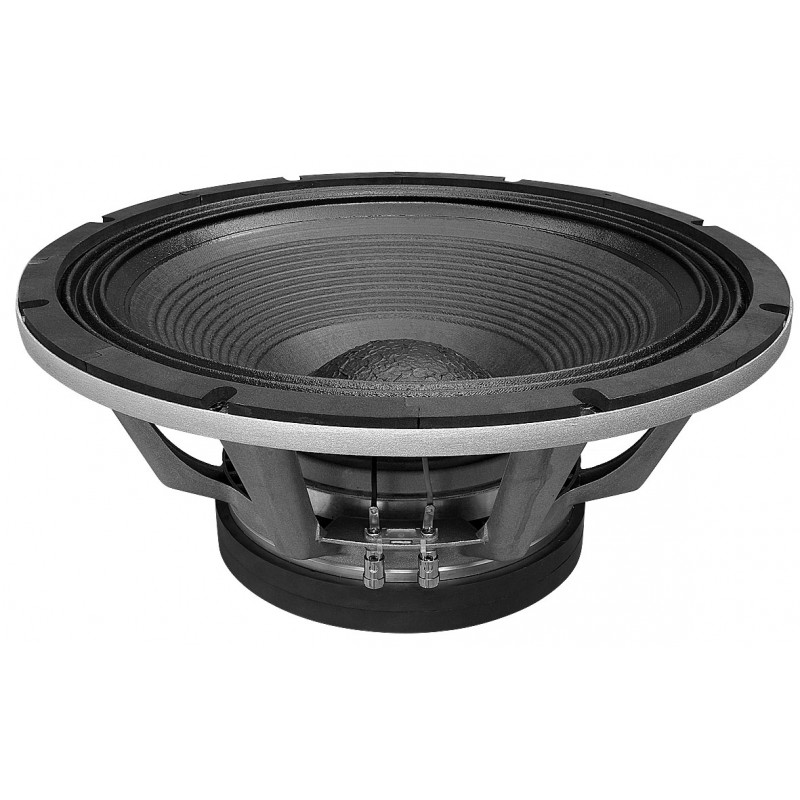

Oberton 18XB1500

Cere mai multe informatii despre Oberton 18XB1500 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.750,00 Lei
Fără TVA: 1.470,59 Lei
la comanda - 6 Saptamani
Producător: Oberton
Cod produs: Oberton 18XB1500
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: Oberton 18XB1500 difuzor profesional

Application : Power bass

The 18XB1500 ferrite bass loudspeaker is specially designed for horn application to deliver very high impact bass response, with exceptional high power capacity. It incorporates an 4.5" sandwich voice coil, double silicone spider assembly, paper cone with carbon fibers and die cast vented aluminium frame. Powerful, vented magnetic structure with double demodulating rings reduced power compression. The result is high efficient transducer for bass horn applications, with the ability to handle high excursion with low distortion and reduced thermal power compression.





SPECIFICATIONS



THIELE-SMALL PARAMETERS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

18"/461 inch/mm
8 Ohm
6.18 Ohm
1500 W
3000 W
depends on the horn
30 - 1000 Hz
115 mm (4.5")
Copper
Glassfiber
29 mm
14 mm
paper with carbon fibers
Die cast aluminium
Ferrite
1.10 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

35.80 Hz
10.52
0.229
0.225
192.5 Litres
212 grams
5.28 Ohms
1158 cm2
± 11 mm
0.112 mm/N
31.58 T.m
1.53 mH



MOUNTING INFORMATION

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 180 L box enclosure tuned 43 Hz using a 40-400 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

461 mm
416 mm
8 eliptic 7 x 8,5 mm
438/441 mm
207 mm
16.8 kg
