Cere mai multe informatii despre Oberton 15NB500 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.260,00 Lei
Fără TVA: 1.058,82 Lei
2 bucati in stoc
Producător: Oberton
Cod produs: 12218
-
+

Application : High power woofer

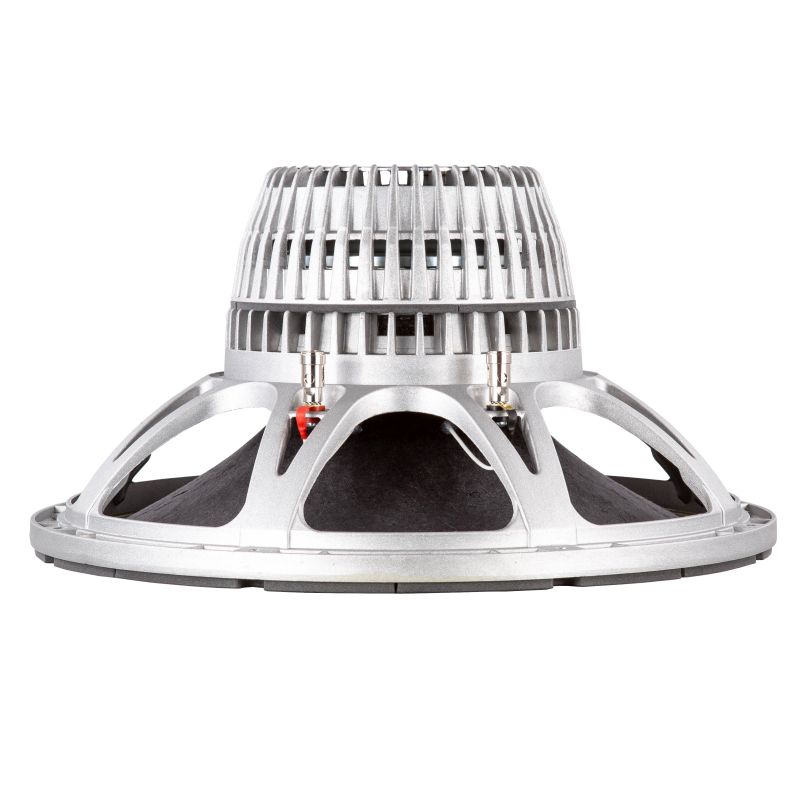

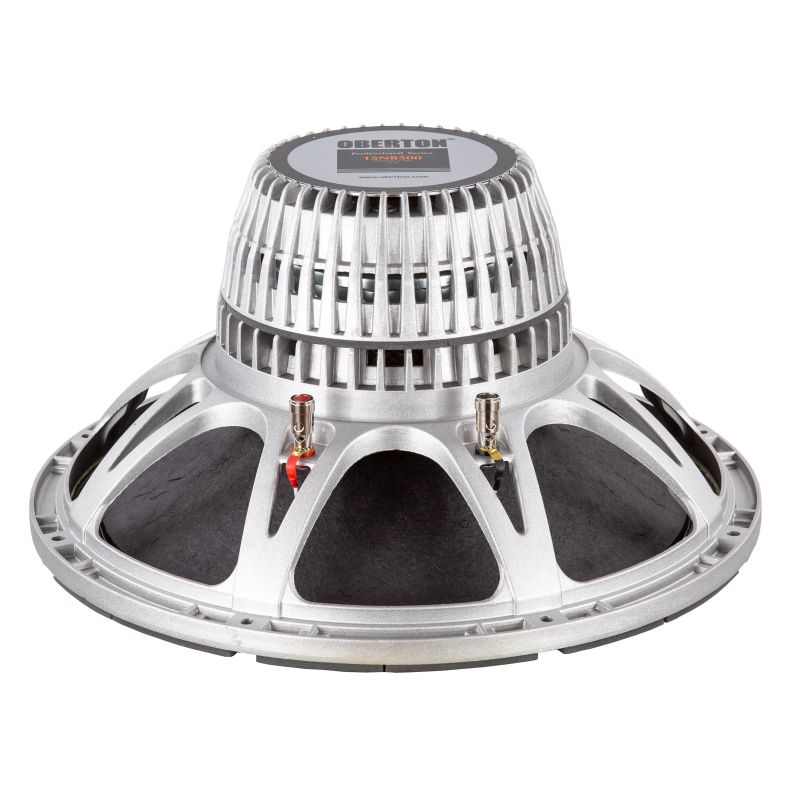

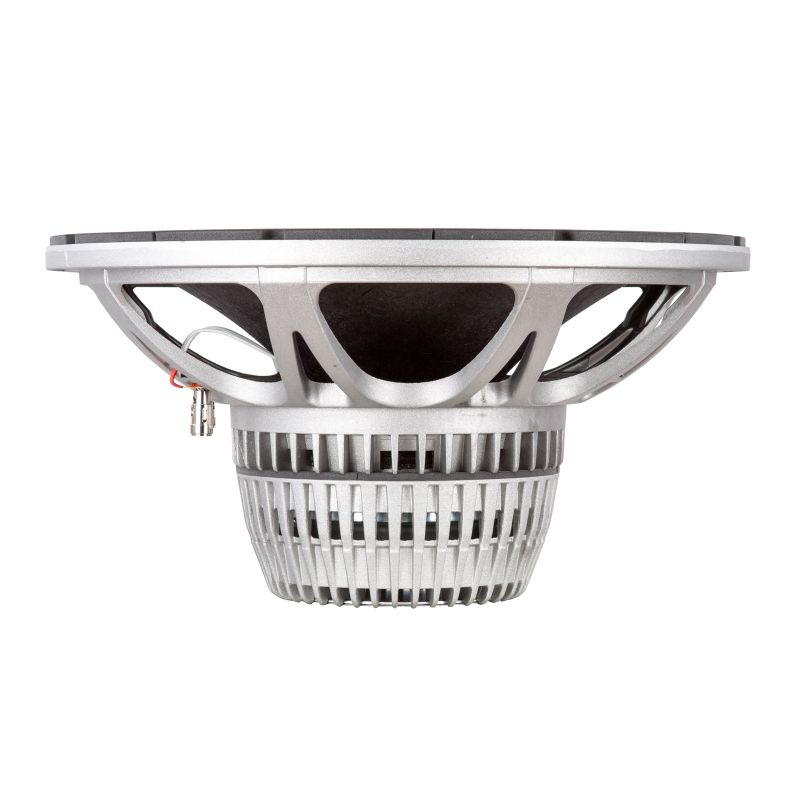

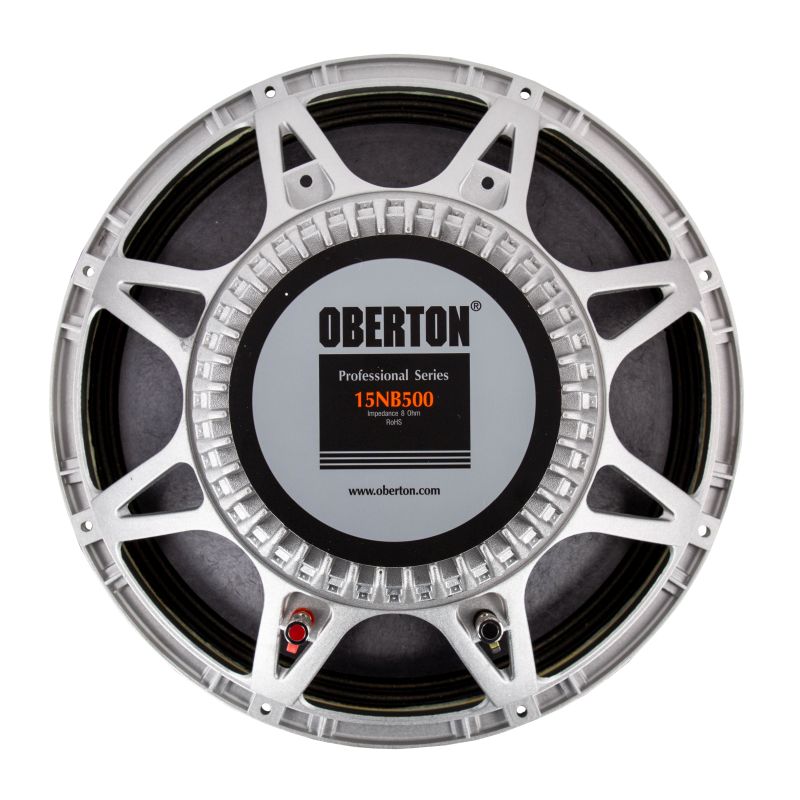

15NB500 loudspeaker combining good linearity and efficiency with high power handling capabilities, with use of 77 mm voice coil and double silicone spider. It features aluminium die cast frame with integrated triple demodulating rings and vented neodymium magnet structure. The massive heatsink improve the cooling of the magnet structure, which reduce power compression. 15NB500 is suitable for application in a wide variety of enclosure types and particularly as LF driver in 2- or 3- way boxes.



SPECIFICATIONS



THIELE-SMALL PARAMETERS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

15"/388 inch/mm
8 Ohm
6.65 Ohm
500 W
1000 W
(60-2000 Hz) 99 dB/W/m
42 - 2500 Hz
77 mm
Copper
Glass fiber
20 mm
11 mm
Paper with Glass fiber
Die Cast Aluminium
Neodymium
1.30 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

42.77 Hz
11.97
0.260
0.255
121.46 litres
109.57 grams
5.23 Ohms
829.6 cm2
±7.25 mm
0.126 mm/N
24.31 T.m
1.14 mH

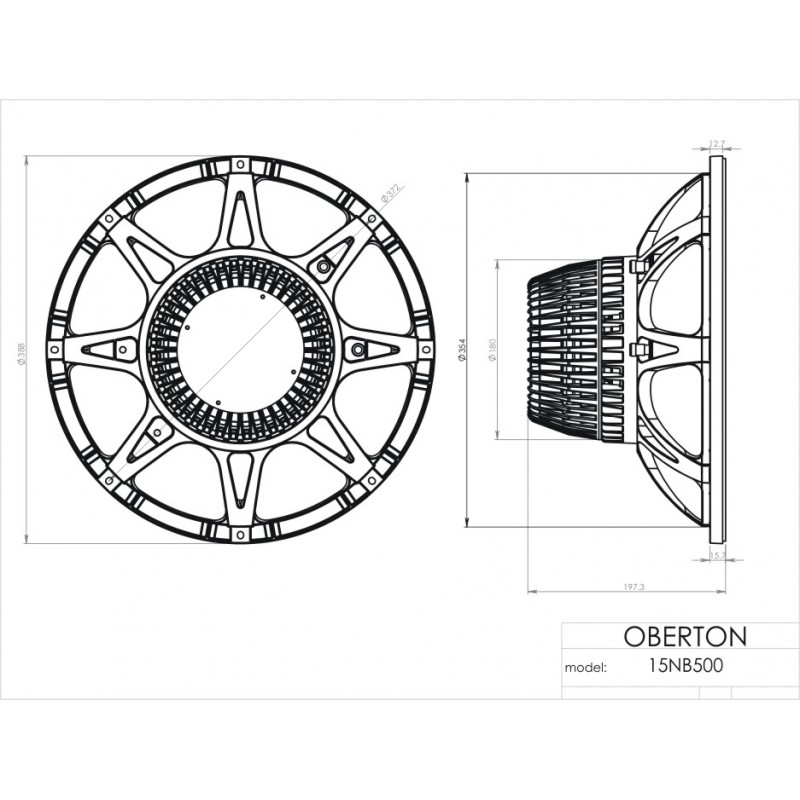

MOUNTING INFORMATION

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 125 L box enclosure tuned 56 Hz using a 40-400 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

388 mm
354 mm
8 eliptic 7x8 mm
370/372 mm
197.3 mm
5.4 kg


Descarca fisa tehnica click to download pdf
