Oberton 10NM300
  • Oberton 10NM300
  • Oberton 10NM300

Cere mai multe informatii despre Oberton 10NM300 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.100,00 Lei
Fără TVA: 924,37 Lei
la comanda - 6 Saptamani
Producător: Oberton
Cod produs: Oberton 10NM300
Puncte de recompensă: 12
-
+

Application : Power midrange speaker

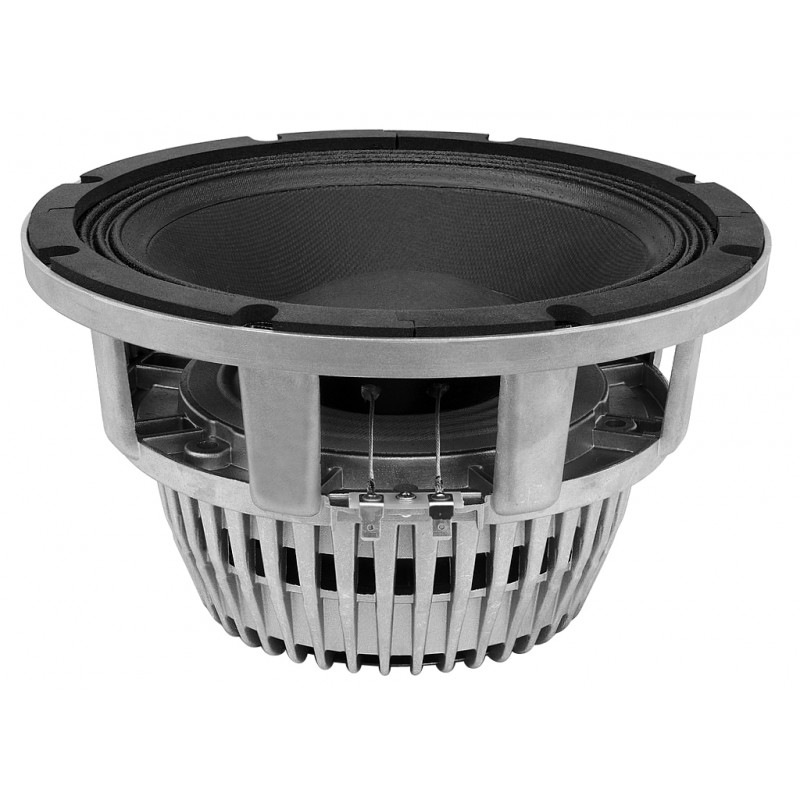

The 10NM300 neodymium loudspeaker is combining high efficiency, wide range and high power handling capability with use of 77 mm aluminium voice coil. It features aluminium die cast frame with vented neodymium magnet structure. The massive heatsink improves the cooling of the magnet structure, which reduce power compression. It is suitable for application as high power midrange or LF driver in 2-way satellite systems.



SPECIFICATIONS



THIELE-SMALL PARAMETERS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

10"/262 inch/mm
8 Ohm
7.16 Ohm
400 W
800 W
(200-2000 Hz) 100 dB/W/m
100 - 4000Hz
77 mm
Aluminium
Kapton™
15 mm
9 mm
Paper
Die cast aluminium
Neodymium
1.45 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

71.36 Hz
9.15
0.214
0.209
20.61 Litres
34.62 grams
5.58 Ohms
317.3 cm2
±5.25 mm
0.144 mm/N
20.12 T.m
0.62 mH

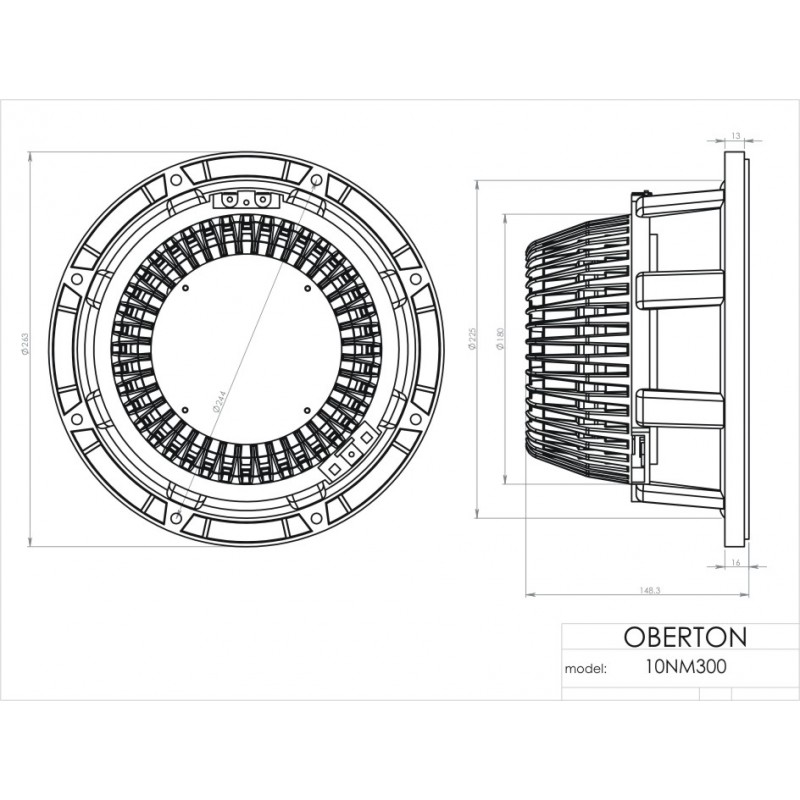

MOUNTING INFORMATION

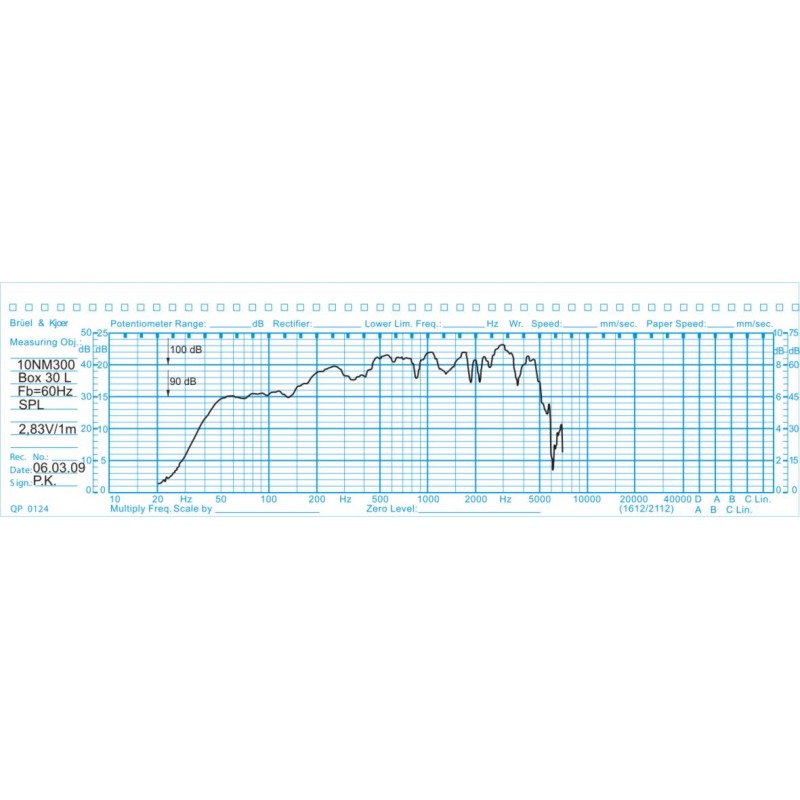

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 30 L box enclosure tuned 60 Hz using a 50-1000 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

262 mm
228 mm
8 with dia. 7 mm
244 mm
148.3 mm
4.75 kg


Descarca fisa tehnica click to download pdf
