Application: Stage monitors and compact bass reflex boxes.

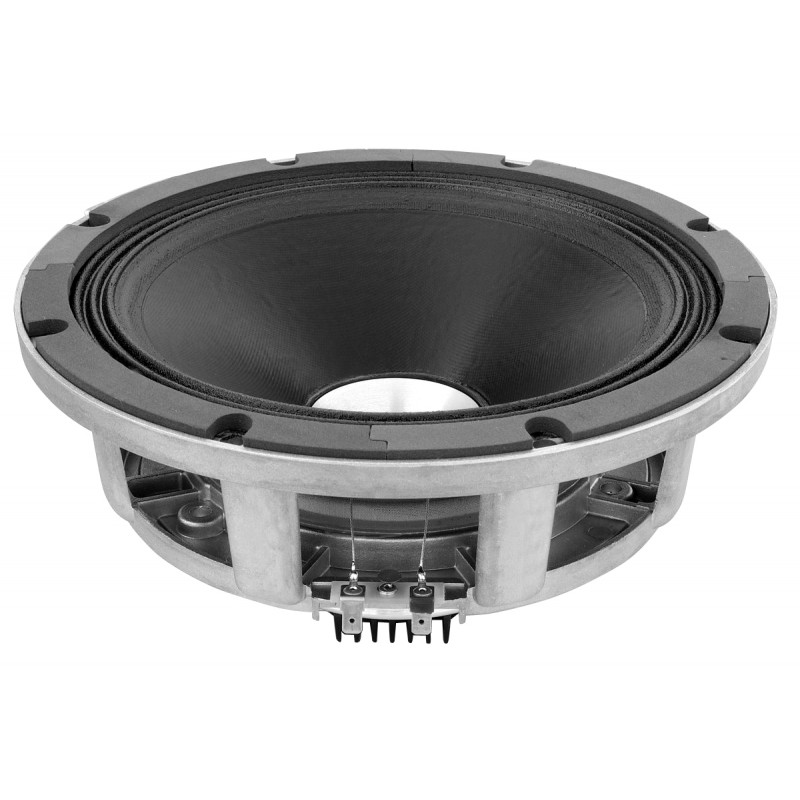

Description: The 10NCX1 is a 10" / 1" coaxial transducer designed for use in compact reflex enclosures and stage monitors with a nominal dispersion of 80 degrees.
The low profile, smooth curvilinear LF cone provides smooth response within its intended frequency range and water prove protective coating, allowing application in a wide range of environments. The state of the art  51 mm (2 in) LF voice coil has Kapton former, which together with high temperature resistant resin ensure high reliability by high power.

Double aluminium demodulating rings on the magnet structure reduce distortion and inductance and improve transient response.

The neodymium 1" exit compression driver adopted is our ND2545 model.

The HF driver diaphragm assembly, using triple layer polyester dome this together with phasing plug improve linearity of frequency response in high end.

Because of design of single magnet assembly the speaker has low weight and compact size.



SPECIFICATIONS

THIELE-SMALL PARAMETERS

Nominal diameter
Impedance
Minimum impedance LF
Frequency range
Dispersion angle

LF unit
Sensitivity (200-2000 Hz)
Power Capacity AES ¹
Program Power ²
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

HF unit
Minimum impedance HF
DC resistance
Sensitivity (1000-15000 Hz)
Power capacity (1-20 kHz)
Program power
Voice coil diameter
Winding material
Diaphragm material
Flux density

262 mm (10 in)
LF 8 Ohm /HF 16 Ohm
6.01 Ohm

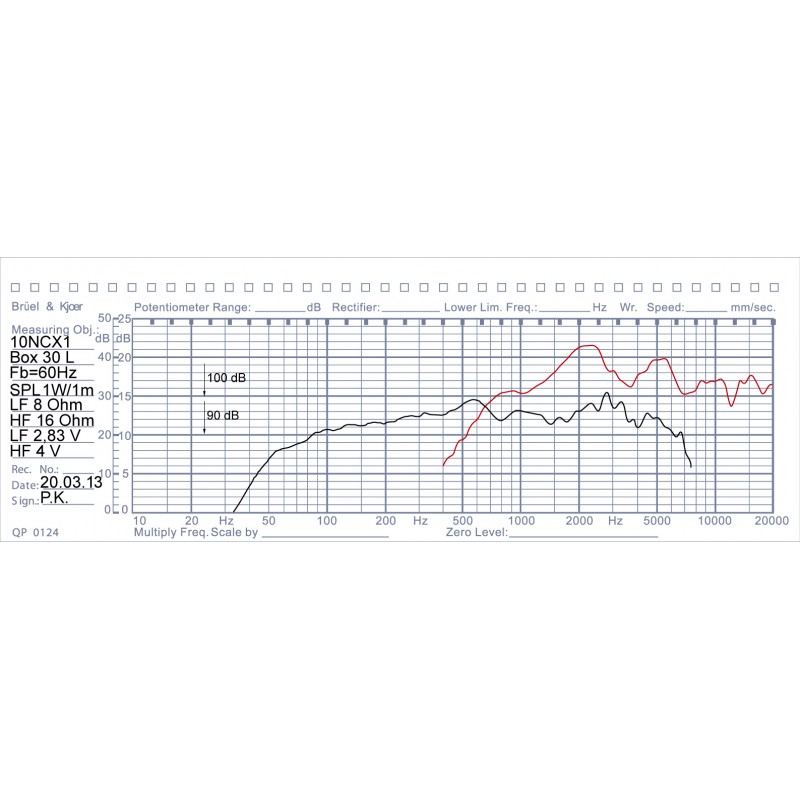

60 - 20000 Hz
80 deg



 96 dB
200 W
400 W
51 mm (2 in)
Copper
Kapton
14 mm
9 mm.
Paper
Die Cast Aluminium
Neodymium
0.90 T


12.37 Ohms
10.6 Ohms
106 dB
40 W
80 W
44 mm (1.75 in)
Aluminium
sandwich polyester
1.9 T


Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re

Effective Diagram Area (Sd)

Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

67.95 Hz
9.96
0.428
0.41
11.98 L
26.9 g
5.35 Ohms
317.3 cm2

± 4.75 mm

0.204 mm/N
11.98 T.m
0.836 mH

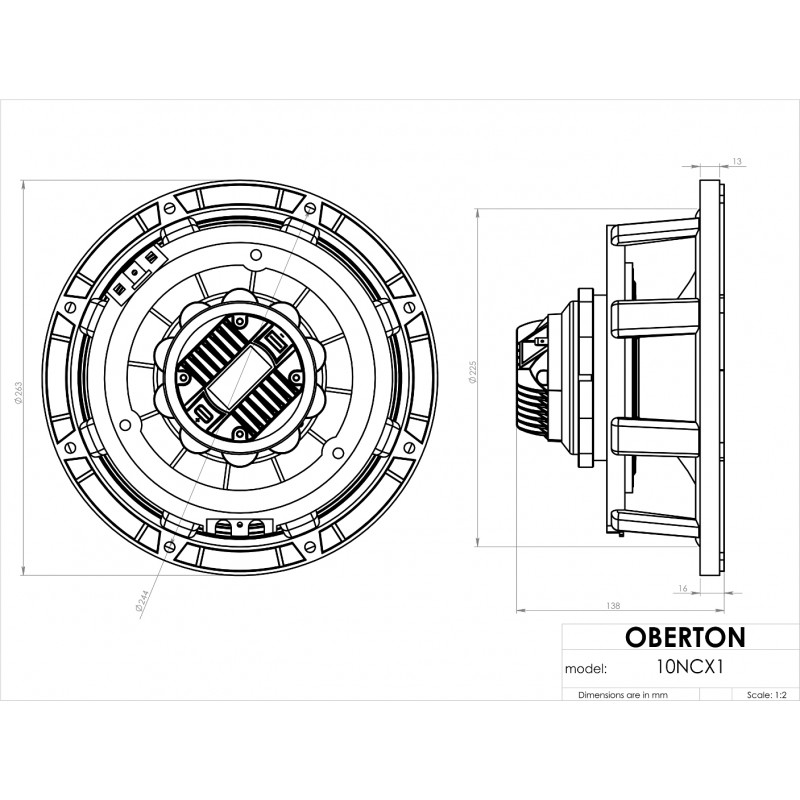

MOUNTING INFORMATION

Overall diameter
Depth
Baffle hole diameter
Bolt circle diameter
Number of mounting holes
Net weight

262 mm (10 in)
138 mm
228 mm
244 mm
8 with diam. 7 mm
2.7 kg



1.  AES standard. Power is calculated on rated minimum impedance. Measurement is in 30 L box enclosure tuned 60 Hz using a 50-1000 Hz band limited pink noise test signal applied continuously for 2 hours.
2.  Program power is defined as 3db greater than AES Power Capacity.
*  Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.
