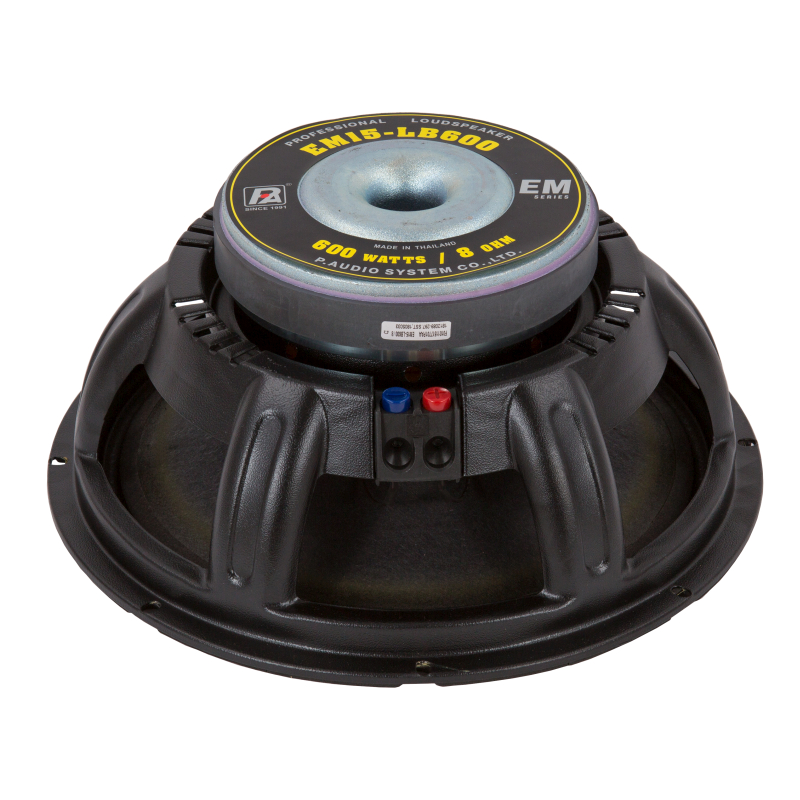

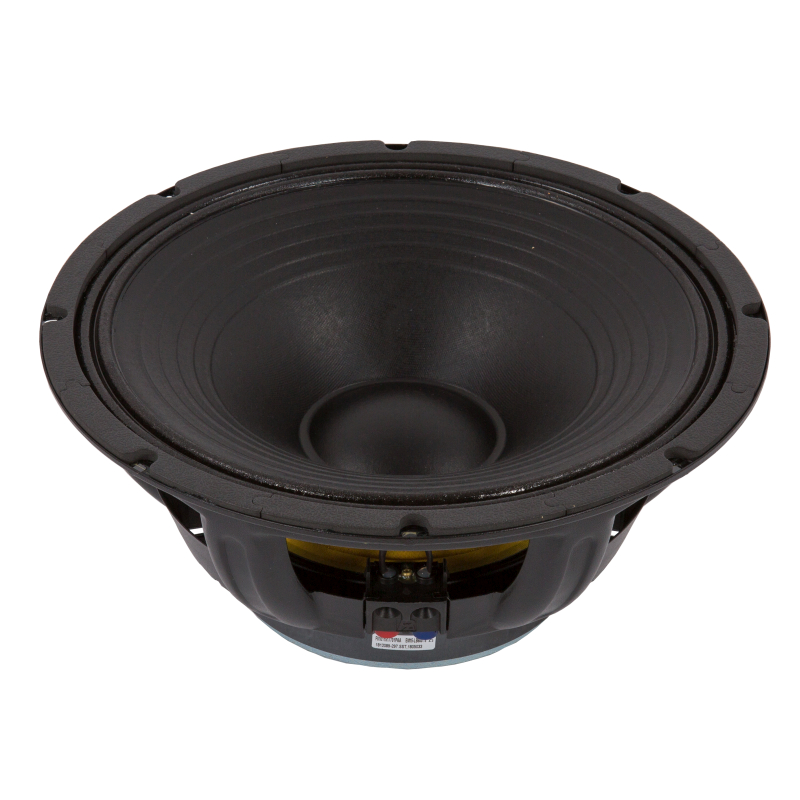

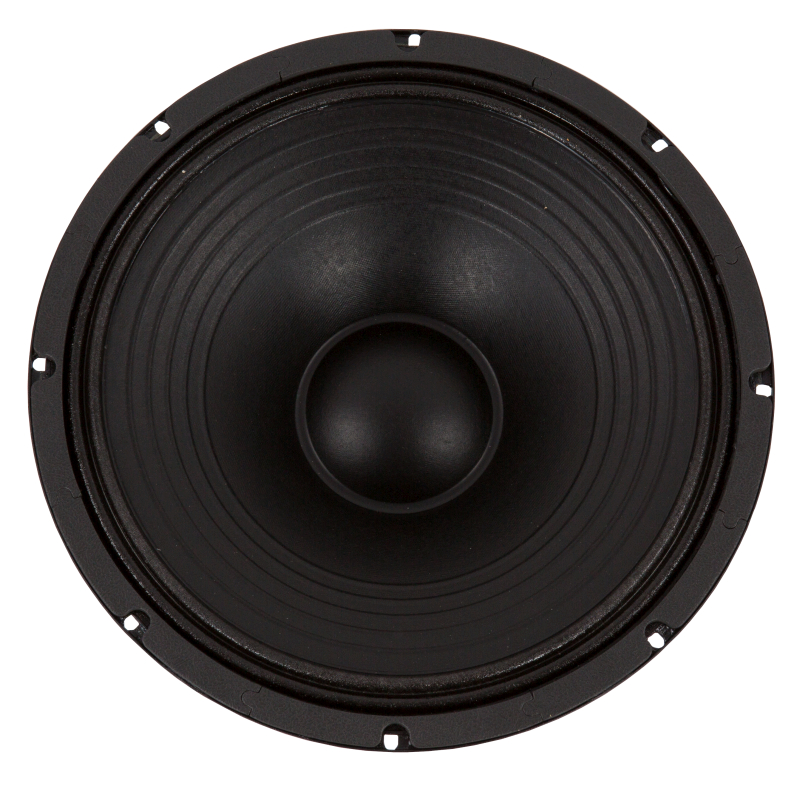

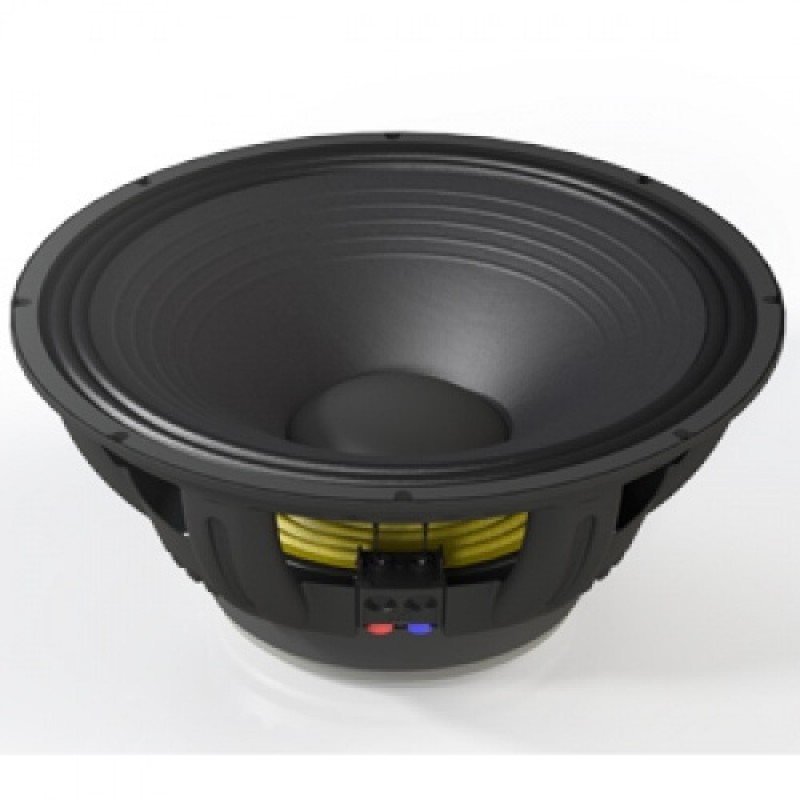

P-Audio EM15-LB600

General Specifications

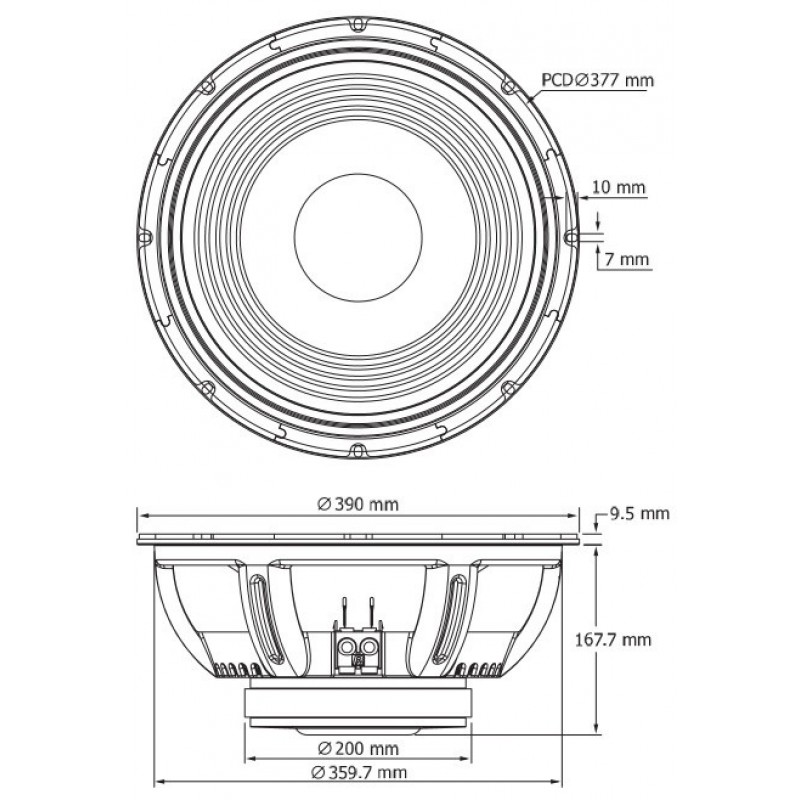

• Nominal diameter: 381 mm/15 in
• Power rating: 600 W(AES)
• Nominal impedance: 8 Ohms
• Sensitivity: 95 dB
• Frequency range: 40-2500 Hz
• Chassis type: Heavy Duty Stamped Steel
• Magnet type: Ferrite
• Magnet weight: 2.95 kg/103.9 oz
• Voice coil diameter: 88.9 mm/3.5 in
• Coil material: Copper Clad Aluminium
• Former material: Glass Fibre
• Cone material: Paper

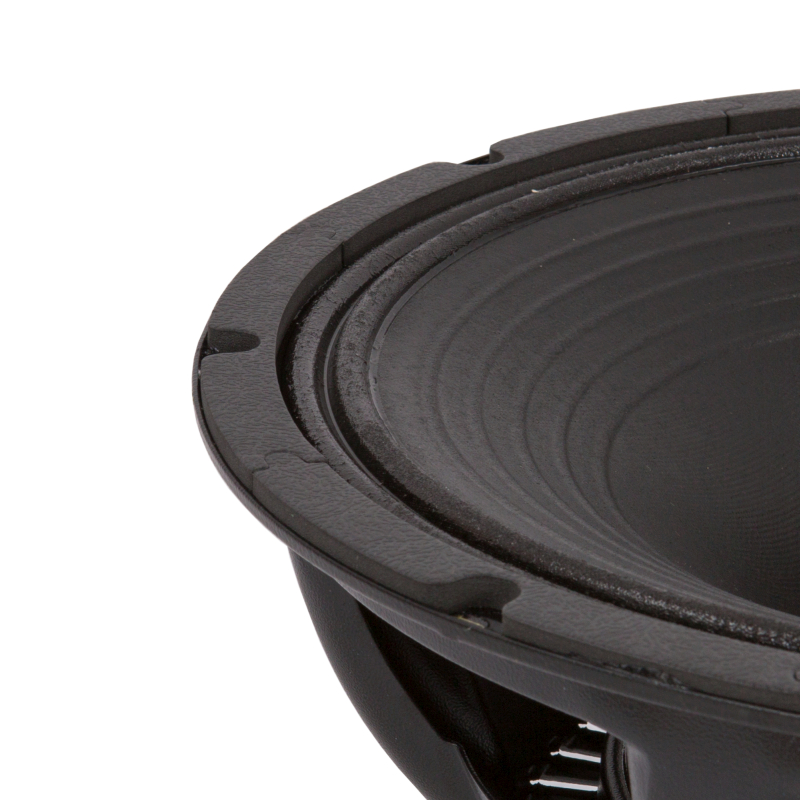

• Surround material: Cloth
• Suspension: Silicone Impregnated Spider
• X-max: 4 mm/0.16 in
• Gap depth: 10 mm/.039 in
• Voice coil winding width: 18 mm/0.71 in
• Net Weight: 9.6 kg/21.2 lb
• Packing Dimension WxDxH (mm)415mm x 415mm x 220mm
• Shipping Weight: 10.6 kg/23.4 lb

Small Signal Parameters

• Re: 5.5 Ohms
• Fs: 52 Hz
• Mms: 98.12 g/3.5 oz
• Mmd: 83.07 g/2.9 oz
• Qms: 8.05
• Qes: 0.56
• Qts: 0.52
• Vas: 102.37 lt/3.6 ft3
• SD: 881 cm2
• BI: 17.76 Tm
• Cms: 9.4e-05 m/N
• Rms: 4.04 Ns/m
• Le (at 1kHz): 0.60 mH
