Cere mai multe informatii despre Fane Sovereign PRO 12-500 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 950,00 Lei
Fără TVA: 798,32 Lei
4 bucati in stoc
Producător: Fane
Cod produs: 13084
-
+

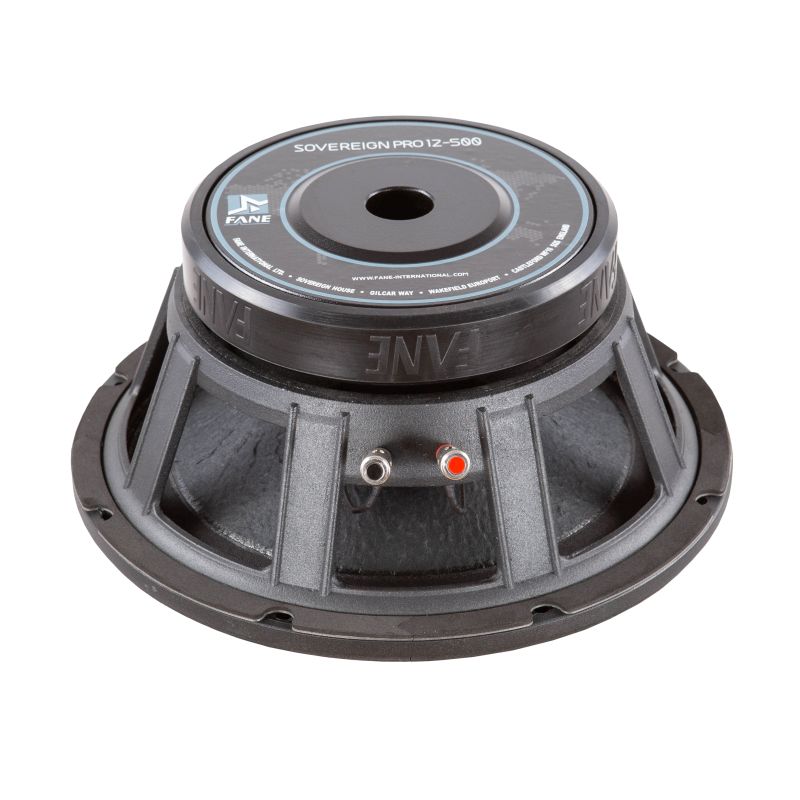

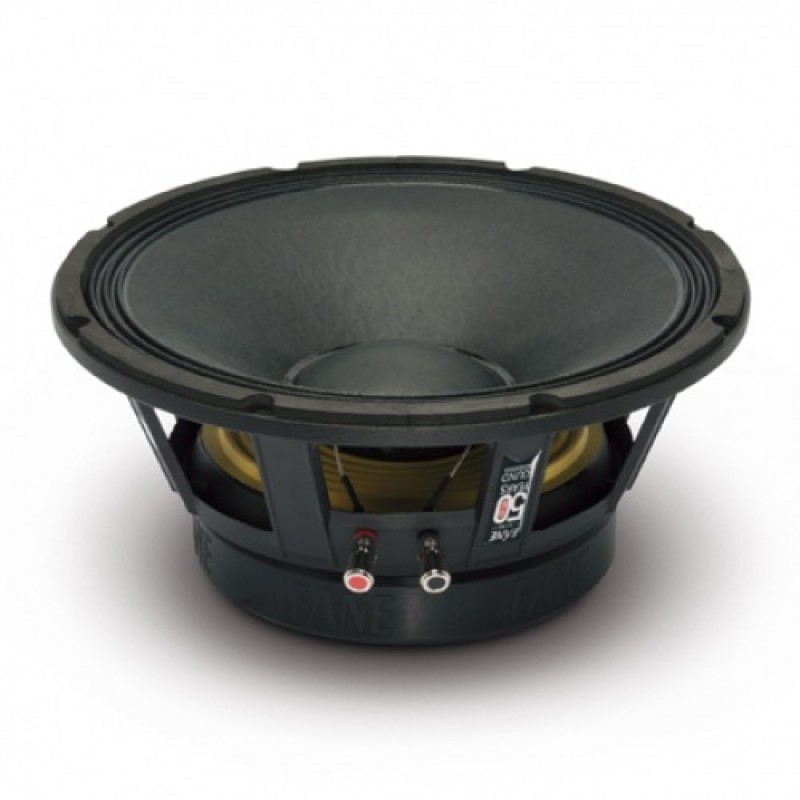

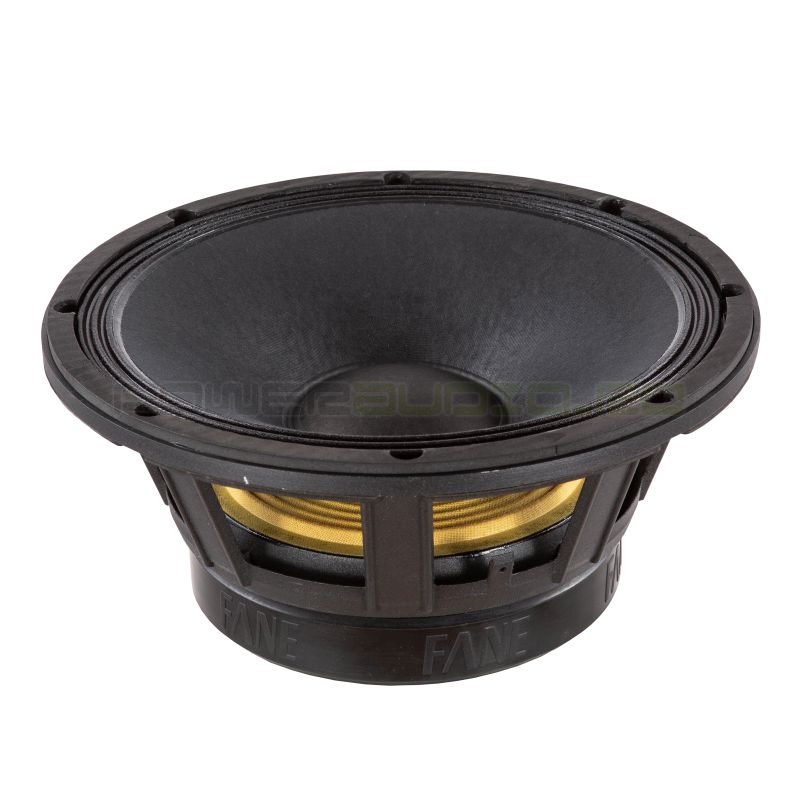

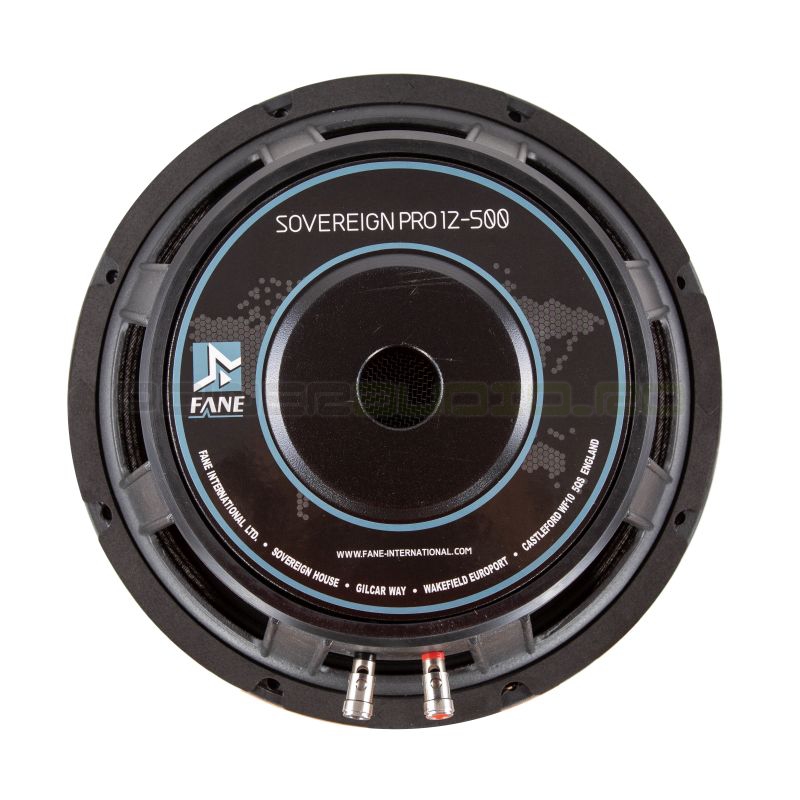

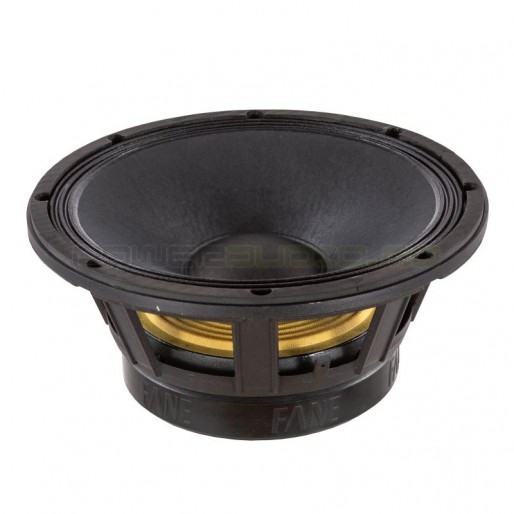

Fane Sovereign Pro 12-500 - 12" 500W 8 Ohm

The Sovereign Pro 12-500 is intended for use in two-way ported enclosures. The driver features a rugged die cast chassis combined with long throw motor system and high linearity suspension allowing solid bass reproduction at high power levels. The driver exhibits a smooth frequency response that delivers a balanced tonal characteristic when properly matched with the appropriate high-frequency device. The Sovereign Pro 12-500 is intended for use in ported enclosures with volumes of 35 to 75 Litres and features a 3 inch 'sandwich' inside and outside windings voice coil capable of delivering 500 watts power. The driver has an average sensitivity of 97.5 dB across its working band width.

  • 1000 W Program Power.
  • 97.5 dB Sensitivity (1W/1m).
  • Deep bass and well balanced tonal character with extended frequency output.
  • High linearity suspension and long-throw motor system.
  • UK manufactured cone with optimised pulp offering increased strength, durability and performance.
  • 3-inch Inside/ outside windings CCAW voice coil.

Mounting / Shipping Information:

  • Overall Diameter 314 mm
  • Baffle Hole (Front Mount) 287 mm
  • Flange Height 10 mm
  • Mounting Hole Diameter and Quantity 8 x 7mm dia
  • Mounting Hole P.C.D. 294 mm PCD
  • Overall Height 145 mm
  • Nett Weight 7.5 kg
  • Shipping Weight 8kg
  • Packing Carton Dimensions 165 x 330 x 330 mm


Electro Acoustic Specifications:

  • Nominal Chassis Diameter 12"
  • Impedance 8 Ohms
  • Continuous Power 500W
  • Program Power 1000W
  • Peak Power 6dB Crest Factor 2000 w
  • Frequency Range -3dB 40 Hz - 3.5 KHz
  • Sensitivity 1w - 1m 97.5 dB
  • Magnetic Gap Depth 10 mm
  • Voice Coil Diameter 76.2 mm
  • Flux Density (Tesla) 1.1
  • Coil Winding Length 20 mm


Thiele Small Parameters:

  • FS Hz 46 Hz
  • RE Ohms 5.4 Ohms
  • Qms 6.19
  • Qes 0.42
  • Qts 0.39
  • Vas Ltr 107
  • Vd Litres 0.237
  • CMS (mm/N) 0.233
  • BL T/m 13.81
  • Mms (grms) 50.98
  • Xmax mm 4.8
  • Sd cm2 569.8
  • Efficiency % 2.4


Materials Of Construction:


  • Former Material Glass Fibre
  • Voice Coil Aluminium
  • Magnet Material Ferrite
  • Chassis Die-cast Aluminium
  • Cone Paper
  • Surround / Edge Termination Polyvinyl Damped Fabric
  • Dust Dome Paper
  • Connectors Push-button Spring Terminals
  • Polarity Positive Voltage at Red Terminal Causes Forward Motion of Cone

Descarca fisa tehnica click to download pdf
