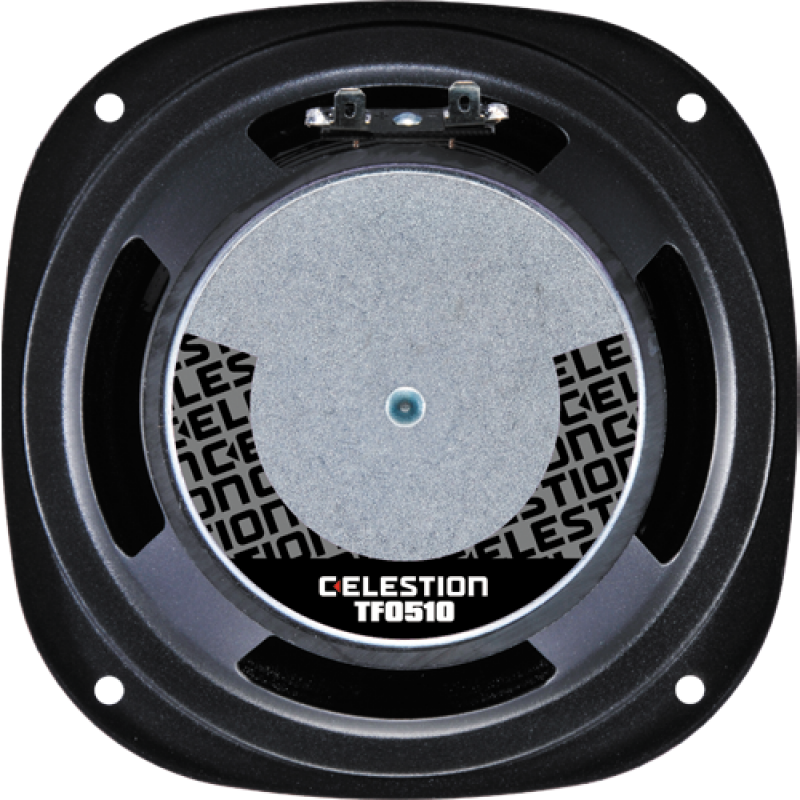

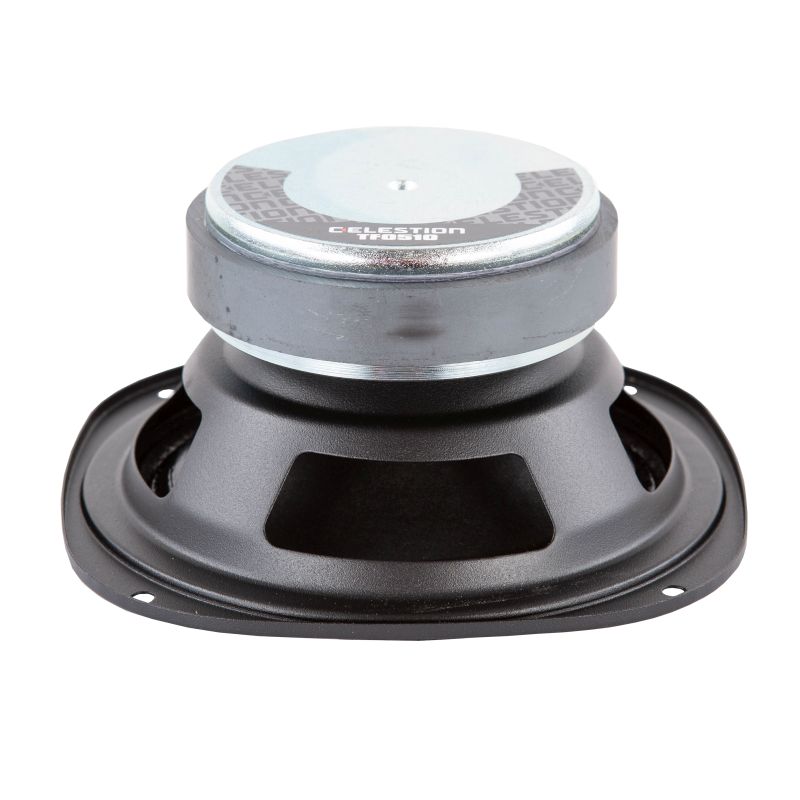

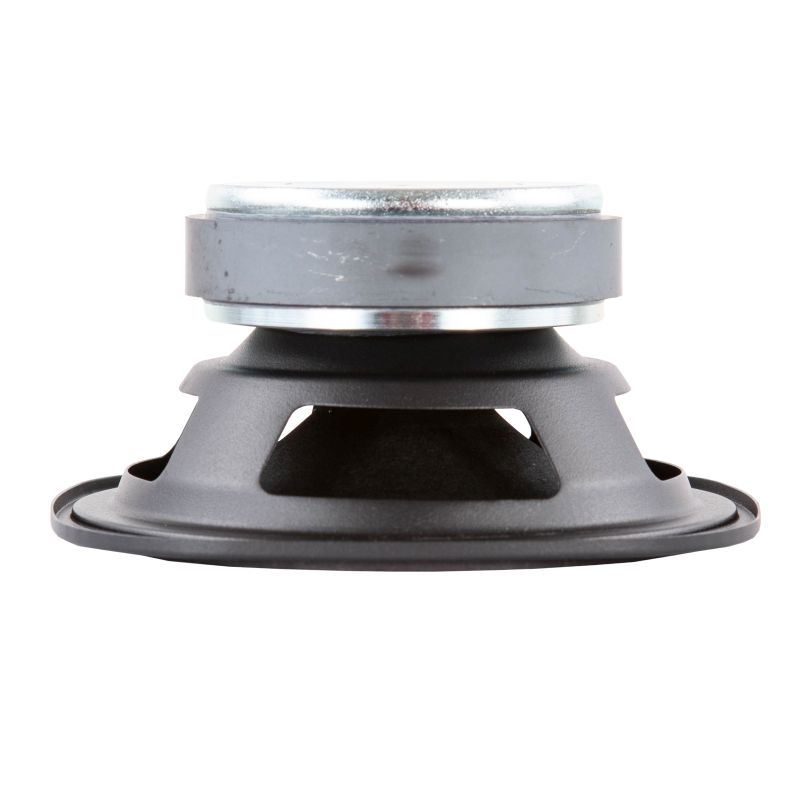

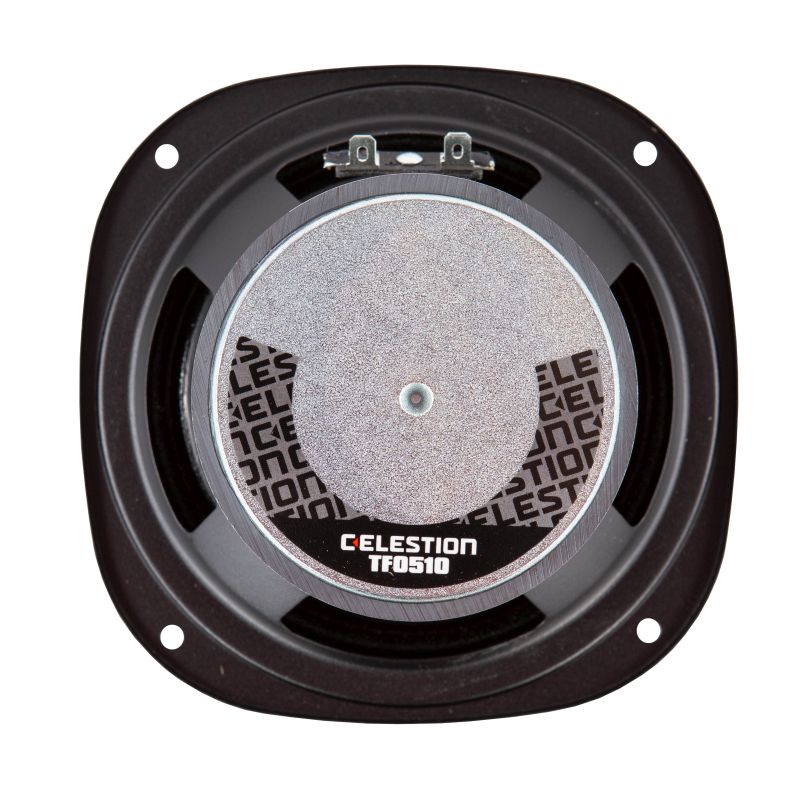

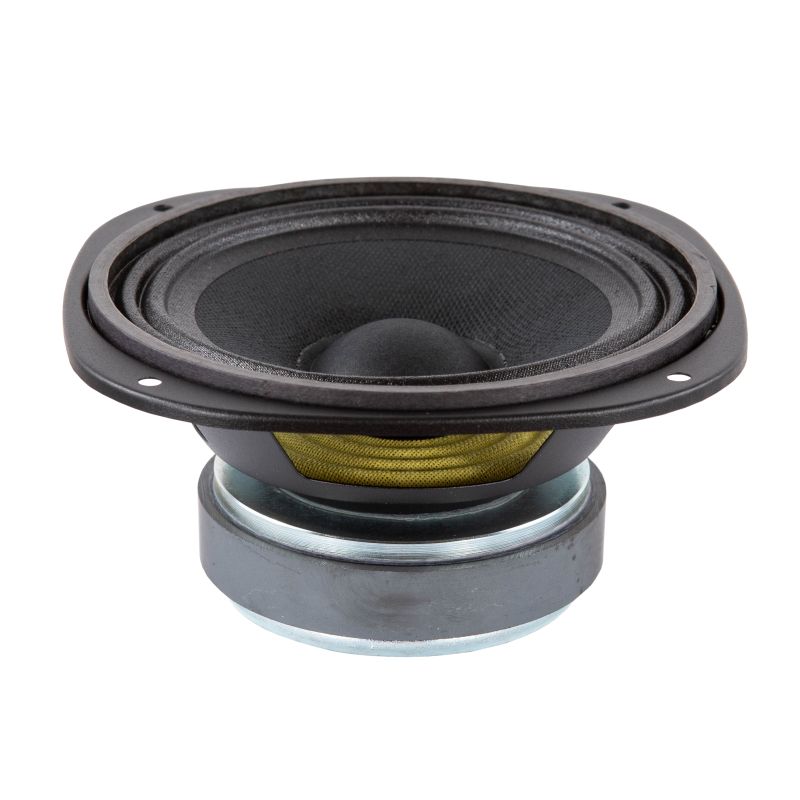

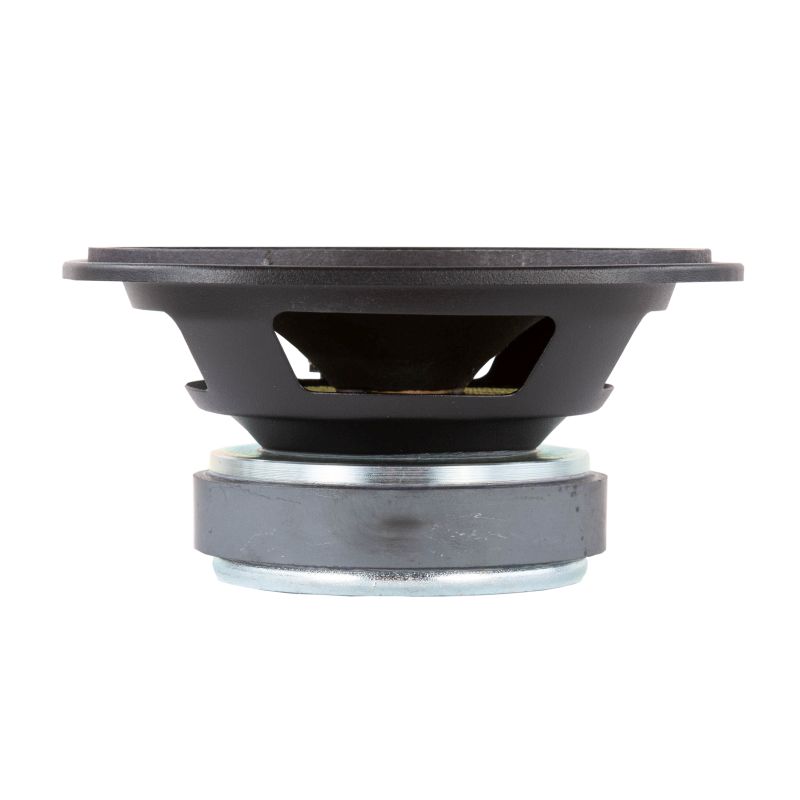

Sale Celestion TF0510
  • Celestion TF0510
  • Celestion TF0510
  • Celestion TF0510

Cere mai multe informatii despre Celestion TF0510 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 157,50 Lei 124,95 Lei
Fără TVA: 105,00 Lei
În Stoc
Producător: Celestion
Cod produs: Celestion TF0510
-
+
  • Multi-purpose 5" drive unit delivering clear bass and mid frequencies
  • Provides 91dB sensitivity and 30Wrms (AES standard) power handling
  • 1" high temperature copper voice coil wound on polyimide former for increased reliability
  • Impressive extended frequency range
  • Ideal for use in multiple speaker systems: as LF driver in 2-way systems, as MF driver in 3-way systems



General Specifications

Nominal diameter
127mm/5in
Power rating1
30Wrms
Continuous power rating2
60W
EIA power rating3
50W
Nominal impedance
Sensitivity4
91dB
Frequency range
130-8000Hz
Voice coil diameter
25mm/1in
Chassis type
Pressed steel
Magnet type
Ferrite
Magnet weight
0.37kg/13oz
Coil material
Round copper
Former material
Polyimide
Cone material
Kevlar loaded paper
Surround material
Cloth-sealed
Suspension
Single
Xmax5
1.1mm/0.04in
Gap depth
5mm/0.20in
Voice coil winding width
7.3mm/0.29in

Small Signal Parameters

D
0.10m/3.94in
Fs
106Hz
Mms
5.7g/0.201oz
Qms
2.40
Qes
0.58
Mmd
5.3g/0.187oz
Qts
0.46
Re
6.43Ω
Vas
4.2lt/0.15ft3
BI
6.5Tm
Cms
0.40mm/N
Rms
1.60kg/s
Le (at 1kHz)
0.38mH

Mounting Information

Overall diameter
136 x 151mm/5.35 x 5.94in
Overall depth
68mm/2.68in
Cut-out diameter
117mm/4.61in
Mounting slot dimensions
Ø 4.5mm/0.18in
Number of mounting slots
4
Mounting PCD range
140mm/5.51in
Unit weight
1.0kg/2.2lb

Packed Dimensions & Weight

Single pack size W x D x H
170mm x 180mm x 70mm
/6.7in x 7.1in x 2.8in
Single pack weight
1.5kg

Descarca fisa tehnica click to download pdf
