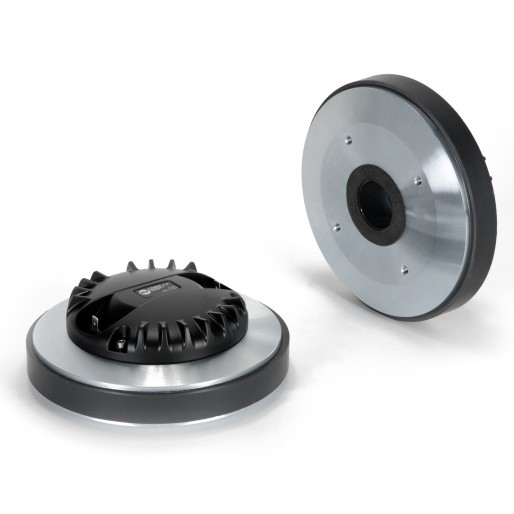

RCF CD850 1,4

Cere mai multe informatii despre RCF CD850 1,4 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.055,00 Lei
Fără TVA: 886,55 Lei
Scos din productie
Producător: RCF
Cod produs: RCF CD850 1,4
Puncte de recompensă: 21
CD850 1.4
1.4", bobină 3", 110W RMS, 220W program
3-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
220W continuous program power handling
Frequency range: 500Hz - 20kHz
3-slot optimized geometry phase plug
Ceramic Magnet Assembly
Copper inductance ring for extended response
Vented, damped, low distortion suspension system
• High power professional applicationms
• 2 way and multiple way systems
• Long throw and large format line arrays
• Very good linearity in combination with RCF H6040 horn
• 15129045
Exit Throat Diameter: 35.5 / 1.4 mm/inch
Rated Impedance: 8 Ω
Power handling capacity continuous program: 220 W AES
Power handling capacity AES: 110 W AES
Sensitivity: 109 dB
Frequency Range: 500 Hz ÷ 20000 Hz
Diaphragm Material: Pure titanium
Suspension Material: Polymide
Suspension Design: Flat
Minimum Impedance: (at 3.5kHz) 8.5 Ω
Voice Coil Diameter: 74.4 / 3.0 mm/inch
Voice Coil Material: Edgewound aluminium
Voice Coil Former Design: Straight kapton
Number of layers: 1 - outside
BL Factor: 12.3 T · m
Flux Density: 1.9 T
Phase Plug Design: 3 slots
Phase Plug Material: Composite
Magnetics: Ceramic
Voice Coil Demodulation: Copper ring
Overall diameter: 180 mm
Overall height: 62 mm
Mounting 4 × 5 mm holes at 90°: 101.6 mm
Net weight: 5.0 kg
Shipping weight: 5.5 kg

Descarca fisa tehnica click to download pdf
