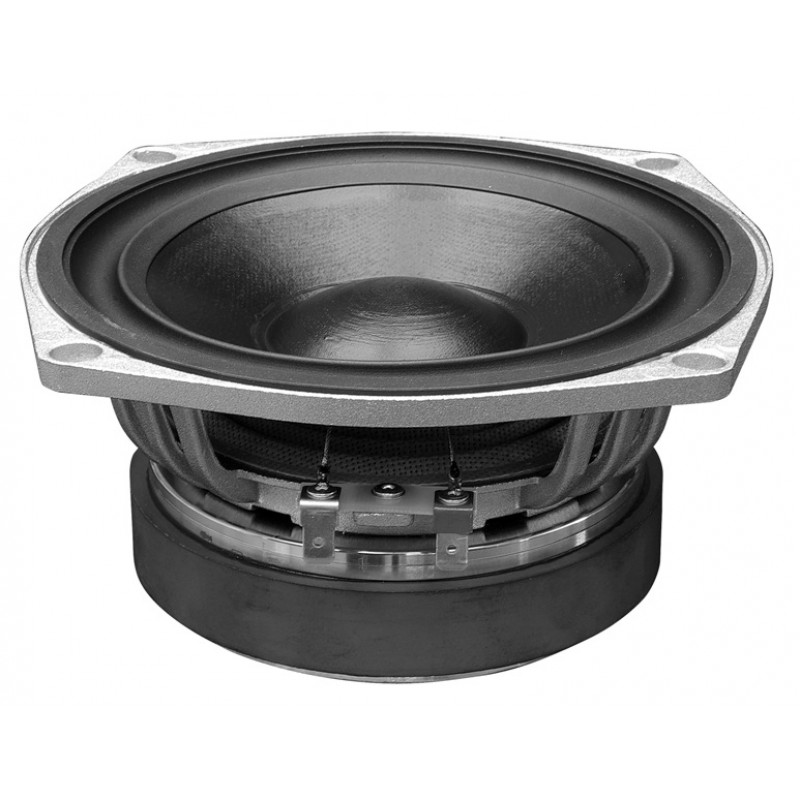

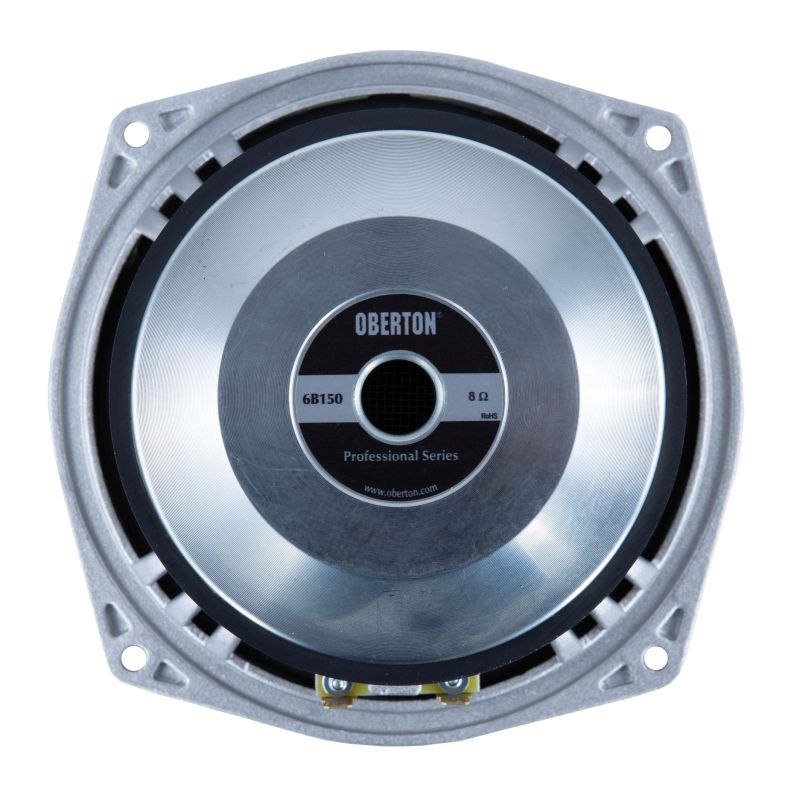

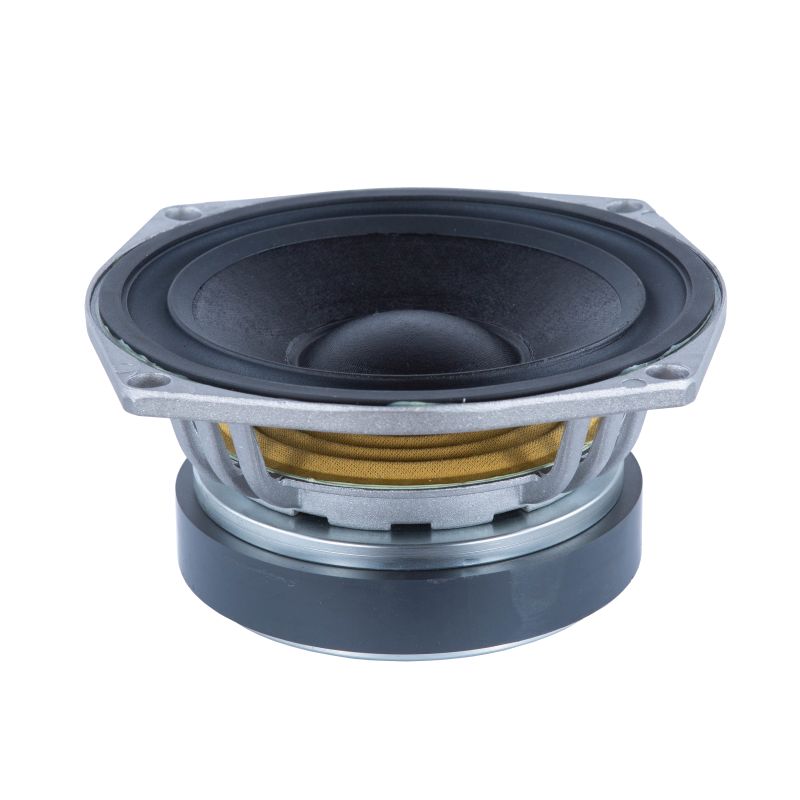

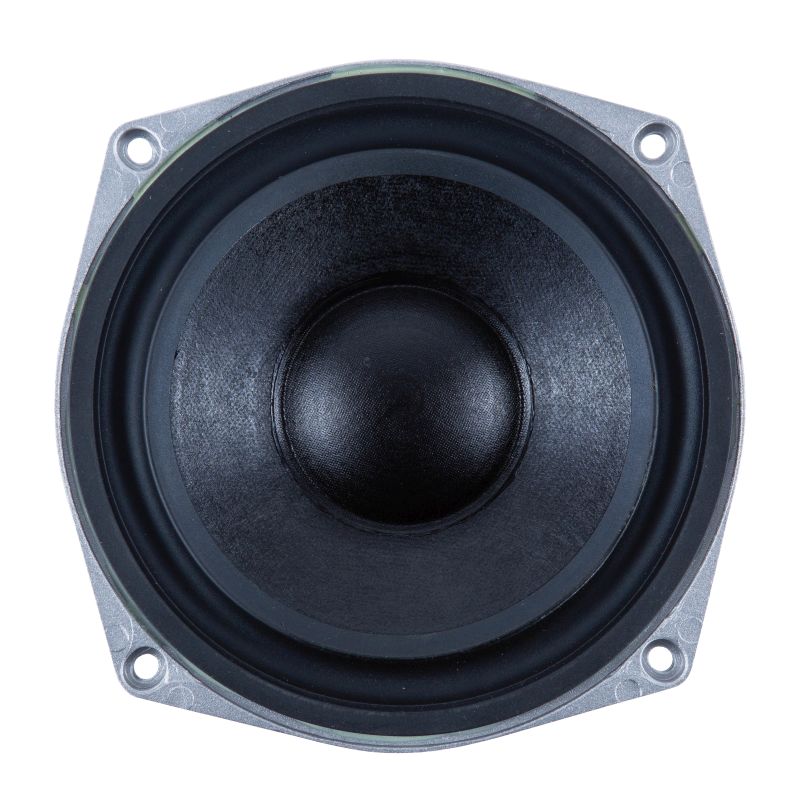

Oberton 6B150

SPECIFICATIONS

THIELE-SMALL PARAMETERS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

6.5"/170 mm
8 Ohm
6.4 Ohm
150 W
300 W
(200-2000 Hz) 92 dB/W/m
60 - 3000 Hz
38 mm
Cooper
Kapton™
14 mm
6 mm
Paper with glassfiber
Die cast aluminium
Ferrite
1.2 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

55.04 Hz
4.72
0.311
0.292
14.61 Litres
16.38 grams
5.60 Ohms
127 cm2
± 5.5 mm
0.51 mm/N
10.11 T.m
0.79 mH

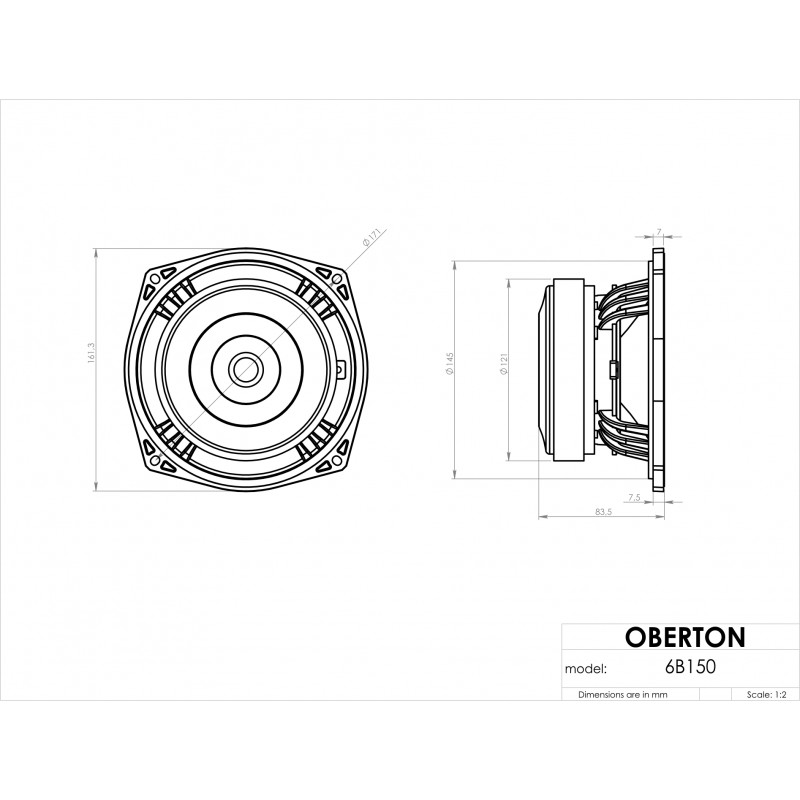

MOUNTING INFORMATION

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 9 L box enclosure tuned 70 Hz using a 100 - 2000 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

185 mm
145 mm
4 eliptic 5.5/6.5 mm
170/172 mm
86 mm
2.4 kg
