Cere mai multe informatii despre Oberton 12B450 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 650,00 Lei
Fără TVA: 546,22 Lei
3 bucati in stoc
Producător: Oberton
Cod produs: 12929

Application :  Woofer

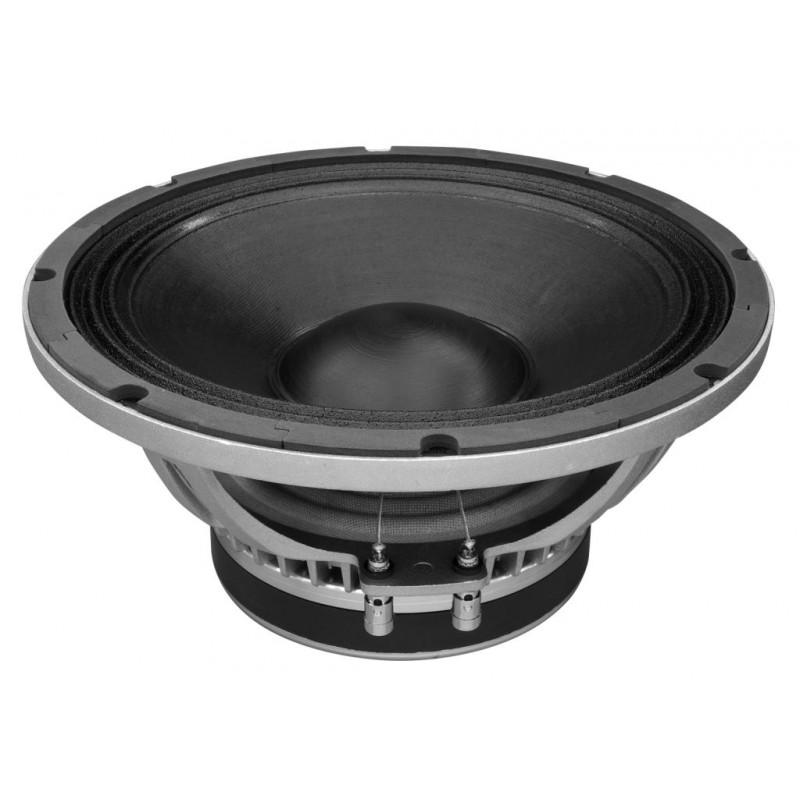

The 12B450 loudspeaker is combining very good linearity and efficiency with high power handling capabilities, with use of 77 mm aluminium voice coil. It features vented aluminium die cast frame, 180 mm magnet structure and curvilinear paper cone. 12B450 is suitable for application as LF driver in small stage monitors and 2- way PA boxes with 1`` HF driver.





Nominal Diameter
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Flux Density

12"/315 inch/mm
8 Ohm
6.22 Ohm
450 W
900 W
(200-2000 Hz) 99dB/W/m
50 - 3000 Hz
77 mm
21 mm
11 mm
Die cast aluminium
1.20 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

46.29 Hz
71.75 Litres
60.97 grams
5.07 Ohms
514.7 cm2
± 7.75 mm
0.194 mm/N
19.31 T.m
1.10 mH

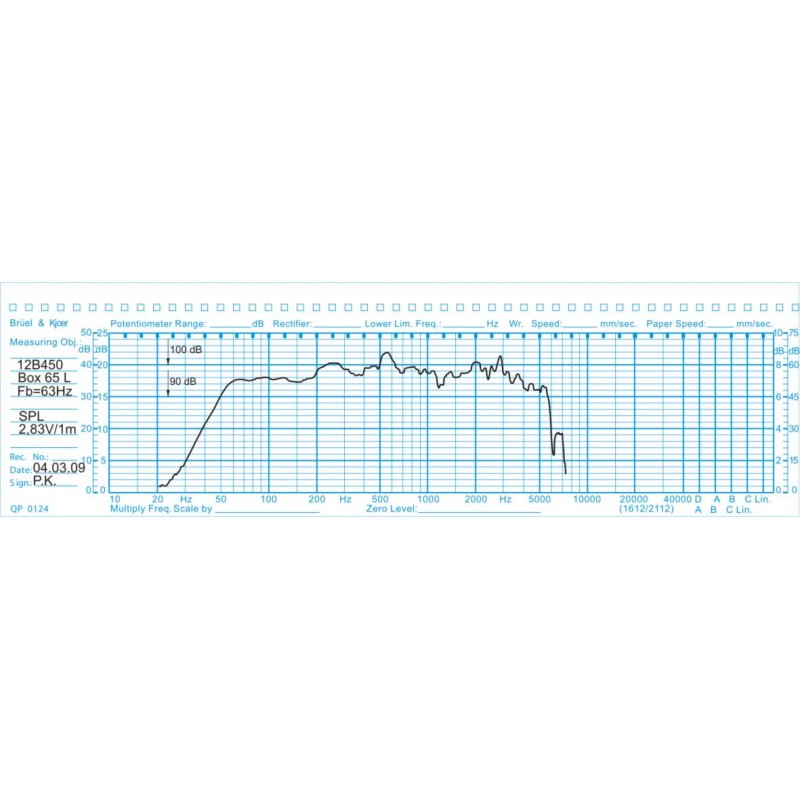

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 65 L box enclosure tuned 63 Hz using a 40-400 Hz band limited pink noise test signal applied continuously for 2 hours.

2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

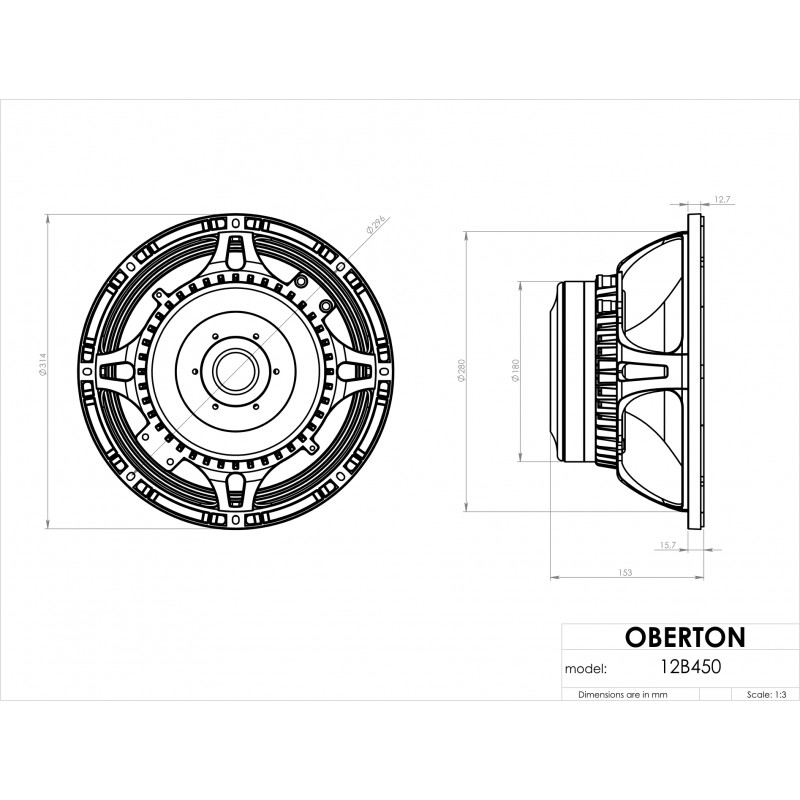

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

315 mm
280 mm
8 eliptic 7x8 mm
296 / 298 mm
153 mm
7.5 kg

Descarca fisa tehnica click to download pdf
