Oberton 8M250
  • Oberton 8M250
  • Oberton 8M250
  • Oberton 8M250
  • Oberton 8M250
  • Oberton 8M250
  • Oberton 8M250
  • Oberton 8M250
  • Oberton 8M250

Cere mai multe informatii despre Oberton 8M250 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 410,00 Lei
Fără TVA: 344,54 Lei
5 bucati in stoc
Producător: Oberton
Cod produs: 13350

Application : Midrange speaker

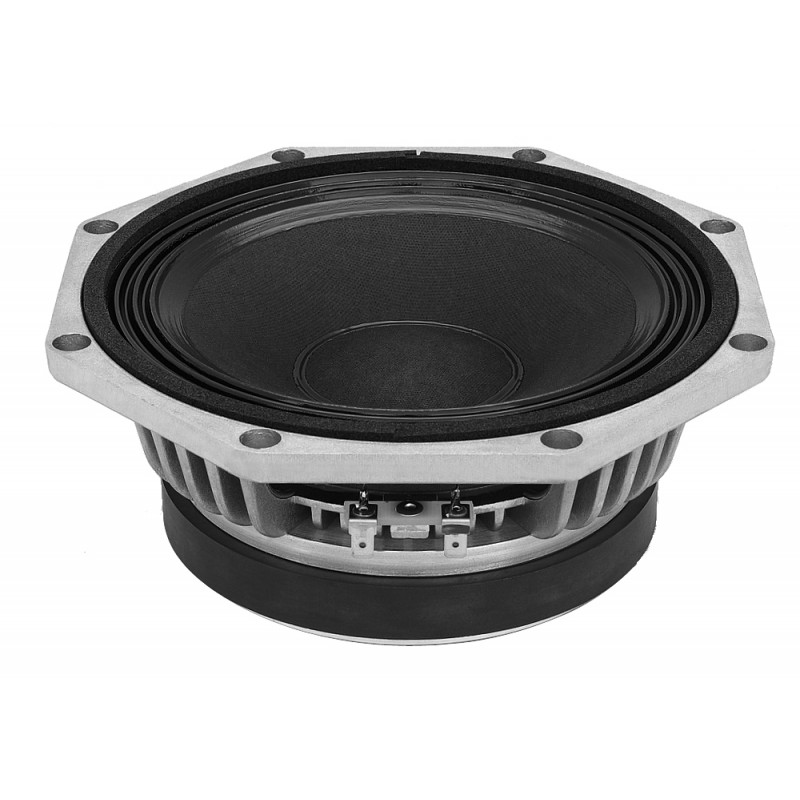

The 8M250 loudspeaker is combining high efficiency and 250W power capacity with use of 51 mm aluminium voice coil. It features aluminium die cast frame, 156 mm magnet structure and curvilinear paper cone. 8M250 is intended for use as a direct radiating or horn loaded midrange speaker.





Nominal Diameter
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Flux Density

8 Ohm
6.20 Ohm
250 W
500 W
(500-5000 Hz) 99.5 dB/W/m
90 - 5000 Hz
51 mm
10 mm
9 mm
Paper with glassfiber
Die cast aluminium
Strontium ferrite
1.43 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

74.37 Hz
15.63 Liters
16.38 Grams
5.00 Ohms
202 cm²
+/- 2.75 mm
13.70 T.m
0.42 mH



1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 18 L box enclosure tuned 82 Hz using a 60 - 2000 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.



Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

225 mm
187 mm
8 with dia. 6.5 mm
210 mm
90 mm
4.3 kg

Descarca fisa tehnica click to download pdf
