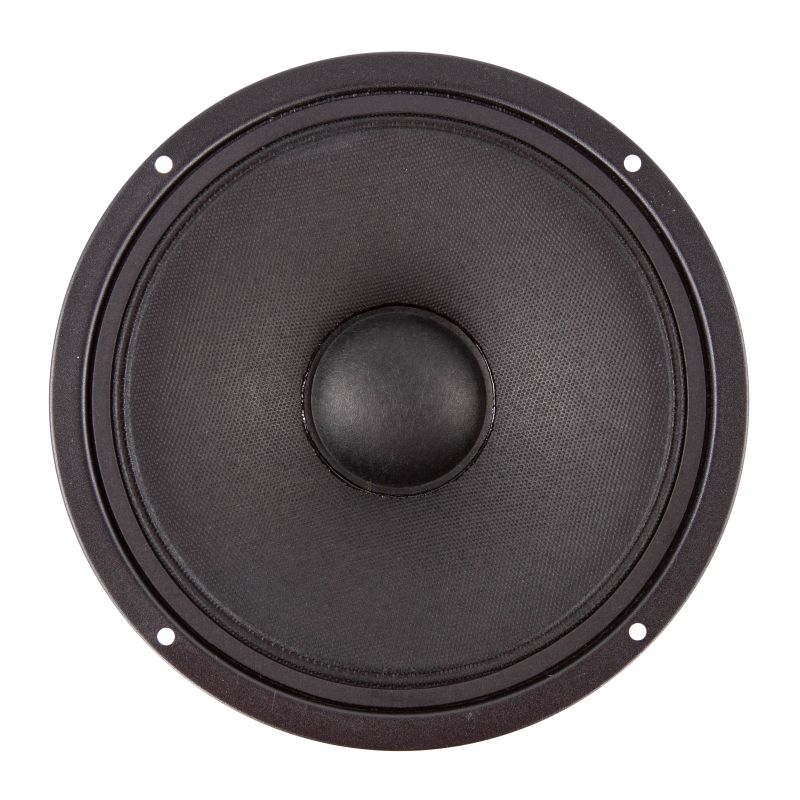

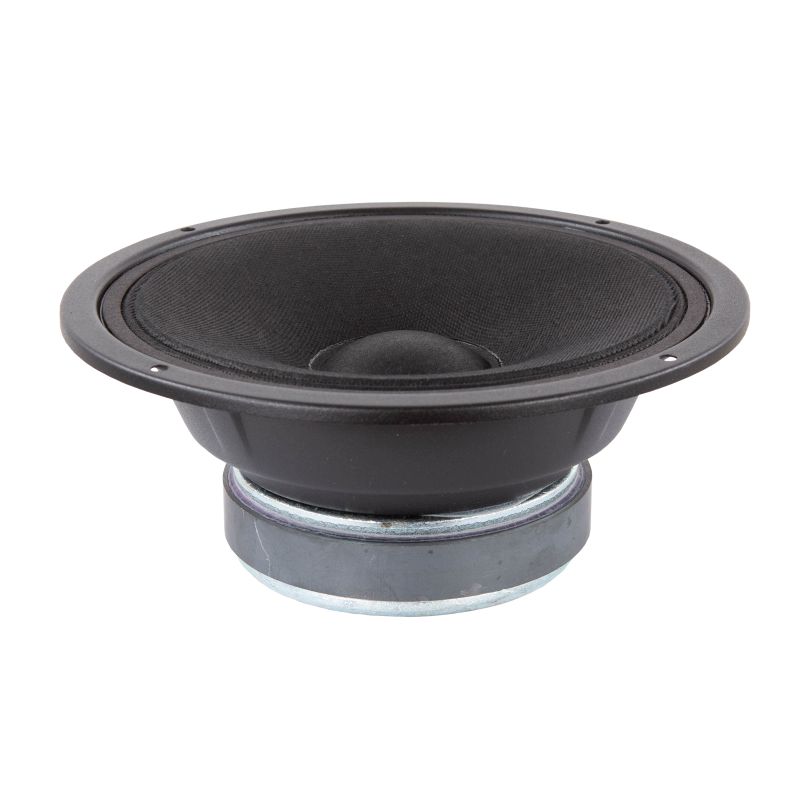

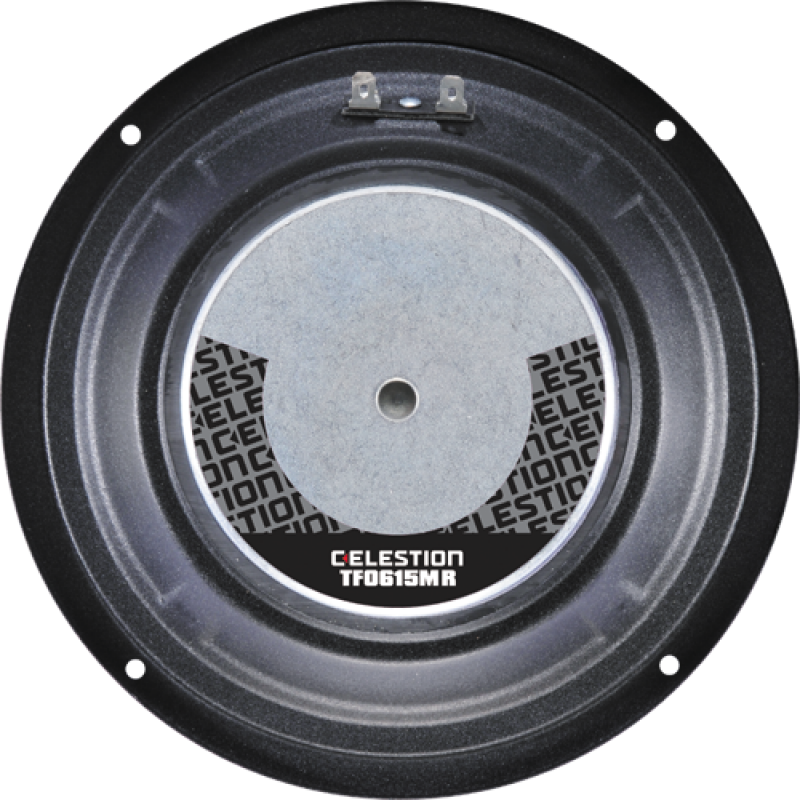

Celestion TF0615MR
  • Celestion TF0615MR
  • Celestion TF0615MR
  • Celestion TF0615MR
  • Celestion TF0615MR
  • Celestion TF0615MR
  • Celestion TF0615MR

Cere mai multe informatii despre Celestion TF0615MR la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 156,00 Lei
Fără TVA: 131,09 Lei
1 bucati in stoc
Producător: Celestion
Cod produs: 11969
-
+

General Specifications

Nominal diameter: 152mm/6in
Power rating: 50Wrms
Nominal impedance:8Ω
Sensitivity2 : 97dB
Frequency range: 500-5000Hz
Voice coil diameter: 38mm/1.5in
Chassis type: Pressed stell
Magnet type: Ferrite
Coil material:Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Treated paper
Suspension: Single

Small Signal Parameters

Fs: 553Hz
Re: 5.53Ω
Le (at 1kHz): 0.29mH

Mounting Information

Overall diameter: 178mm/7.01in
Overall depth: 74mm/2.91in
Cut-out diameter: 147mm/5.79in
Mounting slot dimensions: 4.3mm/0.17in
Number of mounting slots: 4
Mounting PCD range: 168.5mm/6.63n
Unit weight: 1.4 kg

Descarca fisa tehnica click to download pdf
