Cere mai multe informatii despre Oberton 6M150 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 338,00 Lei
Fără TVA: 284,03 Lei
8 bucati in stoc
Producător: Oberton
Cod produs: 12231

Application : Power midrange speaker

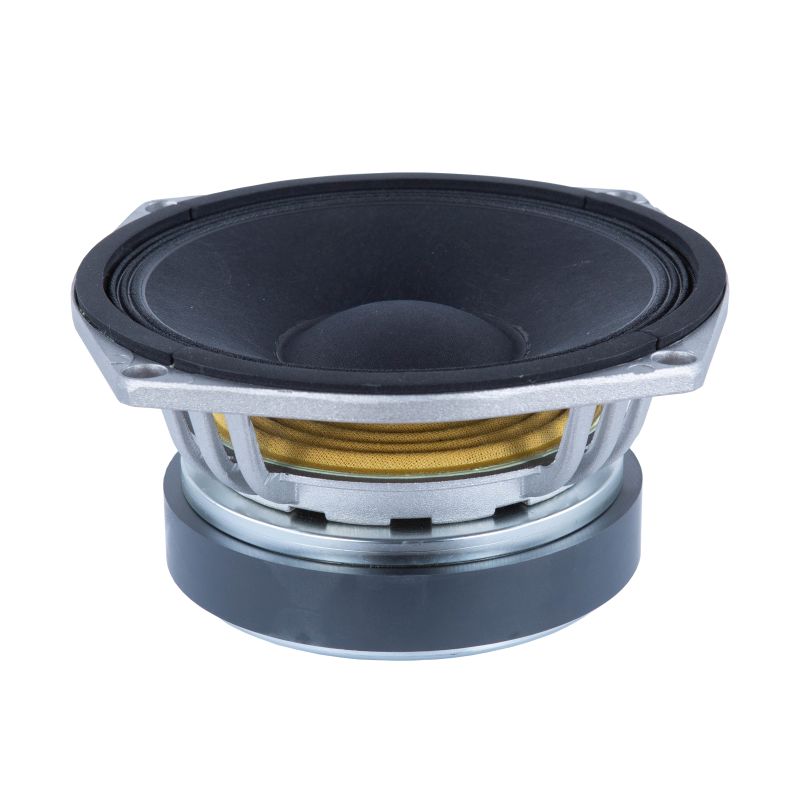

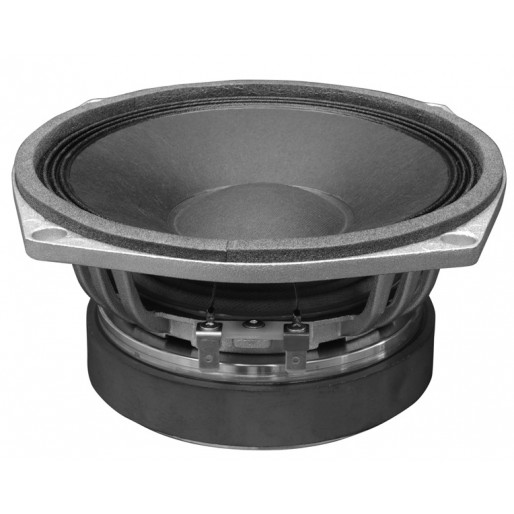

The 6M150 is high efficiency, high power midrange loudspeaker , specially designed to use in 3 way boxes and line array systems. It features 44 mm aluminium voice coil, vented aluminium die cast frame with powerful 121 mm ferrite magnet structure, which achieved compact size of the speaker.





Nominal Diameter
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Flux Density

6.5"/170 mm
8 Ohm
7 Ohm
150 W
300 W
(500-5000 Hz) 96 dB/W/m
200 - 5000 Hz
44 mm
8 mm
7 mm
Die cast aluminium
1.2 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

115.1 Hz
5.35 Litres
10.22 grams
6.21 Ohms
139 cm2
± 2.25 mm
0.187 mm/N
10.02 T.m
0.438 mH



1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 9 L box enclosure tuned 70 Hz using a 100 - 2000 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

185 mm
145 mm
4 eliptic 5.5/6.5 mm
170/172 mm
90 mm
2.5 kg

Descarca fisa tehnica click to download pdf
