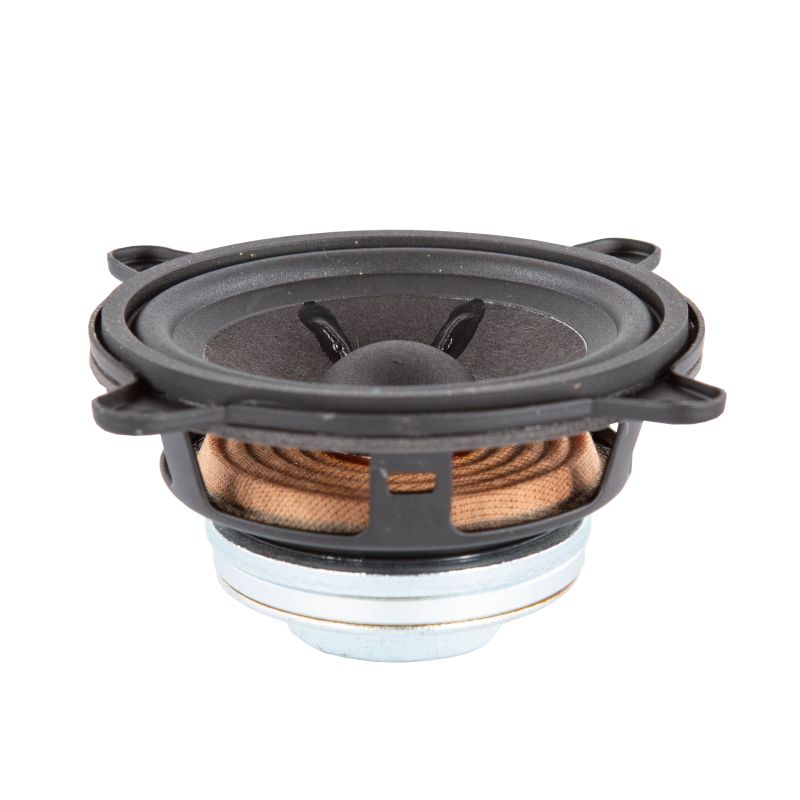

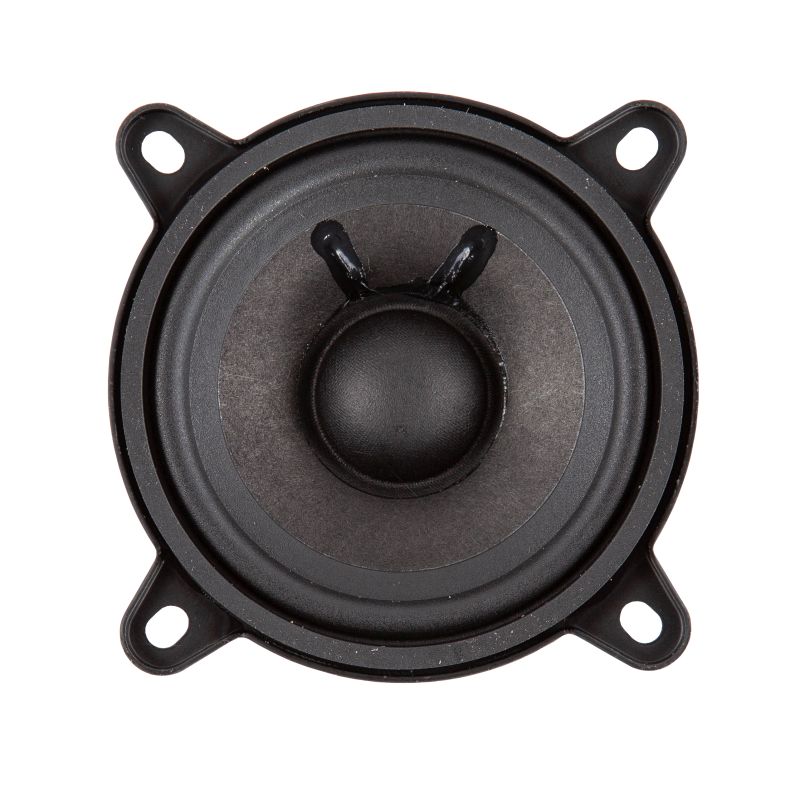

Faital Pro 3FE22 - 3" 20W 4 Ohm Loudspeaker
Nominal Specifications
- Nominal Diameter - 80 mm (3 in)
- Overall Diameter - 105.6/81 mm (4.16/3.19 in)
- Bolt Circle Diameter - 92 mm (3.62 in)
- Baffle Cutout Diameter - 73.6 mm (2.90 in)
- Depth - 46 mm (1.81 in)
- Flange and Gasket Thickness - 6.5 mm (0.26 in)
- Net Weight - 240 g (0.5 lb)
Technical Parameters
- Nominal Impedance - 4 Ohm
- Minimum Impedance - 3.7 Ohm
- AES Power Handling (1) - 20 W
- Maximum Power Handling (2) - 40 W
- Sensitivity (1W/1m) - 91 dB
- Frequency Range - 100-20000 Hz
- Voice Coil Diameter - 19 mm (0.75 in)
- Winding Material - Al
- Former Material - Kapton
- Winding Depth - 4.8 mm (0.19 in)
- Magnetic Gap Depth - 4 mm (0.16 in)
- Flux Density - 1.4 T
- Magnet - Neodymium Ring
- Basket Material - Steel
- Demodulation - No
- Cone Surround (3) - Half Roll
- NET Air Volume filled by Loudspeaker - 0.060 l (0.002 ft^3)
- Spider Profile - 1x constant height waves
Thiele and small parameters
- Fs - 110 Hz
- Re - 3.3 Ohm
- Qes - 0.42
- Qms - 3.6
- Qts - 0.36
- Vas - 1.13 l (0.04 ft^3)
- Sd - 30.2 cm^2 (4.68 in^2)
- Xmax (4) - 1.73 mm
- Xdamage (5) - 7.3 mm
- Mms - 2.4 g
- Bl - 3.7 N/A
- Le - 0.1 mH
- Mmd - 2.3 g
- Cms - 0.88 mm/N
- Rms - 0.46 Kg/s
- Eta Zero - 0.37 %
- EBP - 262 Hz
