Cere mai multe informatii despre Faital Pro 18HP1010 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.350,00 Lei
Fără TVA: 1.134,45 Lei
2 bucati in stoc
Producător: Faital PRO
Cod produs: 13842
-
+

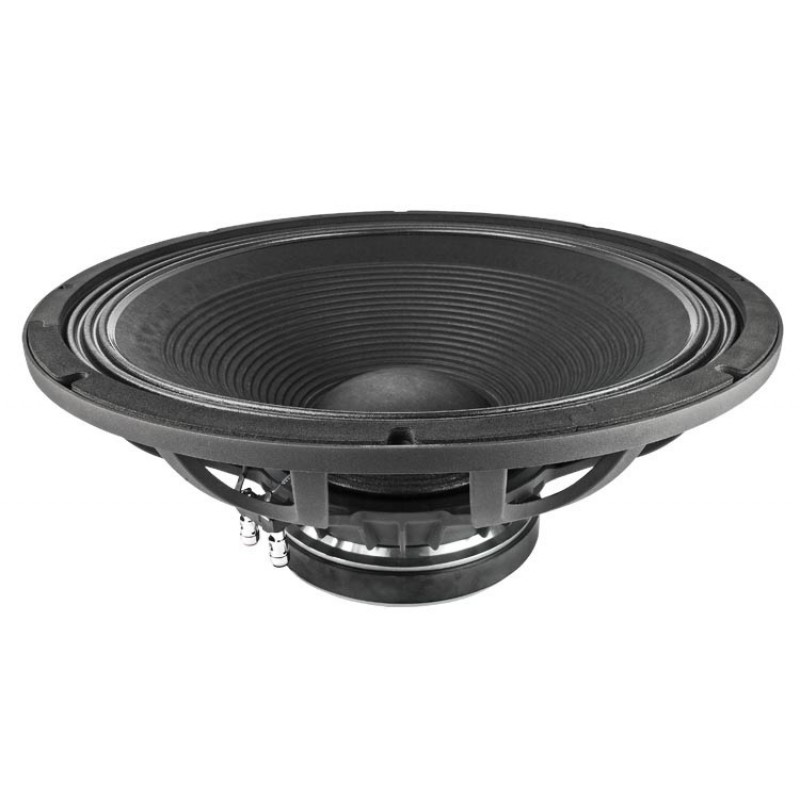

Faital Pro 18HP1010 18" Loudspeaker Driver 1000W 8 Ohm



Nominal Specifications


  • Nominal Diameter - 460 mm (18 in)
  • Overall Diameter - 460 mm (18.11 in)
  • Bolt Circle Diameter - 440 mm (17.32 in)
  • Baffle Cutout Diameter - 421 mm (16.57 in)
  • Depth - 203.5 mm (8.01 in)
  • Flange and Gasket Thickness - 13.7 mm (0.54 in)
  • Net Weight - 10.1 Kg (22.3 lb)
  • Shipping Box(Single Carton Box) - 503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in)
  • Shipping Weight - 11.5 Kg (25.4 lb)

Technical Parameters



  • Nominal Impedance - 8 Ohm
  • Minimum Impedance - 6.9 Ohm
  • AES Power Handling (1) - 1000 W
  • Maximum Power Handling (2) - 2000 W
  • Sensitivity (1W/1m) - 98 dB
  • Frequency Range - 35-2000 Hz
  • Voice Coil Diameter - 100 mm (4 in)
  • Winding Material - Cu
  • Former Material - Glass Fiber
  • Winding Depth - 23 mm (0.91 in)
  • Magnetic Gap Depth - 10.5 mm (0.41 in)
  • Flux Density - 1.05 T
  • Magnet - Ferrite Ring
  • Basket Material - Aluminum
  • Demodulation - No
  • Cone Surround (3) - Triple Roll
  • NET Air Volume filled by Loudspeaker - 7.1 l (0.251 ft^3)
  • Spider Profile - 2x non-adjacent symmetrical constant height waves



Thiele and small parameters



  • Fs - 35 Hz
  • Re - 5.3 Ohm
  • Qes - 0.42
  • Qms - 7.8
  • Qts - 0.40
  • Vas - 215.3 l (7.60 ft^3)
  • Sd - 1134 cm^2 (175.77 in^2)
  • Xmax - 9.75 mm
  • Xdamage (5) - 21.9 mm
  • Mms - 175.2 g
  • Bl - 22 N/A
  • Le - 1.8 mH
  • Mmd - 152.7 g
  • Cms - 0.12 mm/N
  • Rms - 4.94 Kg/s
  • Eta Zero - 2.13 %
  • EBP - 83 Hz

Descarca fisa tehnica click to download pdf
