Cere mai multe informatii despre Oberton 10B200 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 485,00 Lei
Fără TVA: 407,56 Lei
8 bucati in stoc
Producător: Oberton
Cod produs: 13565
-
+

Application: woofer

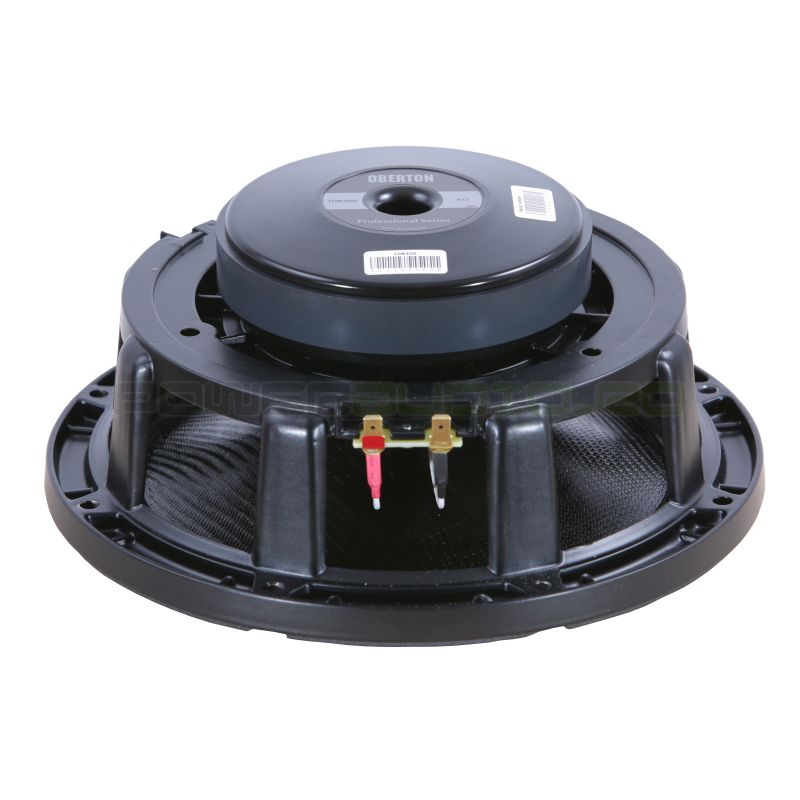

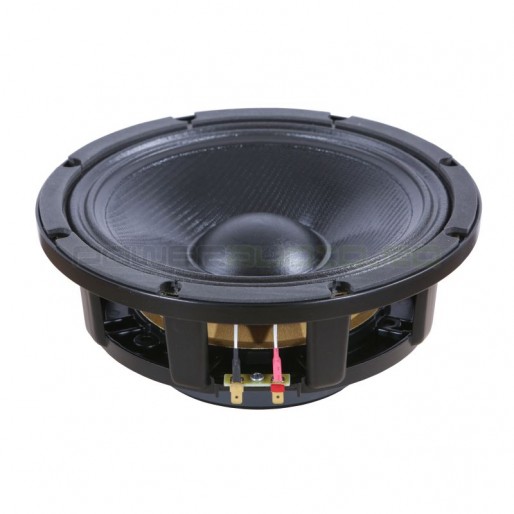

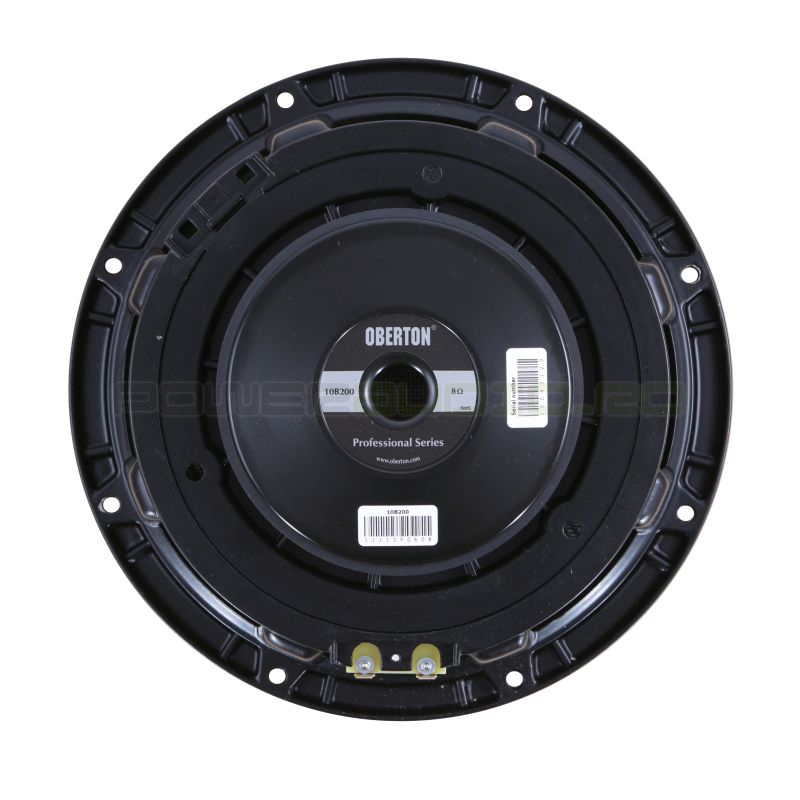

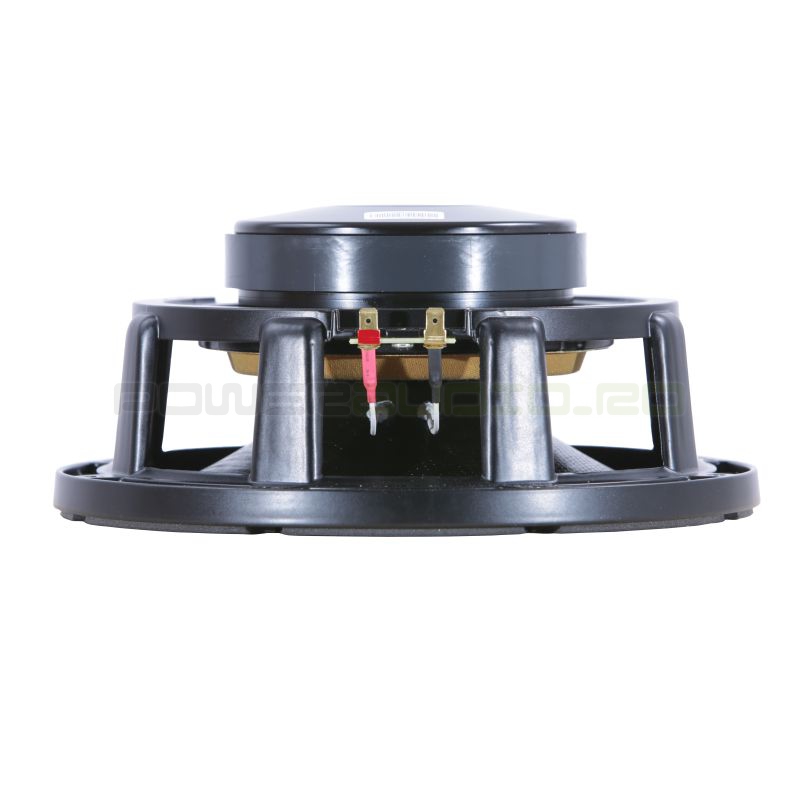

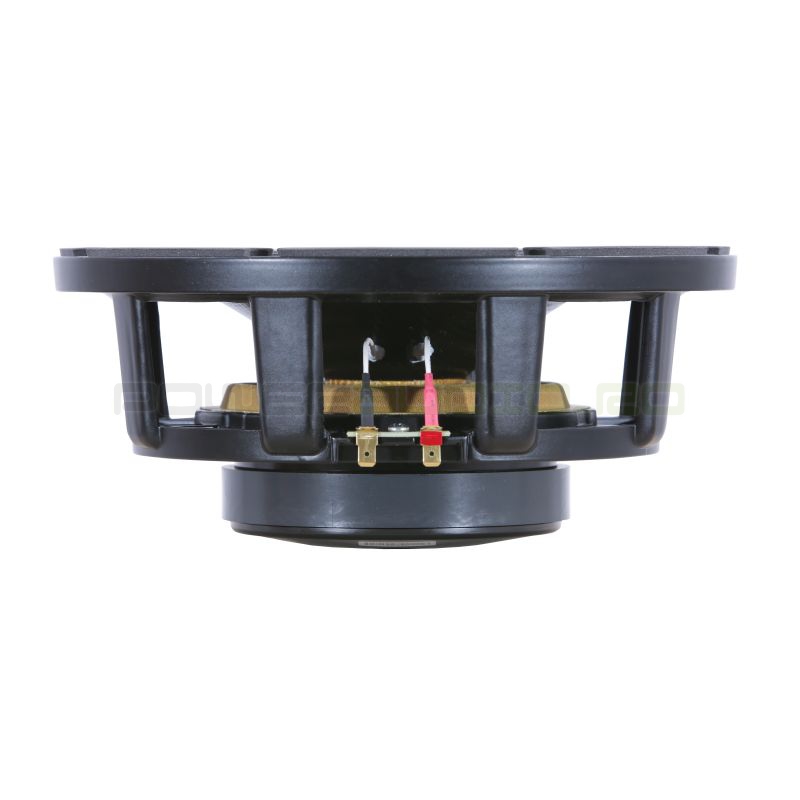

The 10B200 loudspeaker is designed special for use in high quality compact 2-way boxes for indoor and outdoor application. It features 51 mm voice coil, 134 mm magnet structure, die cast aluminium frame and glass fiber cone.



SPECIFICATIONS



THIELE-SMALL PARAMETERS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

10"/262 inch/mm
8 Ohm
5.25 Ohm
200 W
400 W
(200-2000 Hz) 93 dB/W/m
45 - 3000 Hz
51 mm
Copper
Kapton™
17 mm
7 mm
Glass Fiber
Die cast aluminium
Ferrite
1.35 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

47.88 Hz
9.27
0.341
0.329
36.21 Litres
43.75 grams
5.10 Ohms
317.3 cm2
± 5.75 mm
0.252 mm/N
14.02 T.m
0.84 mH

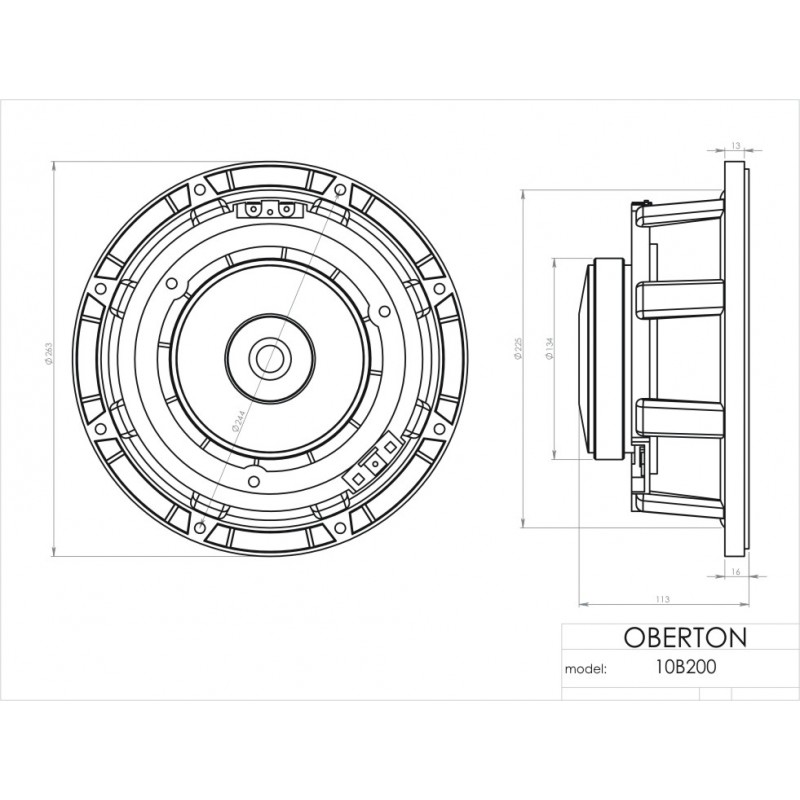

MOUNTING INFORMATION

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 30 L box enclosure tuned 60 Hz using a 50-1000 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.







Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

262 mm
228 mm
8 with dia. 7 mm
244 mm
113 mm
3.6 kg


Descarca fisa tehnica click to download pdf
