Oberton ND72CT
  • Oberton ND72CT
  • Oberton ND72CT

Cere mai multe informatii despre Oberton ND72CT la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.480,00 Lei
Fără TVA: 1.243,70 Lei
la comanda - 6 Saptamani
Producător: Oberton
Cod produs: Oberton ND72CT
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: oberton oberton nd72ct driver neodimium driver 1.5

The ND72CT is powerful 1.4” neodymium high frequency compression driver which features a cotton composite dome with high damped vented suspension, providing high output with very low distortion and very good response from 500 to 18000 Hz. This new dome material provides excellent vocal reproduction with very warm and clean sounding. The voice coil assembly is easily fielded replaceable without soldering. It is designed for a wide variety of applications in high quality, high power professional reinforcement systems and stage monitors.



SPECIFICATIONS

Throat diameter
Nominal impedance
Minimum impedance
D.C. resistance
Power capacity (1-20 kHz)
Program Power Capacity (1-20 kHz)
Sensitivity (1 - 10 kHz)
Frequency range
Recommended crossover
Voice coil diameter
Flux density

36 mm (1.4 in.)
16 Ohms
11.7 Ohms
10 Ohms
100 W
200 W
109 dB
0,5 - 18 kHz
1 kHz or higher 12 dB/oct.min
72 mm (2,85 in.)
2,1 T

THIELE-SMALL PARAMETERS

Diaphragm
Voice coil material
Voice coil former

Cotton Composite
CCAW
Kapton™




Positive voltage on red terminal moves diaphragm toward the phasing plug

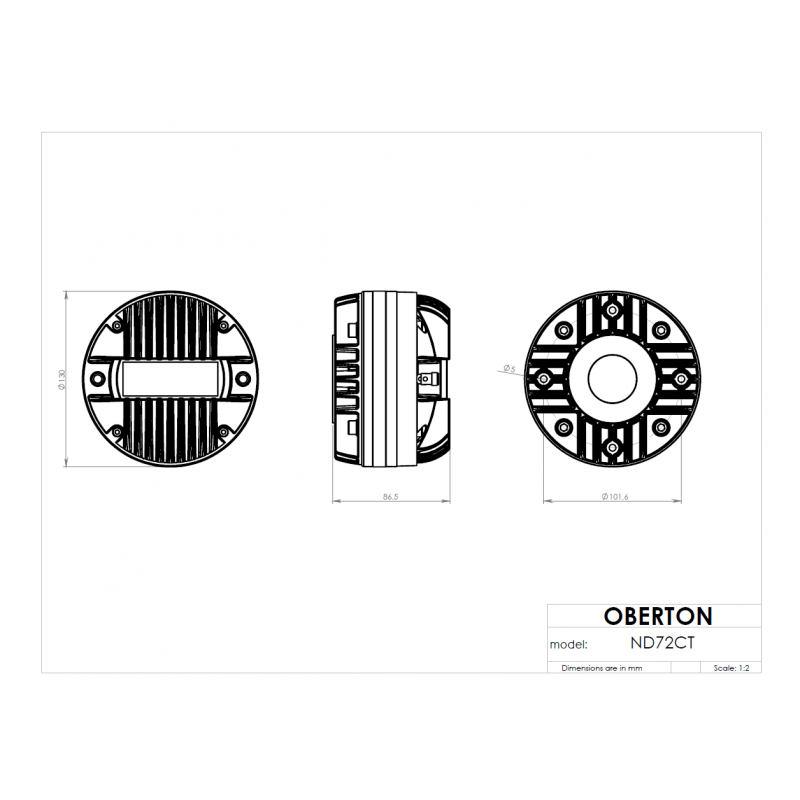

MOUNTING INFORMATION

Overall diameter
Depth
Mounting
Net weight

130 mm
89 mm
4 x M6 on 101,6 mm (4 in.) diameter
2,95 kg
