Application: Stage monitors and compact bass reflex boxes.

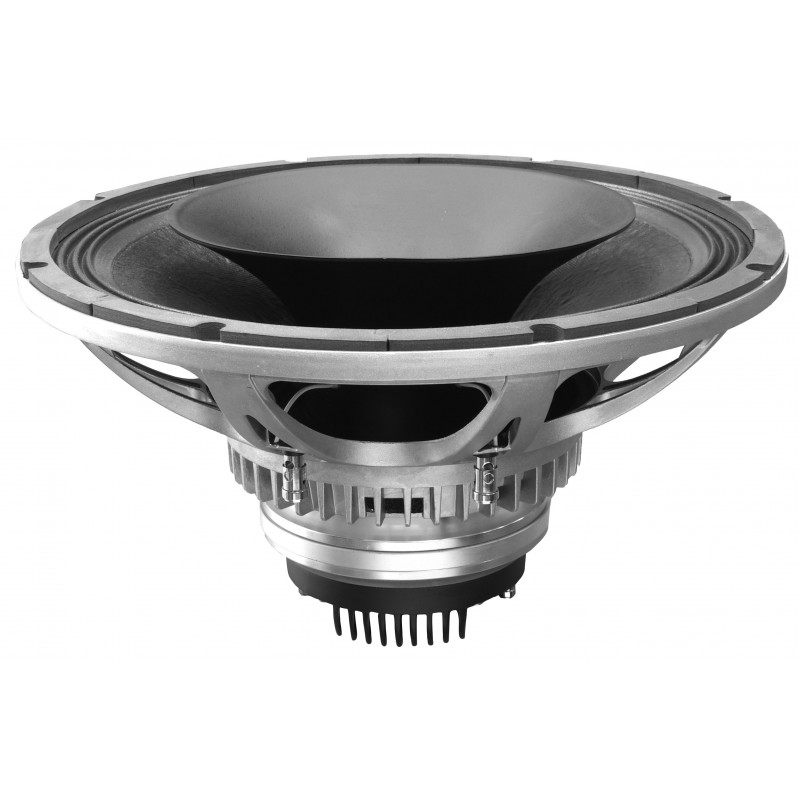

Description: The 15HCX3572 is a 15" / 1.4" coaxial transducer designed for use in compact reflex enclosures and stage monitors with a nominal dispersion of 80x60 degrees.
The low profile, smooth curvilinear LF cone provides smooth response within its intended frequency range and water prove protective coating, allowing application in a wide range of environments. The state-of-the-art 88 mm (3.5 in) LF voice coil has Glassfiber former, which together with high temperature resistant resin ensure high reliability by high power.
A triple aluminium demodulating rings on the magnet structure reduce distortion and inductance and improve transient response.
The neodymium 1.4" exit compression driver adopted is our ND72CT model.
The HF driver diaphragm assembly, using cotton composite dome this together with phasing plug improve linearity of frequency response in high end.
The HF magnet structure has cooper ring on the pole piece, which reduces the inductance figure of frequencies above 10 kHz, improving phase and impedance linearisation. This ensures extremely high SPL in the high end of the frequency response.
388 mm (15 in)
LF 8 Ohm /HF 16 Ohm
5.97 Ohm
50 - 16000 Hz
80x60 deg
Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz
46.28 Hz
11.62
0.35
0.34
140.68 L
80.77 g
5.30 Ohms
829 cm2
± 7.25 mm
0.1464 mm/N
18.81 T.m
0.573mH
1. AES standard. Power is calculated on rated minimum impedance.
Measurement is in 60 L box enclosure tuned 70 Hz using a 40-400 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.
* Copper Clad Aluminium Wire
* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

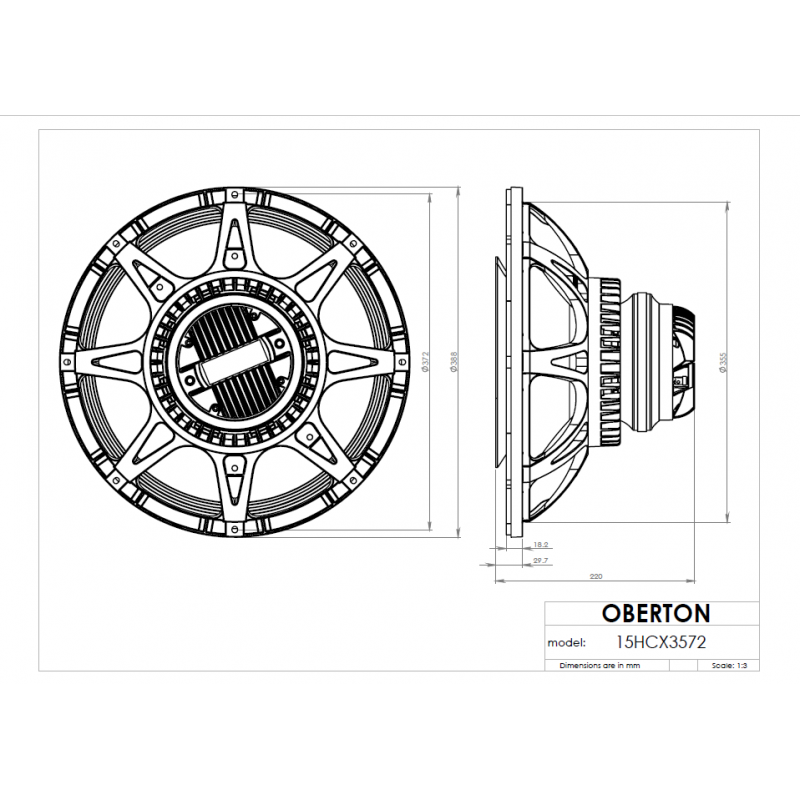

388 mm (15 in)
220 mm
355 mm
370/372 mm
8 eliptic 7x8 mm
7.05 kg
