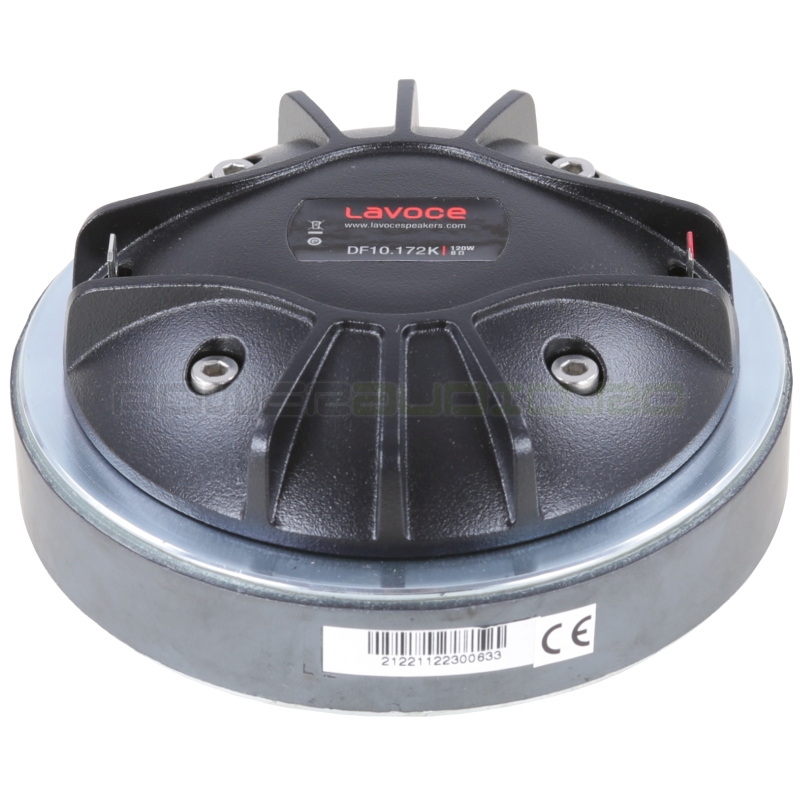

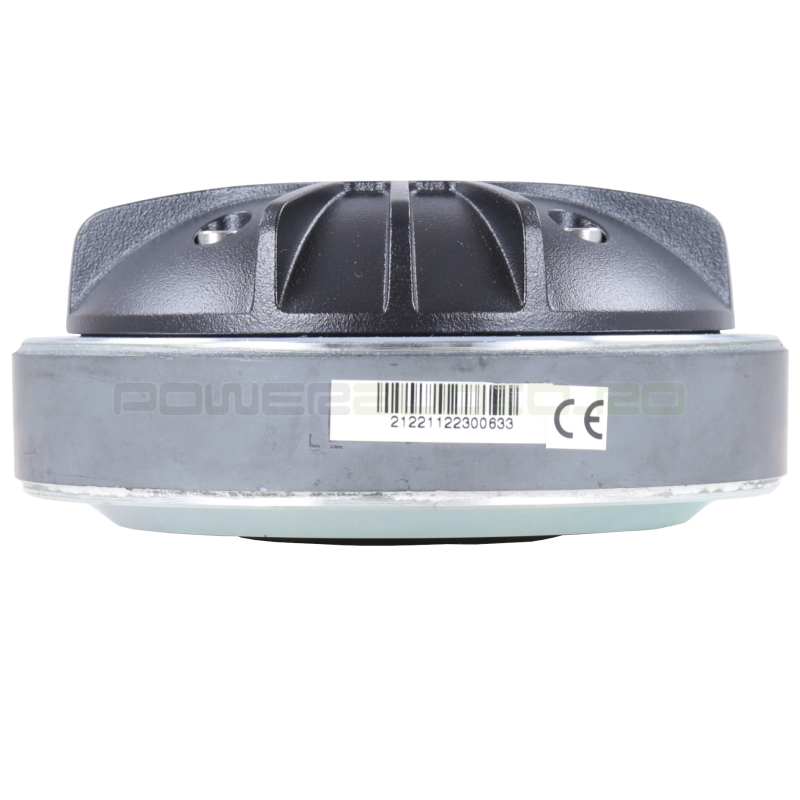

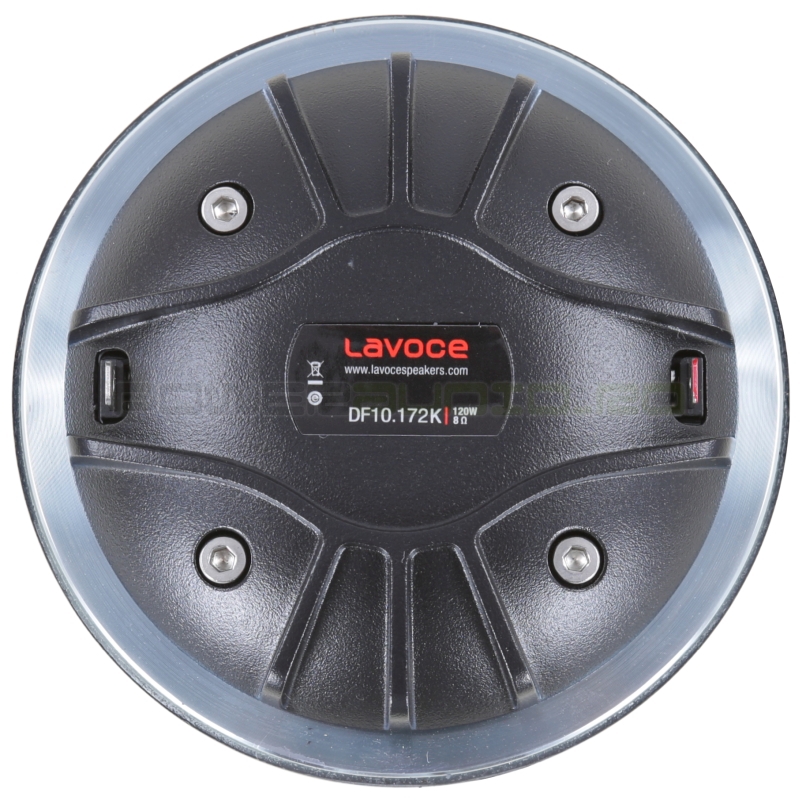

Lavoce DF10.172K

Lavoce DF10.172K - 1" 60W 8 Ohm Compression Driver

Key features

- 108,5 dB/SPL SENSITIVITY
- 120 W PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM
- 1000 - 20000 Hz FREQUENCY RANGE
- POLYIMIDE DIAPHRAGM - NEXT GENERATION HF DESIGN

Technical specifications

    Throat Diameter: 25.4 mm (1 in)
    Impedance: 8 Ohm
    Minimum Impedance: 7.3 Ohm
    AES Power: 60 W
    Program Power: 120 W
    Sensitivity: 108.5 dB
    Frequency Range: 1000 - 20000 Hz
    Voice coil diameter: 44,4mm (1.7in)
    Voice Coil Material: Edgewound CCA
    Voice Coil Former: Kapton
    Voice Coil Inductance: 0.08 mH
    Diaphragm Material: Polyimide
    Surround Material: Polyimide. vented
    Magnet Material: Ferrite
    Magnet Diameter: 114 mm (4.5 in)
    Flux Density: 1.75 T
    Driver Displacement Volume: 0.4 l (0.01 ft3)
    Recommended Crossover: 1.6 kHz

Shipping Information

    Multipack weight: 17.2 kg (3.7lb)
    Multipack size W x D x H: 483 x 448 x 96 mm (19 x 17.6 x 3.8in)
    Net weight: 1.7 kg (3.7lb)
    Multipack Quantity: 12

NOTES

1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
